Fike Fire Alarm Relay with 24V DC Coil and 8A C/O Contacts (600-0097)
SKU
600-0097
£12.77
£10.64

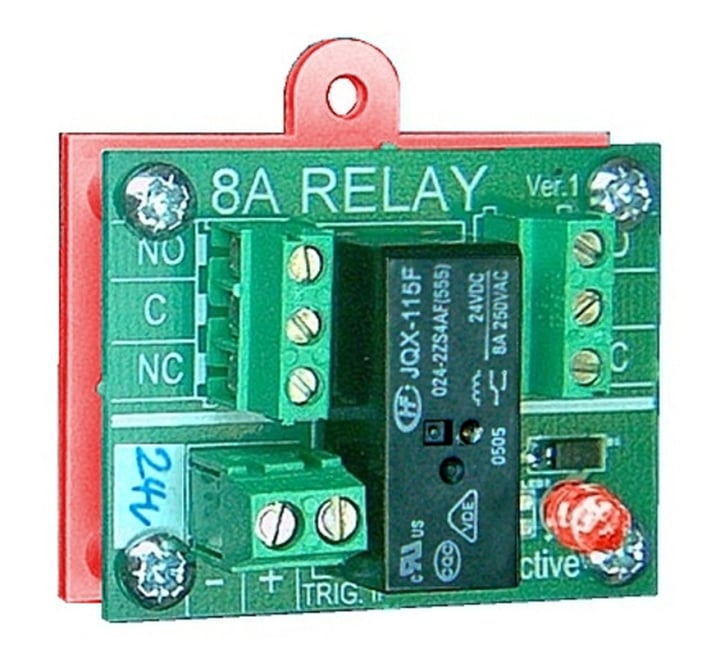

The Fike 600-0097 is a polarised relay for fire alarm applications with a 24V DC coil and 8A C/O contacts.
In Stock
Product Details for Fike Fire Alarm Relay with 24V DC Coil and 8A C/O Contacts (600-0097)
The Fike 600-0097 relay is designed specifically for 24VDC applications, particularly in fire system interfacing. With a built-in diode in series with the coil, it facilitates easy connection to bell circuits utilising EOL resistors. This compact power relay features two sets of contacts, each capable of switching up to 8 amps. Additionally, it includes an LED indicator to visually confirm the active position of the contacts. Installation is simple, requiring at least one single screw (provided) for secure mounting within a suitable enclosure.
Key Features of the 600-0097 |
|---|
|
> Polarised fire relay
> 24V DC coil > 8A C/O contacts |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | 600-0097 |
| Product Series | Fike Spares |
| Primary Power Source | 24V DC |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Fike Fire Alarm Relay with 24V DC Coil and 8A C/O Contacts (600-0097)
No questions yet. Be the first to ask the question!
Product Specification for Fike Fire Alarm Relay with 24V DC Coil and 8A C/O Contacts (600-0097)
| Nominal Input Voltage | 24V DC |
|---|---|
| Temperature Range | -40 to +70°C |
| Operational Current | 18mA @ 24V |
| Coil Power | 0.4W |
| Drop Out Voltage | 3.5V DC |
| Output Contact Rating | Double pole - change over contacts 230V AC 8A max, 2000V A |
| Contact Material | Silver alloy |
| Electrical Life | 100,000 operations at rated current |
| Dimensions | 52 x 48 x 30 mm |
