Fike Fire Alarm Relay with 230V AC Coil and 8A C/O Contacts (600-0098)
SKU
600-0098
£16.09
£13.41
Fike Fire Alarm Relay with 230V AC Coil and 8A C/O Contacts (600-0098)
In Stock
Product Details for Fike Fire Alarm Relay with 230V AC Coil and 8A C/O Contacts (600-0098)

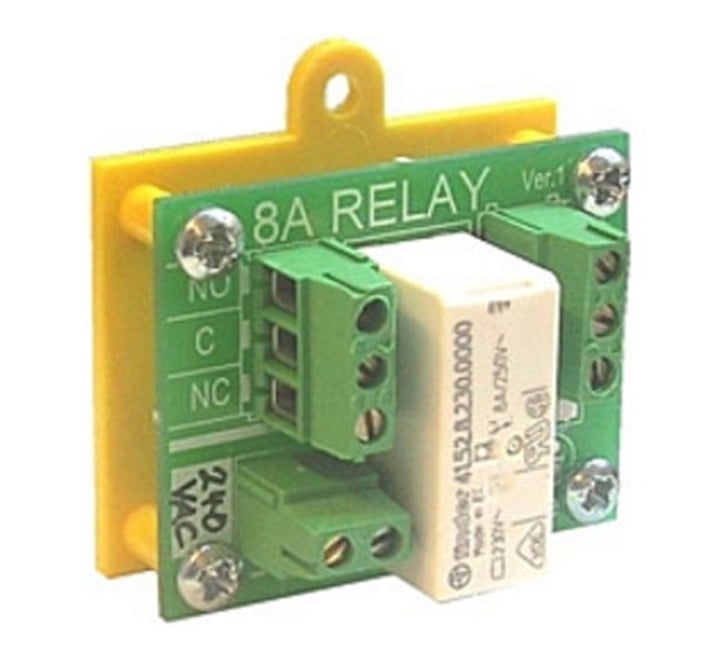

The Fike 600-0098 relay is specifically designed for interfacing general mains voltage to lower voltage applications. It is ideal for scenarios such as connecting existing 230V door release circuits to lower voltage release units.
This compact power relay features two sets of contacts, each capable of switching up to 8 amps. Installation is simple, requiring at least one provided screw for secure mounting within a suitable enclosure.
As mains voltages are involved, it is crucial to follow the latest IEEE electrical wiring practices during installation. It is recommended to have a competent person handle the installation of this unit.
Key Features of the 600-0098 |
|---|
|
> Polarised fire relay
> 230V AC coil > 8A C/O contacts |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | 600-0098 |
| Product Series | Fike Spares |
| Primary Power Source | Mains Powered (230V) |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Fike Fire Alarm Relay with 230V AC Coil and 8A C/O Contacts (600-0098)
No questions yet. Be the first to ask the question!
Product Specification for Fike Fire Alarm Relay with 230V AC Coil and 8A C/O Contacts (600-0098)
| Nominal Input Voltage | 230V AC (50/60Hz)(172 to 345V AC) |
|---|---|
| Temperature Range | -40 to +70°C |
| Operational Current | 3.2mA |
| Coil Power | 0.75W |
| Coil Resistance | 32,500 Ω |
| Output Contact Rating | Double pole - change over contacts 230V AC 8A max, 2000V A |
| Contact Material | Silver alloy |
| Electrical Life | 100,000 operations at rated current |
| Dimensions | 52 x 48 x 30 mm |
