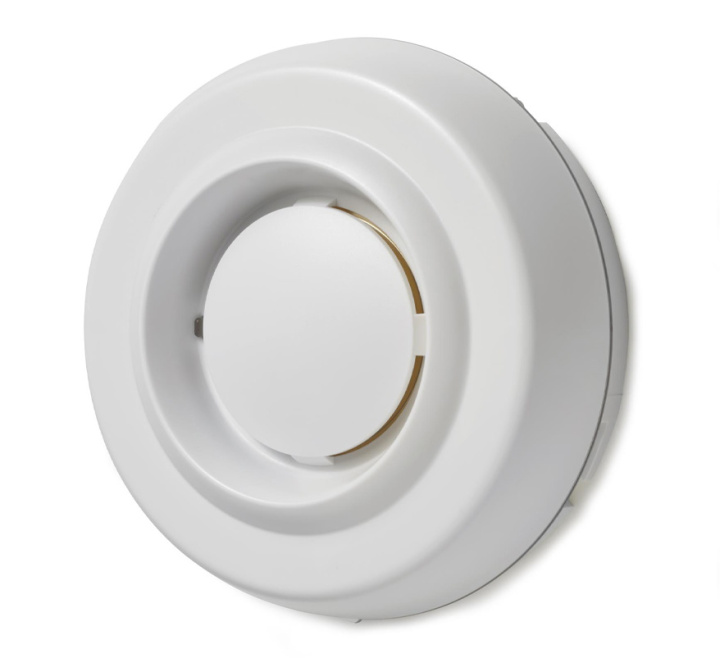

Siemens FDS364-W Cerberus 360 Wall Sounder (White) (No Base) (S54364-F102-A1)
SKU
S54364-F102-A1
£46.51
£38.76
Siemens FDS364-W Cerberus 360 Wall Sounder (White) (No Base) (S54364-F102-A1)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Siemens FDS364-W Cerberus 360 Wall Sounder (White) (No Base) (S54364-F102-A1)
The Siemens FDS364-W is an addressable wall sounder which provides an alarm in an addressed fire detection system (Cerberus FC360 panels only) and activates an acoustic alarm signal in the event of a fire alarm. It is mounted on the wall e. g. along escape routes, corridors, staircases and offices. The devices are synchronized.
Each device has 16 tones ex-factory. All devices have their own device addresses and can be configured independently of each other.
Supply and communication via C-NET, no auxiliary power needed. The device automatically monitors its acoustic function.
The base must be ordered separately.
Key Features of the S54364-F102-A1 |
|---|
|
> Addressed (C‑NET)
> Meets the requirements of the EN 54‑3 standard > Supply and communication via C‑NET > Max. 16 tones to choose from, 2 programmable events: 'Warning (ALERT)' and 'Evacuation (EVAC)' > Sound levels up to max. 99 dBA > Integrated line separator > The device automatically monitors its acoustic function > Tool-free connection to the detector line. Possible conductor cross-sections to 2.5 mm2 > Max. protection category achievable: IP65 for use with base deep FDB227‑x and M20 x 1.5 metal cable gland with M20 x 1.5 counter nut > Synchronization of acoustic signals > Protected electronics and high-quality components > This device is functional exclusively together with a Cerberus FIT fire control panel FC360 |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDS364-W |
| Product Series | Cerberus 360 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDS364-W Cerberus 360 Wall Sounder (White) (No Base) (S54364-F102-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDS364-W Cerberus 360 Wall Sounder (White) (No Base) (S54364-F102-A1)
| Product: | Siemens Sounder |
| Product code: | S54364-F102-A1 |
| Dimensions: |
Ø:116mm x D:42.7mm |
| Standard: | EN 54-3 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Operating current: | 4 mA (sound activated) |
| Quiescent current: | 250 μA |
| Sound intensity: |
75 - 99 dB(A) |
| Cable capacity: | 0.2 - 2.5mm2 |
| Operating temperature: | -25 to +70 °C |
| Storage temperature: | -30 to +75 °C |
| Protection category: | IP33C; IP65 with base deep |
| Relative humidity: | ≤95 % rel. |
| No. of sounds: |
16 |
| System compatibility: |
C-NET -> FC360
|
