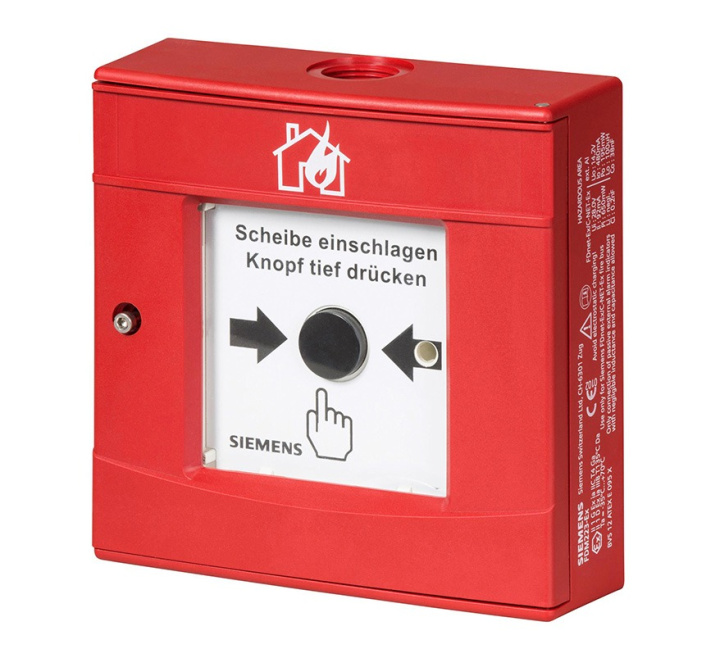

Siemens FDM223-Ex Cerberus PRO Manual Call Point for Potentially Explosive Areas (S54329-F5-A1)
SKU
S54329-F5-A1
£257.74
£214.78
Siemens FDM223-Ex Cerberus PRO Manual Call Point for Potentially Explosive Areas (S54329-F5-A1)
- Buy 10 for £252.68 £210.57 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDM223-Ex Cerberus PRO Manual Call Point for Potentially Explosive Areas (S54329-F5-A1)
Siemens FDM223-EX Manual Call Point, addressed (FDnet-Ex / C-NET-Ex), for potentially explosive areas.
For addressed Sinteso FS20 and Cerberus PRO FS720 fire detection systems. With indirect activation. Two-wire installation.
Key Features of the S54329-F5-A1 |
|---|
|
> Addressed (FDnet-Ex/C-NET-Ex), for areas at risk of explosion
> Manual call point for addressed Sinteso FS20 and Cerberus PRO FS720 fire detection system > Manual call point FDM223-Ex with indirect activation > Two-wire installation > Communication via FDnet-Ex/C-NET-Ex (addressed individually) > Protected electronics > Built-in alarm indicator (LED) > Two-color LED for alarm and test |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDM223-EX |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDM223-Ex Cerberus PRO Manual Call Point for Potentially Explosive Areas (S54329-F5-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDM223-Ex Cerberus PRO Manual Call Point for Potentially Explosive Areas (S54329-F5-A1)
| Product: | Siemens Manual Call Point for potentially explosive areas |
| Product code: | S54329-F5-A1 |
| Dimensions: |
W:134mm x H:134mm x D:43mm |
| Standard: | EN 54-11 |
| Ex-classification: | IECEx scheme: Ex ia IIC T4 Ga, Ta = -35 °C...+70 °C Ex ia IIIB T135 °C Da, Ta = -35 °C...+70 °C 94/9/EC (ATEX Directive): II 1 G Ex ia IIC T4 Ga, Ta = -35 °C...+70 °C II 1 D Ex ia IIIB T135 °C Da, Ta = -35 °C...+70 °C |
| Operating voltage: | DC 13 - 28V |
| Operating current (quiescent): | 200 µA |
| Operating temperature: | -25 to +70 °C |
| Protection category: | IP44; IP66 with protection seal |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Ext. alarm indicator: |
Max. 1 |
| Storage temperature: | -35 to +75 °C |
| System compatibility: | FDnet > FS20, AlgoRex, SIGMASYS C-NET > FS720 |
| Communication protocol: | FDnet-Ex/C-NET-Ex |
| Colour: | Flame red, ~RAL 3000 |
