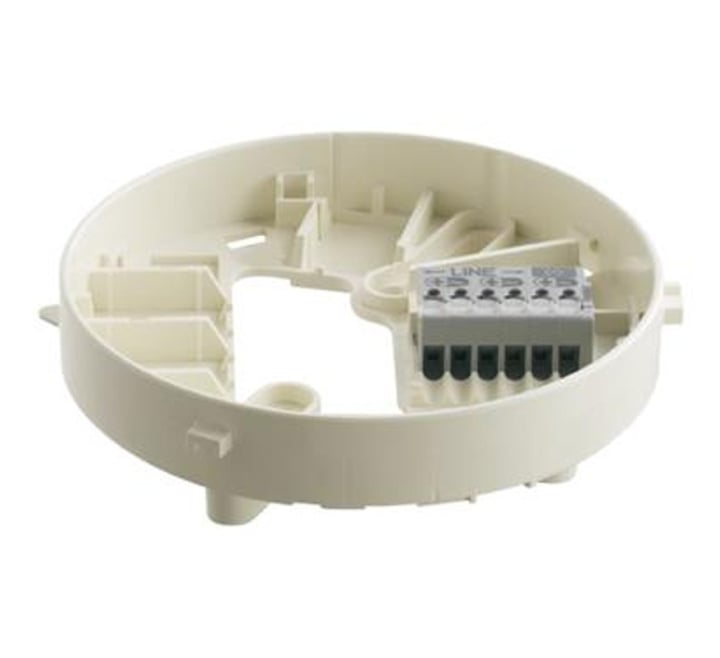

Siemens FDB201 Detector Base (Collective) - for Conventional Use (A5Q00003814)
SKU
A5Q00003814
£5.88
£4.90
Siemens FDB201 Detector Base (Collective) - for Conventional Use (A5Q00003814)
Limited Stock
Product Details for Siemens FDB201 Detector Base (Collective) - for Conventional Use (A5Q00003814)
Siemens FDB201 Detector Base - made from impact-proof and scratch-resistant synthetic material. Large opening in the detector base permits the reuse of existing boreholes from older systems.
Screwless connection terminals 'grey'. Space for auxiliary terminals as micro terminals 0,5 mm^2 or connection terminals 2,5 mm^2.
For fire detectors with collective signal processing.
For recess supply wiring. For surface supply wiring, cable diameter up to 6 mm.
Key Features of the A5Q00003814 |
|---|
|
> Impact-proof and scratch-resistant synthetic material
> Large opening in the detector base permits reuse of existing boreholes from older systems > Detector base with stilts for fire detectors with collective signal processing > 'Grey' connection terminals, 0.2 - 1.5 mm^2 conductor cross-section > For recess-mounted cable entry > For surface-mounted cable entry up to a cable diameter of 6 mm |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDB201 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDB201 Detector Base (Collective) - for Conventional Use (A5Q00003814)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDB201 Detector Base (Collective) - for Conventional Use (A5Q00003814)
| Product: | Siemens Detector Base (collective) |
| Product code: | A5Q00003814 |
| Dimensions: |
Dia:100mm x D:22mm |
| Cable capacity: |
0.2 - 1.5 mm2 |
| Colour: | Pure White (RAL 9010) |
