Siemens FDAI92-Ex Cerberus PRO LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F4-A1)
SKU
S54370-F4-A1
£21.17 £17.64
Siemens FDAI92-Ex Cerberus PRO LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F4-A1)
Product Details for Siemens FDAI92-Ex Cerberus PRO LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F4-A1)

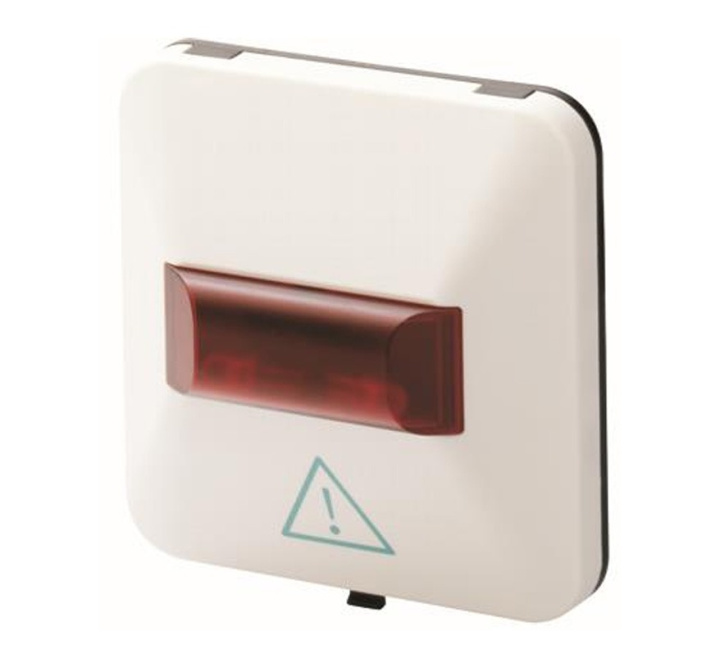

The Siemens FDAI92-Ex Alarm Indicator is connected in parallel to automatic fire detectors in order to indicate quickly the source of an alarm signal from detectors that are not easily accessible or visible.
The alarm indicator contains an indicator lamp unit with one or two LEDs. They light up as soon as a connected fire detector gives an alarm.
Screwless connection terminals.
The alarm indicator is suitable for wall mounting.
Key Features of the S54370-F4-A1 |
|---|
| > for Explosion-hazard areas (Zones 1 & 2) > Connected in parallel to automatic fire detectors > Indicates quickly the source of an alarm signal from detectors that are not easily accessible or visible > Contains an indicator lamp unit with one or two LEDs > LEDs light up as soon as a connected fire detector gives an alarm > Screwless connection terminals > Suitable for wall mounting. > Modern flat design > Non-screw terminals |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDAI92-EX |
| Product Range / Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDAI92-Ex Cerberus PRO LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F4-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDAI92-Ex Cerberus PRO LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F4-A1)
| Product: | Siemens FDA192-Ex Alarm Indicator |
| Product code: | S54370-F4-A1 |
| Dimensions: | W:85mm x H:85mm x D:28mm |
| Operating voltage: | DC 4 - 5 V |
| Operating current: | 35 mA (continuous) |
| Operating temperature: | -25 to +80 °C |
| Relative humidity: | <95% rel. |
| Ex-classification: | Ex ib IIC T6 (Ta ≤ 55 °C) 'simple apparatus' acc. to EN 50020 § 5.4: Ex ib IIC T5 (Ta ≤70 °C) |
| Terminals: | Max. 1.5mm² |
| IP rating: | IP40 |
| Colour: | Pure white (RAL 9010) |
| Further accessories: | DJZ1193 Housing (IP65) |
