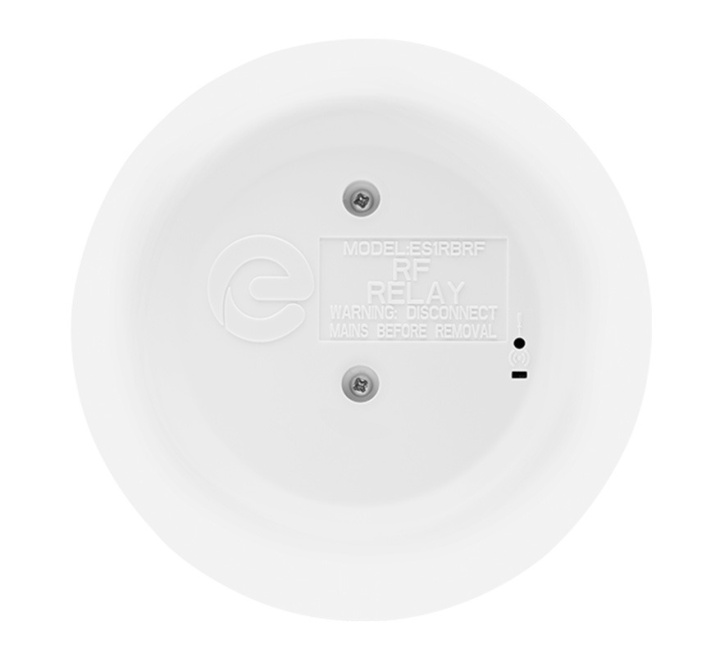

Espire Mains Powered RF Relay Base (ES1RBRF)
Product Details for Espire Mains Powered RF Relay Base (ES1RBRF)
The Espire ES1RBRF is a 230V AC mains-powered relay base featuring a non-replaceable rechargeable 3V lithium backup battery. The unit is designed to interface Espire mains-powered safety alarms with external auxiliary systems—such as fire panels, shut-off valves, or telecare systems—via volt-free SPDT contact switching (up to 250V AC, 8A load).
Equipped with an integrated RF-Link receiver operating at 868MHz, the base enables wireless interlinking with up to 30 compatible Espire devices across an operational range of up to 30 meters indoors and 100 meters in open field. It also retains hardwired interconnect capability for up to 28 units.
Constructed from flame-retardant UL94-V0 rated UV-stabilised ABS measuring 142mm (diameter) x 36.5mm (height), the housing includes multiple cable entry knockouts for surface wiring. In the event of a mains power failure, the internal rechargeable backup battery maintains standby operational power and sustains full relay switching function for up to 6 hours with 10 activation operations.
Key Features of the ES1RBRF |
|---|
|
> Mains powered
> Rechargeable battery > Compatible with RF-Link enabled Espire alarms > Contains an RF-Link receiver that triggers the relay upon activation > Volt-free contact switch during alarm activation > Multiple knockout entries |
| Brand | Espire |
|---|---|
| Manufacturer Part No. | ES1RBRF |
| Warranty | 5 Years |
| Colour | White |
| Interlink Options | Radio-Interlink (RF) & Hard-wire Interlink |
| Primary Power Source | Mains Powered (230V) |
FAQ’s for Espire Mains Powered RF Relay Base (ES1RBRF)
Product Specification for Espire Mains Powered RF Relay Base (ES1RBRF)
| Product dimensions: | ø142mm x 36.5mm |
| Colour: | White |
| Materials: | UL94-V0 rated UV stabilised ABS |
| Mounting: | Ceiling or wall |
| Indication: | 1 LED; Green - power, Blue - RF pairing, Red - RF & low battery |
| Supply, power & backup: | Supply type: Mains AC with battery backup Supply voltage: 230 VAC Frequency: 50Hz Cable size (mm2): 0.75 - 2.5 Relay voltage - max: 250 AC Max. switchable load: 8A Relay/contact type: Volt free SPDT Power consumption: 3W max., 0.38W standby |
| Battery: | Backup: Non replaceable rechargeable Type: 3V lithium (x2) Size: VL2330 Chemistry: Lithium |
| Interconnectability: | Wired interconnect supported: Yes Max. interconnect wiring distance: 300m RF LINK supported: Built-in RF-Link frequency: 868.3MHz RF-Link range (open field): 100m Max. supported wired & RF-LINK interconnected devices: 28 |
| Environment: | Operating temp: 0 to +40oC Relative humidity: 95% (non condensing) |
| Compatible products: | RF-Link supported Espire products Interconnect supported Espire products |
| Features: | If mains power is lost, the backup battery can power the relay base for up to 6 hours and the relay can switch 10 times. Contains an RF-Link receiver that triggers the relay upon activation |
| Warranty: | 5 years |
| Weight: | 0.19kg |
