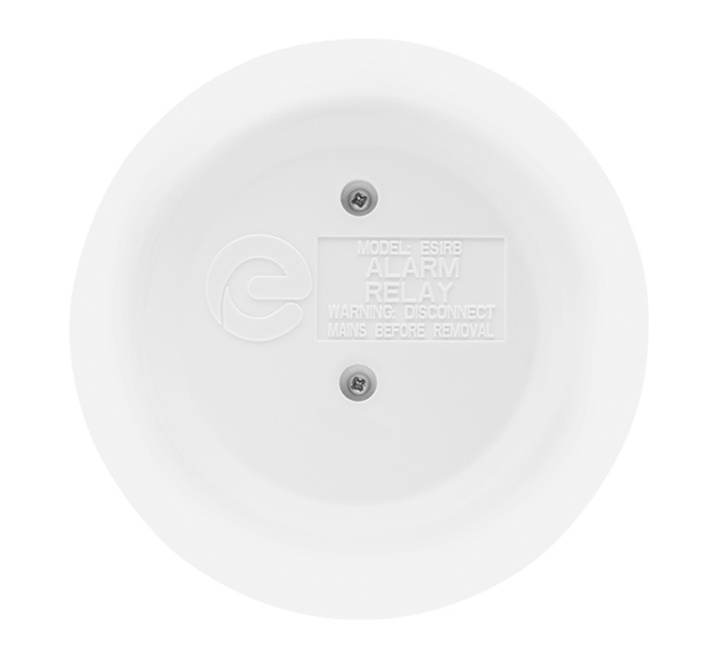

Espire Mains Powered Relay Base with Backup Battery (ES1RB)
Product Details for Espire Mains Powered Relay Base with Backup Battery (ES1RB)
The Espire ES1RB is a 230V mains-powered relay base designed to expand the integration capabilities of compatible Espire hardwired fire and safety alarms. Operating on an auxiliary mains supply, the unit provides a volt-free relay output (changeover contacts rated 230V AC / 8A) that triggers upon alarm activation, allowing domestic alarm networks to interface directly with third-party systems such as access control, shut-off valves, ward-call systems, or auxiliary visual beacons.
Featuring an internal sealed rechargeable battery backup, the base maintains system connectivity and switching functionality during primary power failures. The low-profile housing is designed for surface mounting with convenient knockout cable entry points and terminal connections for fast wiring integration.
Key Features of the ES1RB |
|---|
|
> Mains Powered
> Rechargeable Battery > Multiple knockout entries > Compatible with Hardwired Interconnected Espire Alarms > Volt-Free Contact Switch During Alarm Activation > Supports Espire Alarms to be mounted on top > Comes supplied with cover when not used to mount Espire alarms |
| Brand | Espire |
|---|---|
| Manufacturer Part No. | ES1RB |
| Warranty | 5 Years |
| Colour | White |
| Primary Power Source | Mains Powered (230V) |
FAQ’s for Espire Mains Powered Relay Base with Backup Battery (ES1RB)
Product Specification for Espire Mains Powered Relay Base with Backup Battery (ES1RB)
| Materials | UL94-V0 rated UV stabilised ABS |
| Supply Type | Mains AC with battery backup |
| Supply Voltage (V AC) | 230 |
| Battery Backup | Non-replaceable Rechargeable 3V Lithium |
| Wired Interconnect Supported | Yes |
| RF-Link Supported | No |
| Max. Interlinked Devices | 28 |
| Dimensions | ø142 x 36.5 |
