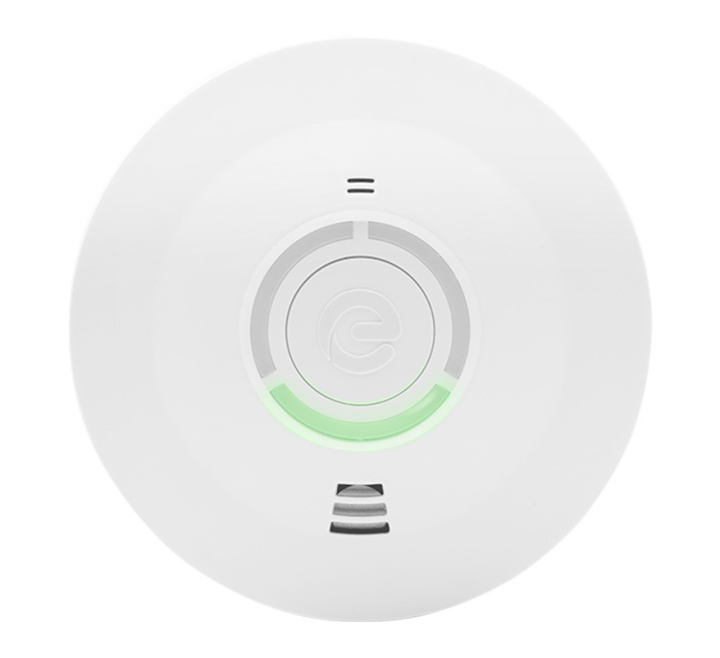

Espire Mains Powered Optical Smoke Alarm with 9V Backup Battery (ES1SRV)
SKU
ES1SRV
£21.11
£17.59
Espire Mains Powered Optical Smoke Alarm with 9V Backup Battery (ES1SRV)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Espire Mains Powered Optical Smoke Alarm with 9V Backup Battery (ES1SRV)
The Espire ES1SRV is a 230V AC mains-powered optical smoke alarm with a 9V replaceable battery backup. Certified to EN 14604 by LPCB standards, the unit is designed for Grade D2 residential installations and supports hardwired interconnection across compatible alarm networks.
Operating at a standby power consumption of 0.2W, it features an anti-tamper lock-in wiring base for secure termination, automatic sensor self-testing, and dynamic ambient light sensing that auto-dims the power LED for night modes.
The 132mm x 52mm unit includes a 24-hour activation memory function, a 10-minute alarm hush control, and a 12-hour fault silence feature.
Key Features of the ES1SRV |
|---|
|
> Mains powered, 9V replaceable battery
> Auto Sensor Test - Alarm self-checks sensor > Auto Dimming Power LED - Day mode and night mode (not intrusive to sleep) > Memory Function - Alarm stores an activation for 24 hours > Hush Function - Silences an alarm activation for 10 minutes > Anti-Tamper Lock-In Wiring Base > Grade D2 installations |
| Brand | Espire |
|---|---|
| Manufacturer Part No. | ES1SRV |
| Warranty | 5 Years |
| Colour | White |
| Interlink Options | Hard-wire Interlink (RF Upgrade Available) |
| Detectable Medium | Smoke |
| Sensor Type | Optical |
| Primary Power Source | Mains Powered (230V) |
| British Standard Grade (BS5839-6) | Grade D2 (Mains Powered with Replaceable Back-up Battery) |
| Approvals | LPCB |
| Regional Compliances | 2022 Scottish Legislation Compliant, 2022 Welsh Legislation Compliant |
Write Your Own Review
FAQ’s for Espire Mains Powered Optical Smoke Alarm with 9V Backup Battery (ES1SRV)
No questions yet. Be the first to ask the question!
Product Specification for Espire Mains Powered Optical Smoke Alarm with 9V Backup Battery (ES1SRV)
| Product dimensions: | ø132mm x 52mm |
| Colour: | White |
| Materials: | UL94-V0 rated UV stabilised ABS |
| Mounting: | Ceiling or wall |
| Recommended installation locations: | Living areas, bedrooms, escape routes & stairways |
| Indication: | 3 LEDs; Green - power, Yellow - fault, Red - fire |
| Auto dim power LED: | Day and night mode (non intrusive) |
| Manual test button: | Checks sensor, electronics & sounder |
| Technical: | Sensor type: Optical Smoke Sounder output: 85dB @ 3m Hush function: Alarm hush - 10mins, Fault hush - 12hrs Installation grade: D2 |
| Supply, power & backup: | Supply type: Mains AC with battery backup Supply voltage: 230 VAC Frequency: 50Hz Power consumption: 0.2W (standby), 1W (max. |
| Battery: | Backup: Replaceable battery Type: 9V alkaline Size: PP3 Chemistry: Alkaline |
| Interconnectability: | Wired interconnect supported: Yes Max. interconnect wiring distance: 300m RF LINK supported: No Max. supported wired & RF-LINK interconnected devices: 28 |
| Environment: | Operating temp: 0 - +40oC Relative humidity: 95% (non condensing) |
| Accessories: | ES1MP Alarm Masking Plate ES1MTW: Alarm Multi Tool (2 pack) White ES1MTB: Alarm Multi Tool (2 pack) Black |
| Features: | Dust compensation, Insect mesh, Lock-in wiring base, 24 hour memory function, Clear LED indication status |
| Warranty: | 5 years |
| Weight: | 0.25kg |
