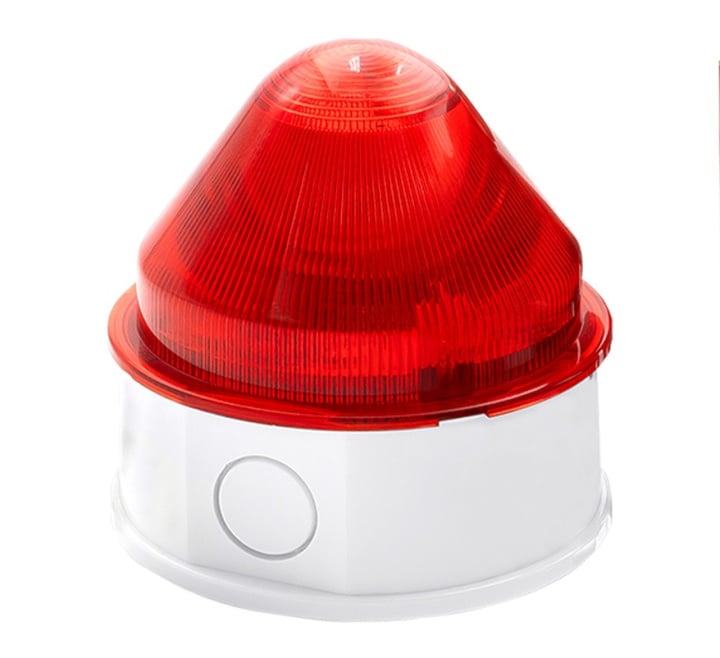

Espire Mains Powered IP65 Sounder Strobe (Red) (ES1ST)
Product Details for Espire Mains Powered IP65 Sounder Strobe (Red) (ES1ST)
The Espire ES1ST is a surface-mounted, 100-240V AC mains-powered combination sounder and high-intensity strobe unit. Engineered as an auxiliary visual and audible warning device for Espire safety installations, the ES1ST connects directly to an ES1RB or ES1RBRF relay base to provide localized alarm notification.
The internal sounder module delivers up to 85dB sound pressure output at 1 metre (Tone D) across four user-selectable tone configurations, with a visual-only operation mode to disable sounder output where necessary. Visual indication is provided via a red high-visibility lens illuminated by internal white LEDs operating at a 7Hz flash rate.
Housed in a weather-resistant polycarbonate and ABS enclosure rated to IP65, the unit features double-insulated wiring terminals (0.5mm2 to 2.5mm2 cable range) and multiple knockouts (2x 20mm side entry, 2x 10mm rear entry) for flexible surface conduits.
Key Features of the ES1ST |
|---|
|
> Mains powered
> Red strobe with selectable sounder > 4 sounder modes > Up to 83dB output > 2 x 20mm side entry & 2 x 10mm rear entry knockouts > IP65 rating |
| Brand | Espire |
|---|---|
| Manufacturer Part No. | ES1ST |
| Warranty | 5 Years |
| Colour | Red |
| Primary Power Source | Mains Powered (230V) |
FAQ’s for Espire Mains Powered IP65 Sounder Strobe (Red) (ES1ST)
Product Specification for Espire Mains Powered IP65 Sounder Strobe (Red) (ES1ST)
| Product dimensions: | ø90mm x 86mm |
| Colour: | White |
| Materials: | Polycarbonate & ABS |
| Mounting: | Surface |
| Technical: | Sounder output: 85dB @ 1m (Tone D) No. of available tones: 4 Strobe colour: Red Flash rate: 7Hz |
| Supply, Power & Backup: | Supply type: Mains only Supply voltage: 100 - 240 VAC Frequency: 50/60 Hz Cable size: 0.5 - 2.5mm2 |
| Environment: | Ingress protection: IP65 Operating temperature: -20oC to +45oC Relatively humidity resistance: 85% |
| Features: | Requires ES1RB/ES1RBRF to operate with Espire alarms, Compatible with Espire alarms, Mains supply, 4 selectable tones, Strobe with selectable sounder, IP65 rated |
| Warranty: | 5 years |
| Weight: | 0.12kg |
