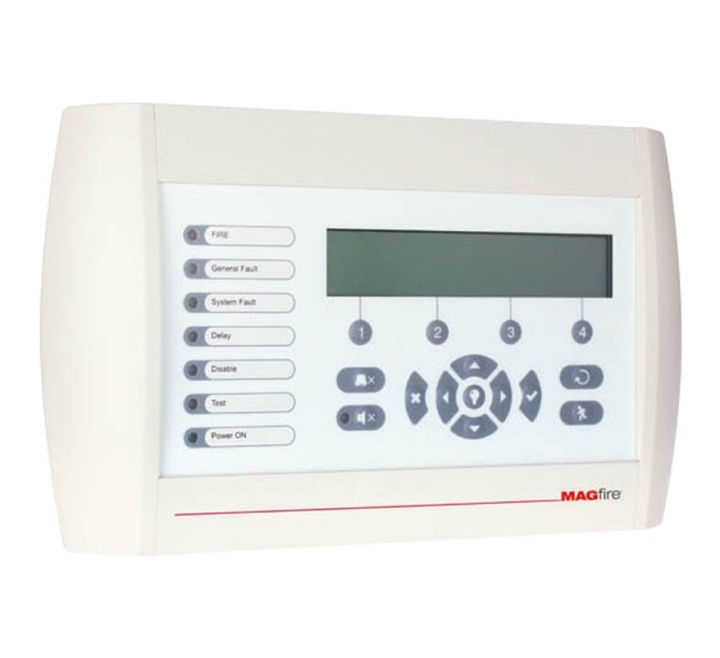

ESP MAGPRO Addressable Fire Alarm Repeater Panel (White) (MAGPRO-REP)

The ESP MAGPRO-REP is an addressable repeater panel designed to provide full remote status display and control for the MAGPRO series of fire alarm systems. It's the ideal solution for larger or complex buildings, allowing system information to be clearly displayed and managed from one or more secondary locations, such as security offices, reception areas, or building entrances.

Designed for seamless integration, the MAGPRO-REP connects to the fire panel network via the MAGPRO-NIC network interface card (required for each panel and repeater on the network). It operates on a robust RS-485 ring-type network, allowing up to 32 MAGPRO panels and repeaters to be connected in total. This repeater panel features its own 10,000 event log, ensuring that a comprehensive history of events is accessible directly from the remote unit.

Housed in a slim, wall-mounted ABS enclosure, the MAGPRO-REP requires an external 24VDC power supply. It is fully compatible with both the MAGPRO16 (firmware Rev 2.8 or higher) and MAGPRO96 addressable fire panels.
