ESP Rekor IP PoE 2MP 4-Channel 4 Dome Camera Kit 1TB Grey (RC24KD4G)
SKU
RC24KD4G
£497.15
£414.29
ESP Rekor IP 24/7 IP PoE 2MP 4-Channel, 4 x Camera Dome Kit, Grey, 1TB (RC24KD4G)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Rekor IP PoE 2MP 4-Channel 4 Dome Camera Kit 1TB Grey (RC24KD4G)

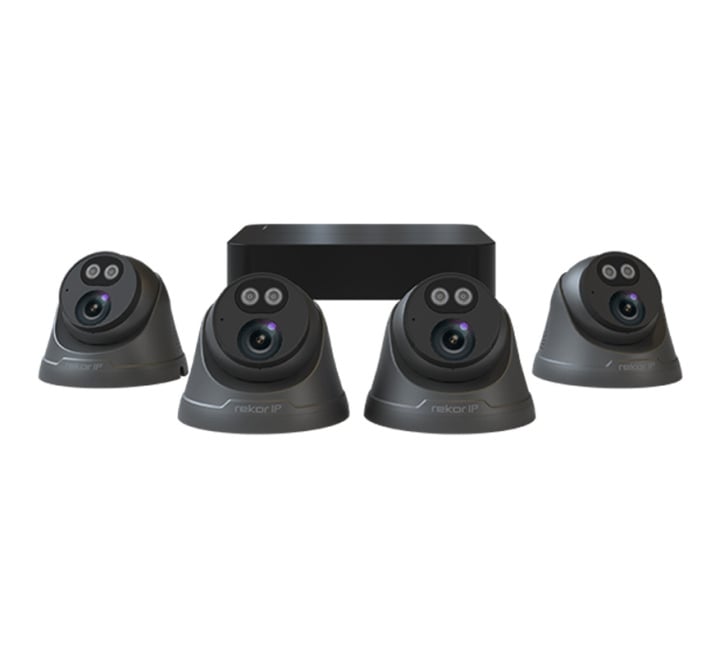

The ESP RC24KD4G is an IP PoE CCTV system in a box. The kit comprises 1 x 4-Channel Network Video Recorder (NVR) with an internal HDD of 1TB and 4 x 2MP weatherproof dome cameras in a grey finish. Includes cables and system power supply.
Key Features of the RC24KD4G |
|---|
|
> Complete with NVR, Weatherproof IP Cameras, Cable & System Power Supply
> HD 2MP Resolution Viewing and Recording > 4 Channel IP PoE NVR > White LED and IR Function for 24/7 Colour Images > Intelligent Function, with Perimeter Intrusion Detection & Line Crossing Detection > Pre-Installed Surveillance Hard Drive > Remote Monitoring via APP (Android / IOS) or PC > Continuous / Scheduled / Motion Record Modes > USB Backup for Evidence Transfer > Up to 250m Cable Length per Channel |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | RC24KD4G |
Write Your Own Review
FAQ’s for ESP Rekor IP PoE 2MP 4-Channel 4 Dome Camera Kit 1TB Grey (RC24KD4G)
No questions yet. Be the first to ask the question!
Product Specification for ESP Rekor IP PoE 2MP 4-Channel 4 Dome Camera Kit 1TB Grey (RC24KD4G)
| Code: | RC24KD4G |
| Description: | ESP 4 Channel 1TB NVR 24/7 with 4 x 2MP Dome CCTV PoE Kit |
Component 1: 4 Channel HD 1TB Network Video Recorder (NVR) x 1 | |
| Dimensions: | 205mm x 205mm x 46mm |
| Operating voltage: | 48 VDC |
| Power consumption: | <9W mA |
| Display video output: | 1 x HDMI, 1 x VGA |
| Display split: | 1 & 4 |
| Display resolutions: | HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Sync playback: | 4 Channel |
| Backup mode: | USB2.0 devices |
| Internal HDD: | 1 TB (1 x SATA) |
| Recording bandwidth: | 64 Mbps |
| Video/Audio compression: | H.265/H.264 |
| Recording resolution: | 4K/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF |
| Network connection: | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Network functions: | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| PoE channels: | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB interface: | 2 x USB2.0 |
| Video input channels: | 4 |
| Audio output channels: | 1 RCA |
| Operating temperature: | -10 to +55°C |
| Relative humidity resistance: | ≤ 90% RH (non-condensing) |
| Weight: | 0.6 kg |
Component 2: 2.8mm 2MP Fixed 24/7 IP PoE Dome Camera x 4 | |
| Dimensions: | 118mm x 118mm x 96mm |
| Finish: | Grey |
| Sensor size: | 1/2.8” Progressive CMOS |
| Lens size: | 2.8mm |
| Effective pixels: | 1920 x 1080 |
| IR Distance: | 30m |
| White light range: | 30m |
| Day/night: | IR-Cut filter with Auto Switch (ICR) |
| Basic detection: | Cross line, Intrusion(based on human body detection), Motion Detection, Tampering Alarm, Audio Detection |
| Operating voltage: | 12 VDC |
| Power consumption: | <8W |
| Other power sources: | PoE (IEEE802.3af) |
| Lens type: | Fixed |
| Viewing angle (°): | 106.7 (H), 57.1 (V), 115.7 (D) |
| Auto Electronic Shutter (s): | Auto / Manual |
| Frames per second: | 30 fps (@1080p |
| Scanning system: | Progressive Scan CMOS |
| Speaker supported: | Yes |
| Microphone supported: | Yes |
| Reset key: | No |
| ONVIF compliant: | Yes; Profile S, Profile G, Profile T |
| Network functions: | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Ingress protection: | IP67 |
| Operating temperature: | -30 to +60°C |
| Weight: | 0.3 kg |
Component 3: 18.3m IP Cables x 4 | |
| Materials: | Solid Bare Copper Center Conductor Foam Polyethylene Dielectric PVC Jacket |
| Finish: | Black |
| Length: | 18.3m |
| Category: | CAT-5e |
| Cores: | Twisted 4-pair |
| Pre-wired: | Yes |
| Shielded: | Yes |
| Terminated connections: | RJ45 x 2 |
| Warranty: | 3 years |
| Supplied: | 4 Channel NVR PSU for NVR 2 x Dome Cameras Kit Cable for each camera |
| Compatible products: | RC228FDW: 2.8mm 2MP Dome Camera, White RC228FDG: 2.8mm 2MP Dome Camera, Grey RC228FBW: 2.8mm 2MP Bullet Camera, White RC228FBG: 2.8mm 2MP Bullet Camera, Grey |
| Accessories: | IPIN1POE: 1 Channel POE Injector IPSW4POE: 4 Channel POE Switch IPX100POE: PoE Extender CABIP10 : 10m CAT-5e External Use Data Cable CABIP20: 20m CAT-5e External Use Data Cable CABIP40: 40m CAT-5e External Use Data Cable CABIP80: 80m CAT-5e External Use Data Cable |
Component 4: 24/7 NVR Power Supply Unit x 1 | |
| Supply voltage: | 110 - 240 VAC |
| Output rating: | 48 VDC |
