Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
ESP Rekor IP PoE 2MP 4-Channel 2 Dome Camera Kit 1TB White (RC24KD2W)
SKU
RC24KD2W
ESP Rekor IP 24/7 IP PoE 2MP 4-Channel, 2x Dome Camera Kit, White, 1TB (RC24KD2W)
Alternative Products
Product Details for ESP Rekor IP PoE 2MP 4-Channel 2 Dome Camera Kit 1TB White (RC24KD2W)

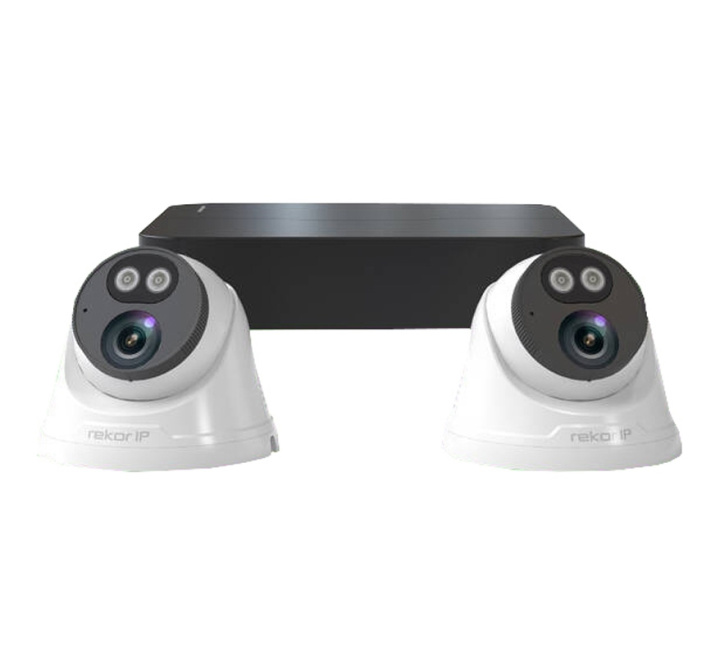

The ESP RC24KD2W is an IP PoE CCTV system in a box. The kit comprises 1 x 4-Channel Network Video Recorder (NVR) with an internal HDD of 1TB and 2 x 2MP weatherproof dome cameras in a white finish. Includes cables and system power supply.
Key Features of the RC24KD2W |
|---|
| > Complete with NVR, Weatherproof IP Cameras, Cable & System Power Supply > HD 2MP Resolution Viewing and Recording > 4 Channel IP PoE NVR > White LED and IR Function for 24/7 Colour Images > Intelligent Function, with Perimeter Intrusion Detection & Line Crossing Detection > Pre-Installed Surveillance Hard Drive > Remote Monitoring via APP (Android / IOS) or PC > Continuous / Scheduled / Motion Record Modes > USB Backup for Evidence Transfer > Up to 250m Cable Length per Channel |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | RC24KD2W |
FAQ’s for ESP Rekor IP PoE 2MP 4-Channel 2 Dome Camera Kit 1TB White (RC24KD2W)
No questions yet. Be the first to ask the question!
Product Specification for ESP Rekor IP PoE 2MP 4-Channel 2 Dome Camera Kit 1TB White (RC24KD2W)
| Code: | RC24KD2W |
| Description: | ESP 4 Channel 1TB NVR 24/7 with 2 x 2MP Dome CCTV PoE Kit |
Component 1: 4 Channel HD 1TB Network Video Recorder (NVR) x 1 | |
| Dimensions: | 205mm x 205mm x 46mm |
| Operating voltage: | 48 VDC |
| Power consumption: | <9W mA |
| Display video output: | 1 x HDMI, 1 x VGA |
| Display split: | 1 & 4 |
| Display resolutions: | HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Sync playback: | 4 Channel |
| Backup mode: | USB2.0 devices |
| Internal HDD: | 1 TB (1 x SATA) |
| Recording bandwidth: | 64 Mbps |
| Video/Audio compression: | H.265/H.264 |
| Recording resolution: | 4K/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF |
| Network connection: | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Network functions: | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| PoE channels: | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB interface: | 2 x USB2.0 |
| Video input channels: | 4 |
| Audio output channels: | 1 RCA |
| Operating temperature: | -10 to +55°C |
| Relative humidity resistance: | ≤ 90% RH (non-condensing) |
| Weight: | 0.6 kg |
Component 2: 2.8mm 2MP Fixed 24/7 IP PoE Dome Camera x 2 | |
| Dimensions: | 118mm x 118mm x 96mm |
| Finish: | White |
| Sensor size: | 1/2.8” Progressive CMOS |
| Lens size: | 2.8mm |
| Effective pixels: | 1920 x 1080 |
| IR Distance: | 30m |
| White light range: | 30m |
| Day/night: | IR-Cut filter with Auto Switch (ICR) |
| Basic detection: | Cross line, Intrusion(based on human body detection), Motion Detection, Tampering Alarm, Audio Detection |
| Operating voltage: | 12 VDC |
| Power consumption: | <8W |
| Other power sources: | PoE (IEEE802.3af) |
| Lens type: | Fixed |
| Viewing angle (°): | 106.7 (H), 57.1 (V), 115.7 (D) |
| Auto Electronic Shutter (s): | Auto / Manual |
| Frames per second: | 30 fps (@1080p |
| Scanning system: | Progressive Scan CMOS |
| Speaker supported: | Yes |
| Microphone supported: | Yes |
| Reset key: | No |
| ONVIF compliant: | Yes; Profile S, Profile G, Profile T |
| Network functions: | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Ingress protection: | IP67 |
| Operating temperature: | -30 to +60°C |
| Weight: | 0.3 kg |
Component 3: 18.3m IP Cables x 2 | |
| Materials: | Solid Bare Copper Center Conductor Foam Polyethylene Dielectric PVC Jacket |
| Finish: | Black |
| Length: | 18.3m |
| Category: | CAT-5e |
| Cores: | Twisted 4-pair |
| Pre-wired: | Yes |
| Shielded: | Yes |
| Terminated connections: | RJ45 x 2 |
| Warranty: | 3 years |
| Supplied: | 4 Channel NVR PSU for NVR 2 x Dome Cameras Kit Cable for each camera |
| Compatible products: | RC228FDW: 2.8mm 2MP Dome Camera, White RC228FDG: 2.8mm 2MP Dome Camera, Grey RC228FBW: 2.8mm 2MP Bullet Camera, White RC228FBG: 2.8mm 2MP Bullet Camera, Grey |
| Accessories: | IPIN1POE: 1 Channel POE Injector IPSW4POE: 4 Channel POE Switch IPX100POE: PoE Extender CABIP10 : 10m CAT-5e External Use Data Cable CABIP20: 20m CAT-5e External Use Data Cable CABIP40: 40m CAT-5e External Use Data Cable CABIP80: 80m CAT-5e External Use Data Cable |
Component 4: 24/7 NVR Power Supply Unit x 1 | |
| Supply voltage: | 110 - 240 VAC |
| Output rating: | 48 VDC |
