Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

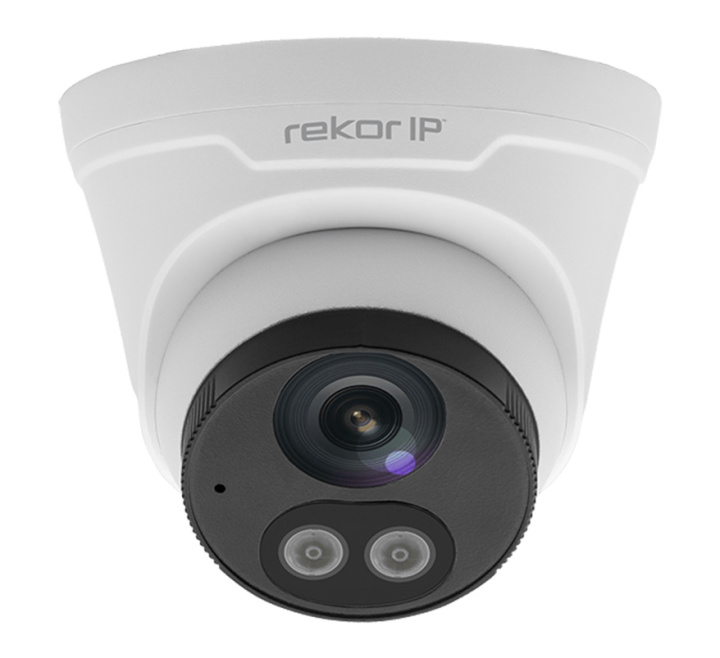

ESP Rekor IP PoE 2MP 2.8mm Fixed Lens Dome Camera White (RC228FDW)
SKU
RC228FDW
ESP Rekor IP 24/7 IP PoE 2MP 2.8mm Dome Camera, White (RC228FDW)
Discontinued
Alternative Products
Product Details for ESP Rekor IP PoE 2MP 2.8mm Fixed Lens Dome Camera White (RC228FDW)
The ESP Rekor IP 24/7 IP PoE 2MP 2.8mm fixed lens, white, dome camera is compatible with the range of 24/7 Network Video Recorders (NVR) 4, 8, 16, 32 and 64 Channels.
Key Features of the RC228FDW |
|---|
|
> HD 2MP Resolution
> 2.8mm Fixed Lens > 1/2.8" Image Sensor > White LED and IR Function up to 30 Meters > 115˚ Diagonal Viewing Angle > Built-In Mic & Speaker > Supports 128GB MicroSD Card > IP67 Housing Ingress Protection |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | RC228FDW |
FAQ’s for ESP Rekor IP PoE 2MP 2.8mm Fixed Lens Dome Camera White (RC228FDW)
No questions yet. Be the first to ask the question!
Product Specification for ESP Rekor IP PoE 2MP 2.8mm Fixed Lens Dome Camera White (RC228FDW)
| Code: | RC228FDW |
| Description: | ESP 2.8mm Fixed Lens IP Dome Camera - White |
| Supplied: | Quick Start Guide, Mounting Guide, Installation Screws and Rawlplugs and Pass Through Gland |
| Compatible products: | Compatible with the range of 24/7 Network Video Recorders (NVR) 4, 8, 16, 32 and 64 Channels |
| Accessories: | DBW3: Rekor IP 24/7 2MP Dome Deep Base - White |
| Dimensions: | 118mm x 118mm x 96mm |
| Materials / finish: | Metal & Plastic / White |
| Operating voltage: | 12 VDC |
| Power consumption: | <8W |
| Other power sources: | PoE (IEEE802.3af) |
| Effective pixels: | 1920 x 1080 |
| Sensor size: | 1/2.8” Progressive CMOS |
| Lens size / type: | 2.8mm / fixed |
| Viewing angle (°) : | 106.7 (H), 57.1 (V), 115.7 (D) |
| Auto electronic shutter (s): | Auto / manual |
| Speed (sec/°): | 1 to 1/100000 |
| Scanning system: | Progressive Scan CMOS |
| Frames per second: | 30 fps (@1080p |
| Max. IR distance: | 30m |
| IR wavelength: | 850 nm |
| Video bit rate: | 128 Kbps - 6 Mbps |
| Microphone supported: | Built-in |
| Speaker supported: | Built-in |
| White light range: | 30m |
| Day/night: | IR-Cut filter with Auto Switch (ICR) |
| Basic detection: | Cross line, Intrusion(based on human body detection), Motion Detection, Tampering Alarm, Audio Detection |
| Reset key: | No |
| Interface: | 1 RJ45; 10/100M Base-TX Ethernet |
| ONVIF compliant: | Yes; Profile S, Profile G, Profile T |
| Network functions: | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Storage type: | Micro SD, up to 128GB |
| eSATA connection: | 1 RJ45; 10/100M Base-TX Ethernet |
| IP rating: | IP67 |
| Operating temperature: | -30 to +60°C |
| Storage temperature: | -30 to +60°C |
| Warranty: | 3 years |
| Weight: | 0.30 kg |
