ESP MAGPRO 1-4 Loop 96 Zone Addressable Fire Alarm Panel (MAGPRO9601)
Product Details for ESP MAGPRO 1-4 Loop 96 Zone Addressable Fire Alarm Panel (MAGPRO9601)

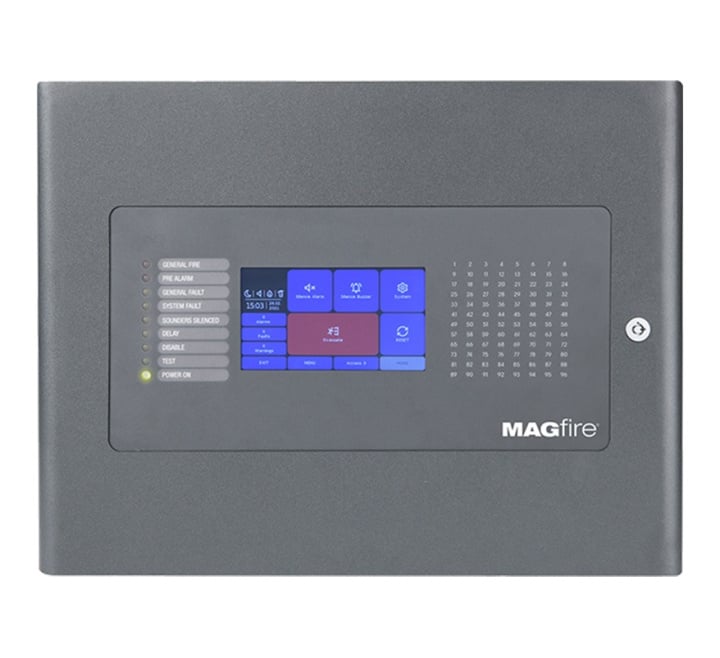

The ESP MAGPRO9601 is a powerful and highly versatile addressable fire alarm control panel, designed for medium-to-large scale installations where advanced features and a clear user interface are essential. Its standout feature is a large 5-inch full-colour TFT touchscreen, which provides intuitive operation, detailed event information, and straightforward programming.
This panel is supplied as a 1-loop system and can support up to 250 MAGPRO-protocol devices on that loop (subject to loop calculation). It is highly scalable, offering the flexibility to expand up to 4 loops using the MAGPRO96-L250 expander card. The panel can be configured for up to 96 zones, with dedicated LED indicators for each zone, providing an at-a-glance overview of the system's status.
Designed for larger, networked systems, the MAGPRO9601 is fully networkable, allowing up to 32 MAGPRO panels to be connected in a ring-type network. It also features a generous 10,000 event log.
For installers, the panel includes free programming software, a loop & battery calculator, and a simple Micro USB port for direct PC connection, making configuration and commissioning efficient and user-friendly. Housed in a durable, powder-coated metal enclosure, the MAGPRO9601 is fully certified to EN54 standards, ensuring a compliant and reliable core for your fire detection system.
Key Features of the MAGPRO9601 |
|---|
|
> 96 Zones
> Maximum 250 devices per loop > Memory log: 10,000 events > Networkable up to 32 Panels > Class change function > Free programming software (available upon request) > Micro USB port for PC connection > Loop & battery calculator software included |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | MAGPRO9601 |
| Product Series | MAGPRO |
| Colour | Grey |
| Primary Power Source | Mains Powered (230V) |
| Max No. of Loops Possible | 4 |
| Number of Loops (Fitted) | 1 |
| Number of Zones | 96 |
| System Type | Addressable |
| Protocol Compatibility | ESP MAGPRO |
| Warranty | 3 Years |
FAQ’s for ESP MAGPRO 1-4 Loop 96 Zone Addressable Fire Alarm Panel (MAGPRO9601)
Product Specification for ESP MAGPRO 1-4 Loop 96 Zone Addressable Fire Alarm Panel (MAGPRO9601)
| Materials | Metal, powder-coated |
| Display | 5” 800 x 480 TFT Touchscreen |
| Supply Voltage (V AC) | 230 |
| Standby Supply | 1 x 12V SLA Battery - Up to 18Ah - Ø5mm (M5) (sold separately) |
| Zones | 96 |
| LED Indication for Zone Circuits | 96 Zone LEDs |
| Maximum Devices Per Loop | 250 (subject to loop calculation) |
| Loops | 1 (expandable up to 4)(MAGPRO96-L250 required) |
| Wiring Type | Addressable |
| Protocol Type | Custom (Closed) |
