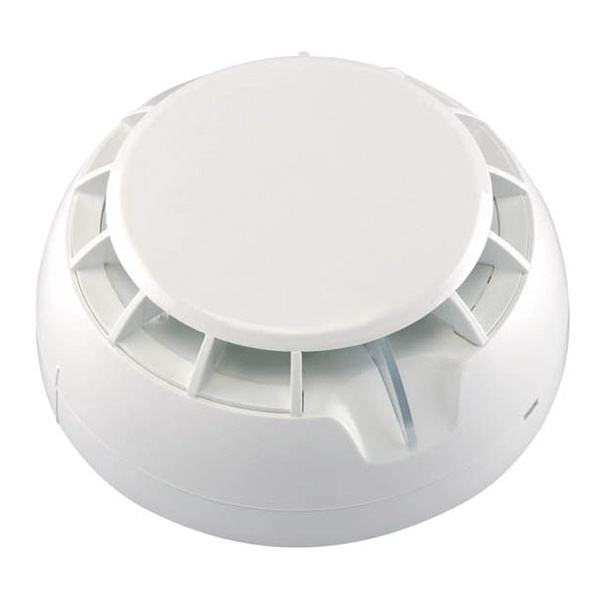

ESP MAGfire 12V Fixed Temperature Heat Detector with Relay Base (FHD212)
SKU
FHD212
£15.07
£12.56
ESP MAGfire FHD212 Fixed Temperature Heat Detector
- Buy 10 for £14.84 £12.37 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP MAGfire 12V Fixed Temperature Heat Detector with Relay Base (FHD212)
ESP MAGfire FHD212 Fixed Temperature Heat Detector is supplied with a relay base. Fully compliant with CPR and EN54 approved. Designed for use on 12V hardwired intruder alarm systems.
Key Features of the FHD212 |
|---|
|
> MAGfire Heat Detector
> Fixed temperature > Supplied with relay base > 12v DC hardwire > BS EN 54-5 approved |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | FHD212 |
Write Your Own Review
FAQ’s for ESP MAGfire 12V Fixed Temperature Heat Detector with Relay Base (FHD212)
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire 12V Fixed Temperature Heat Detector with Relay Base (FHD212)
| Dimensions (mm): |
ø102 x 48 (including base) |
| Finish: | White |
| Materials: | ABS |
| Test Facility: | Heat source |
| Class: | A2/S |
| Operating Voltage: | 9 - 30 V DC |
| Alarm current | 29 @ 12V (mA) |
| Cable size (mm2): | 0.4 - 2.0 |
| Standby Current: | <50 @ 12V (μA) |
| Wiring Type: | 12V Conventional |
| Output Relay Rating: |
30V/0.5A |
| Relay Types: | Volt-free double pole single throw (DPST) |
| IP Rating | IP30 |
| Operating Temperature: | -10o to +60o C |
| Relative Humidity Resistance | 93% (+-3) @ 40oC |
| Warranty: | 3 years |
| Weight: | 0.16kg (incl. base) |
| Standards: | BS EN 54-5 |
