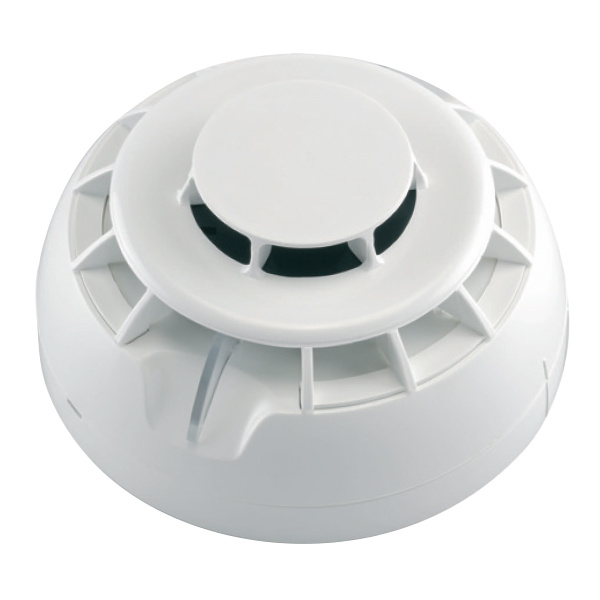

ESP MAGfire Combined Smoke & Fixed Heat Detector (CSD2)
SKU
CSD2
£18.07
£15.06
ESP MAGfire Combined Smoke & Fixed Heat Detector (CSD2)
- Buy 10 for £17.80 £14.83 each and save 2%
In Stock
Product Details for ESP MAGfire Combined Smoke & Fixed Heat Detector (CSD2)
The ESP CSD2 is a multi criteria optical smoke and fixed heat detector (multi-sensor), supplied complete with a diode detector base. The CSD2 is designed for use with the ESP MAGfire conventional panel range, but it is compatible with any conventional fire alarm panel with low fire alarm threshold between 10mA and 15mA.
Key Features of the CSD2 |
|---|
|
> Conventional multi-criteria optical smoke and fixed heat detector
> Supplied with diode detector base > Auto compensation > Digital processing algorithm > LED indication with 360° visibility > Sensor status indication on every 8 seconds > Rubber gasket ring for increased protection of the smoke chamber |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | CSD2 |
Write Your Own Review
FAQ’s for ESP MAGfire Combined Smoke & Fixed Heat Detector (CSD2)
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire Combined Smoke & Fixed Heat Detector (CSD2)
| Type | Conventional |
| Approval | EN54-5 |
| Heat Sensor Class | A1R |
| Operating Voltage | 9 - 30VDC |
| Standby Current @ 24v | < 60µA |
| Alarm Current @ 24v | 49mA |
| Wire Gauge | 0.4mm - 2.0mm TWIN |
| Operating Temperature | -10°C to 60°C |
| Test Facility | Heat Source |
