ESP MAGfire 12V Combined Smoke & Fixed Heat Detector (CSD212)
SKU
CSD212
£25.09
£20.91
ESP CSD212 MAGfire Combined Smoke & Fixed Heat Detector - 12V
- Buy 10 for £24.70 £20.58 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP MAGfire 12V Combined Smoke & Fixed Heat Detector (CSD212)

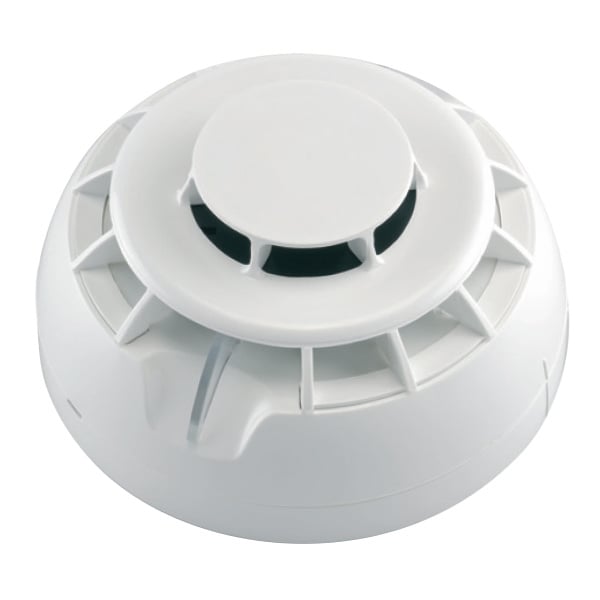

Elite Security Products (ESP) MAGfire CSD212, 12v DC Hardwire Optical & Heat Detector with Relay Base. For use in intruder alarm systems. This kit includes a combined sensor fire detector CSD-2 and relay base DB-12L/U (12V).
Key Features of the CSD212 |
|---|
|
> Smoke & Fixed Heat Detector 12V
> Ceiling mounted > BS EN 54-5 & 54-7 compliant > Easy to install > 3 year warranty |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | CSD212 |
Write Your Own Review
FAQ’s for ESP MAGfire 12V Combined Smoke & Fixed Heat Detector (CSD212)
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire 12V Combined Smoke & Fixed Heat Detector (CSD212)
| Dimensions: |
⌀ 340mm x 48mm (incl. Base) |
| Test Facility: | Simulated smoke/heat |
| Class: | A1R |
| Operating Voltage: | 9 - 30V DC |
| Cable size (mm2) | 0.4 - 2.0 TWIN |
| Alarm Current | 49 @ 24V (mA) |
| Standby Current | 60 @ 24v (μA) |
| Wiring Type: | 12V conventional |
| Relay Types: | Volt-free double pole single throw (DPST) |
| Output Relay Rating: | 30V/0.5A |
| IP Rating: | IP30 |
| Operating Temperature: | -10o to +60o C |
| Relative Humidity Resistance (%) | 93 (+-3) @ 40oC |
| Warranty: | 3 years |
| Weight: | 0.17kg (incl. Base) |
| Standards: | BS EN 54-5, BS EN 54-7 |
