ESP MAGfire Auxiliary Isolator Relay Switch - Red
SKU
MAGAUXISORP
£18.52
£15.43

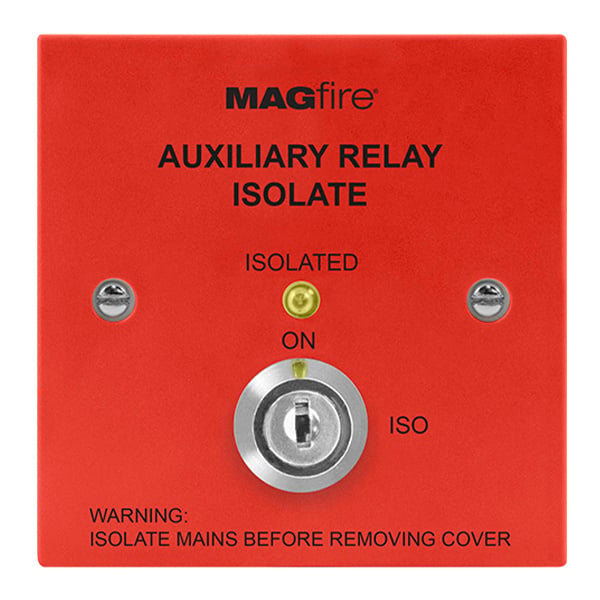

ESP MAGfire Auxiliary Isolator Relay Switch - Red
- Buy 10 for £18.23 £15.19 each and save 2%
In Stock
Product Details for ESP MAGfire Auxiliary Isolator Relay Switch - Red
The ESP MAGAUXISORP is designed to provide two sets of 8 amp clean changeover contacts, either from a switch -ve trigger input or via the isolate keyswitch. The product requires a 24v dc supply.
Key Features of the MAGAUXISORP |
|---|
|
> Suitable for mains switching up to 8 amp
> Secure key switch enables safety for maintenance and offers protection against tamper > External trigger option > Programmable internal buzzer for activation > Clear operation LED indication > Surface or recess mount > 3 year warranty |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | MAGAUXISORP |
Write Your Own Review
FAQ’s for ESP MAGfire Auxiliary Isolator Relay Switch - Red
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire Auxiliary Isolator Relay Switch - Red
| Switch Type | Key |
| Relay Type | Double Pole Double Throw |
| Power Indicator | Green LED |
| Wire Gauge | Up to 2.5mm |
| Material | ABS, Red |
| Dimensions | 86.5 x 86.5 mm |
| Outputs - Relay Rating | 240VAC @8Amps each |
| Power - Operating Voltage | 24VDC |
