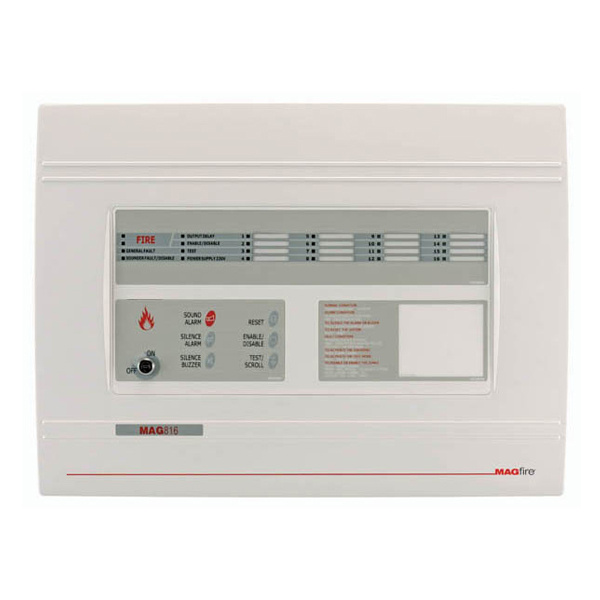

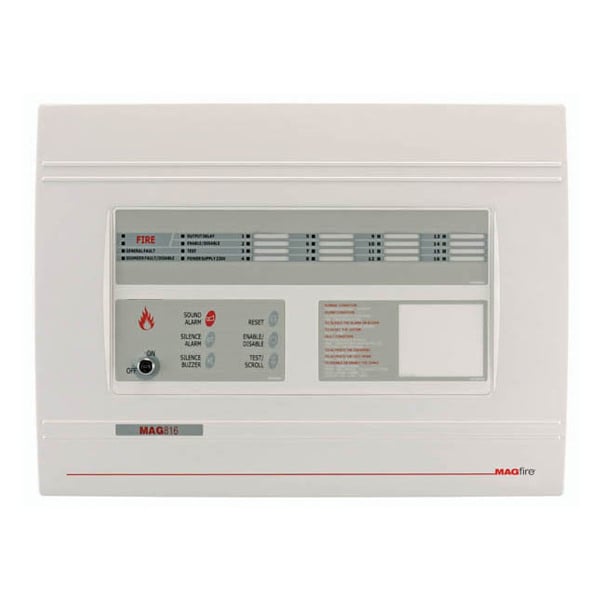

ESP MAGfire 8 Zone Expandable Fire Panel (MAG816)
SKU
MAG816
£271.09
£225.91
ESP MAGfire 8 Zone Expandable Conventional Fire Panel (MAG816)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP MAGfire 8 Zone Expandable Fire Panel (MAG816)
The ESP MAG816 is an 8 zone conventional fire alarm control panel in an ABS casing which is expandable up to 16 zones with the use of additional zone expansion cards. As standard the panel has 8 programmable detection zones (expandable to 16) which can accommodate up to 32 fire detectors per zone and an unlimited number of call points per zone. The panel supports active end of line monitoring and detector head removal monitoring to BS5839-1, it is CE certified and compliant to EN54-2 & 4.
The ESP® fire systems have been created to balance performance, reliability and aesthetics whilst being fully CPR compliant and certified to EN54 standards.
Key Features of the MAG816 |
|---|
|
> 8 programmable detection zones (expandable up to 16)
> 4 sounder circuits (expandable up to 16) > Active end of line monitoring and head removal > Up to 32 fire detectors per zone > Unlimited number of call points per zone > Integral sound alarm button > Repeater facility and 'Class change' facility > Enable/disable security key > One man walk test facility > Volt free fire/fault change over relay > Individual sounder circuit fault ID > Individual zone/sounder isolate > Alarm delay options > CE certified to EN54 P2/4 > Requires 1 x 12V batteries > ABS casing |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | MAG816 |
Write Your Own Review
FAQ’s for ESP MAGfire 8 Zone Expandable Fire Panel (MAG816)
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire 8 Zone Expandable Fire Panel (MAG816)
| Max. Detectors per Zone | 32 |
| Thresholds for Zone Conditions | 0 - 2 mA (Fault condition) 2 - 10 mA (Normal condition) 10 - 110 mA (Fire condition) 110mA - + Short (Fault condition) |
| Mains Fail Consumption | 130mA (1 zone expander) 260mA (4 zone expanders) |
| Mains Supply | 230 VAC ± 10% |
| Standby Supply | 1 x 18ah 12V S.L.A. Batteries |
| Power Availability | 0.7 amps |
| On Board Sounder Circuits (4) | 300mA @ 24V fuse resettable (PTC) |
| Sounder Expander Cards (4) | 150mA @ 24V fuse resettable (PTC) |
| Fault/Fire Relay | Volt free 500mA @ 24V (max load) |
| Auxiliary Output | 24VDC (300mA fused) |
| Working Temperature | 0 to 40ºC |
| Storage Temperature | -20 to 60ºC |
| Humidity | 0 to 93% |
| Dimensions (mm) | 456 x 350 x 125mm |
| Weight | 4.2 KG |
