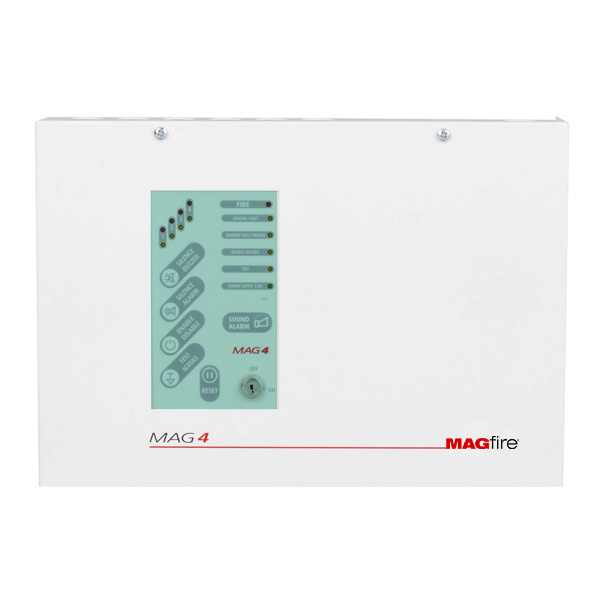

ESP MAGfire 4 Zone Conventional Fire Panel - Metal (MAG4)
SKU
MAG4
£146.41
£122.01
ESP MAGfire 4 Zone Conventional Fire Panel - Metal Casing (MAG4)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP MAGfire 4 Zone Conventional Fire Panel - Metal (MAG4)
The ESP MAGfire MAG4 is a conventional fire alarm control panel in a durable metal casing with 4 programmable detection zones which can accommodate up to 30 detectors per zone and an unlimited number of manual call points per zone. The panel supports active end of line monitoring for detector head removal in compliance with BS5839-1 and is compliant to EN54-2 & 4.
The ESP® fire systems have been created to balance performance, reliability and aesthetics whilst being fully CPR compliant and certified to EN54 standards.
Key Features of the MAG4 |
|---|
|
> 4 programmable zones
> Active end of line monitoring and head removal > 30 fire detectors per zone > Unlimited number of call points per zone > Integral sound alarm button > 'Class change' facility > Enable/disable security key > One man walk test facility > Volt free fire and fault change over relays > Individual sounder circuit fault ID > Individual zone/sounder isolate > EN54 P2/4 compliant and CE certified > Requires only 1 x 12v 7Ah battery > Metal casing |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | MAG4 |
Write Your Own Review
FAQ’s for ESP MAGfire 4 Zone Conventional Fire Panel - Metal (MAG4)
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire 4 Zone Conventional Fire Panel - Metal (MAG4)
| Max Detectors per Zone | 30 |
| Thresholds for Zone Conditions | 0 - 2 mA (Fault condition) 2 - 6 mA (Normal condition) 6 - 110 mA (Fire condition) 110 mA - Short (Fault condition) |
| Mains Fail Consumption | 50mA |
| Mains Supply | 230 VAC ± 10% |
| Standby Supply | 1 x 7ah 12V S.L.A. Battery |
| Power Availability | 0.7 amps |
| Sounder 1 | 24V (max 300mA fused) |
| Sounder 2 | 24V (max 300mA fused) |
| Fault/Fire Relay | Volt free 500mA @ 24V (max load) |
| Auxiliary Output | 24VDC (300mA fused) |
| Working Temperature | 0 to 40ºC |
| Storage Temperature | -20 to 60ºC |
| Humidity | 0 - 95% |
| Dimensions MAG4P | 340 x 290 x 100mm |
| Dimensions MAG4 | 320 x 220 x 80mm |
| Weight | MAG4P - 2.5Kg MAG4 - 3.5Kg |
