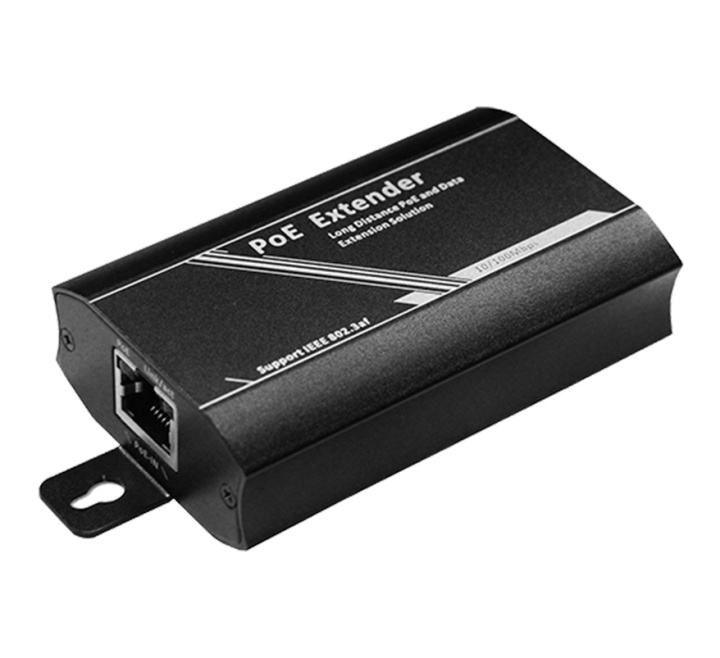

ESP HDview IP PoE Extender 100m (IPX100POE)
SKU
IPX100POE
£63.14
£52.62
ESP HDview IP POE Extender, 100m (IPX100POE)
- Buy 10 for £62.17 £51.81 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP HDview IP PoE Extender 100m (IPX100POE)
The ESP IP POE Extender, 100m (IPX100POE) supports IP POE cameras on long cable runs up to 300m. One extender is required every 100m to achieve the maximum distance with no local power supply required. This is a Plug and play installation with 1x input and 1x output. Requires a PoE supply from a Network Video Recorder or network switch.
Key Features of the IPX100POE |
|---|
|
> Plug and play installation
> One Input and one output PoE > Bandwidth10/100Mbps > Short Circuit and Overload Protection > Requires PoE Supply from NVR or Network Switch |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | IPX100POE |
Write Your Own Review
FAQ’s for ESP HDview IP PoE Extender 100m (IPX100POE)
No questions yet. Be the first to ask the question!
Product Specification for ESP HDview IP PoE Extender 100m (IPX100POE)
| Code: | IPX100POE |
| Description: | ESP Single Channel PoE Extender |
| Dimensions: |
83mm x 51.5mm x 24mm |
| Compatible products: | CABIP10: 10M Data Cable Pre-Terminated with RJ45 CABIP20: 20M Data Cable Pre-Terminated with RJ45 CABIP40: 40M Data Cable Pre-Terminated with RJ45 CABIP80: 80M Data Cable Pre-Terminated with RJ45 |
| Materials: |
Aluminium Alloy |
| Operating voltage: | 48 - 57 VDC |
| Input type: | PoE |
| Inputs & outputs: | PoE Indicator, Link/Act Indicator |
| Ingress protection: | IP20 |
| Operating temperature: | -10 to +55°C |
| Storage temperature: | -40 to +85°C |
| Warranty: | 3 years |
| Weight: | 0.088 kg |
