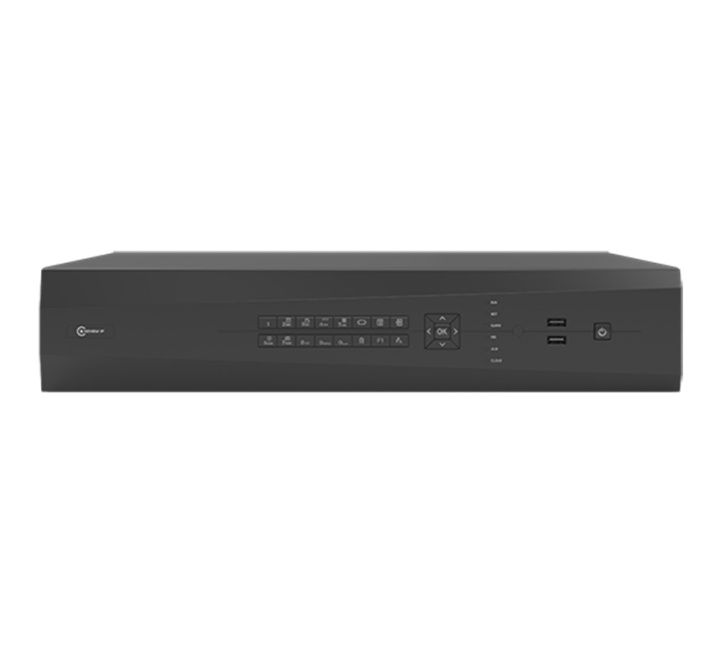

ESP HDview IP PoE 64-Channel 8TB Network Video Recorder (NVR) (HC864R)
SKU
HC864R
£1,676.93
£1,397.44
ESP HDview IP PoE 64-Channel 8TB Network Video Recorder (NVR) (HC864R)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP HDview IP PoE 64-Channel 8TB Network Video Recorder (NVR) (HC864R)
The ESP HC864R is an HDview IP 24/7, PoE, 64-Channel Network Video Recorder (NVR) with an internal HDD of 8TB. Intelligent features such as Line Cross and Perimeter Intrusion Detection. Remotely monitor via App.
Key Features of the HC864R |
|---|
|
> 8TB internal HDD
> HD Resolution Recording > 64-Channel IP with 2 uplink ports > Bandwidth: incoming 384Mbps, outgoing 384 Mbps > H.265 Video compression for efficient storage > Intelligent features such as Line Cross and Perimeter Intrusion Detection > Playback/Record/Remote View simultaneously > Continuous/Scheduled/Motion Detection/Intelligent record modes > Remote monitoring via App > HDMI output up to 4k > USB backup for evidence transfer > Pre-Installed surveillance hard drive > Up to 250m cable length per channel |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | HC864R |
Write Your Own Review
FAQ’s for ESP HDview IP PoE 64-Channel 8TB Network Video Recorder (NVR) (HC864R)
No questions yet. Be the first to ask the question!
Product Specification for ESP HDview IP PoE 64-Channel 8TB Network Video Recorder (NVR) (HC864R)
| Code: | HC864R |
| Description: | 64 Channel HD 8TB Network Video Recorder (NVR) |
| Dimensions: | 426mm x 442mm x 89mm |
| Compatible products: | Compatible with the range of 24/7 HDview 5MP and 8MP and Rekor IP 2MP Fixed Bullet and Dome Cameras |
| Supplied: | USB Mouse, Quickstart Guide, C13 Mains Cable, Server Mounting Brackets & Screws x 2, Auxiliary Terminal Block x 4 |
| Accessories: | IPIN1POE: 1 Channel POE Injector IPSW4POE: 4 Channel POE Switch IPSW8POE: 8 Channel POE Switch |
| Operating voltage: | 100 - 240 VAC |
| Power consumption: | <25W |
| Serial ports: | 1 x RS232, 1 x RS485 |
| Alarm inputs: | 16 |
| Alarm outputs: | 4 |
| Video input channels: | 64 |
| Audio output channels: | 1 (RCA) |
| PoE standards: | IEEE 802.3at & IEEE 802.3af |
| Display video output: | 1 x VGA, 2 x HDMI (HDMI Audio is not supported) |
| Display split: | 1, 4, 6, 8, 9, 16, 25 & 36 (VGA) 1, 4, 6, 8, 9, 16, 25, 36 & 64 (HDMI) |
| Display resolutions: | HDMI1/HDMI2: 4K (3840x2160)(30Hz), 1920x1080p(60Hz), 1920x1080p(50Hz), 1600x1200(60Hz), 1280x1024(60Hz), 1280x720(60Hz), 1024x768(60Hz) VGA: 1920x1080p(60Hz), 1920x1080p(50Hz), 1600x1200(60Hz), 1280x1024(60Hz), 1280x720(60Hz), 1024x768(60Hz) |
| Sync playback: | 16 channel |
| Data: | RS485 |
| Network connection: | 2 RJ45 10M, 100M, 1000M self-adaptive Ethernet Interface |
| Network functions: | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
| USB interface: | 2 x USB (2.0), 1 x USB (3.0) |
| Recording capacity: | 10TB per disk max. |
| Internal HDD: | 8 TB (8 x SATA) |
| eSATA interfaces: | 1 |
| eSATA connection: | 1 |
| Recording resolution: | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF |
| Operating temperature: | -10 to +55°C |
| Relative humidity: | ≤ 90% RH (non-condensing) |
| Warranty: | 3 years |
| Weight: | <5.7 kg |
