Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
ESP Fort Smart Security Alarm Kit (ECSPK2)
SKU
ECSPK2
ESP Fort Smart Alarm Kit - 1 x Smart Hub, 2 x PIRs, 1 x Door Contact, 1 x Remote Control/Fob (ECSPK2)
Discontinued
Alternative Products
Product Details for ESP Fort Smart Security Alarm Kit (ECSPK2)

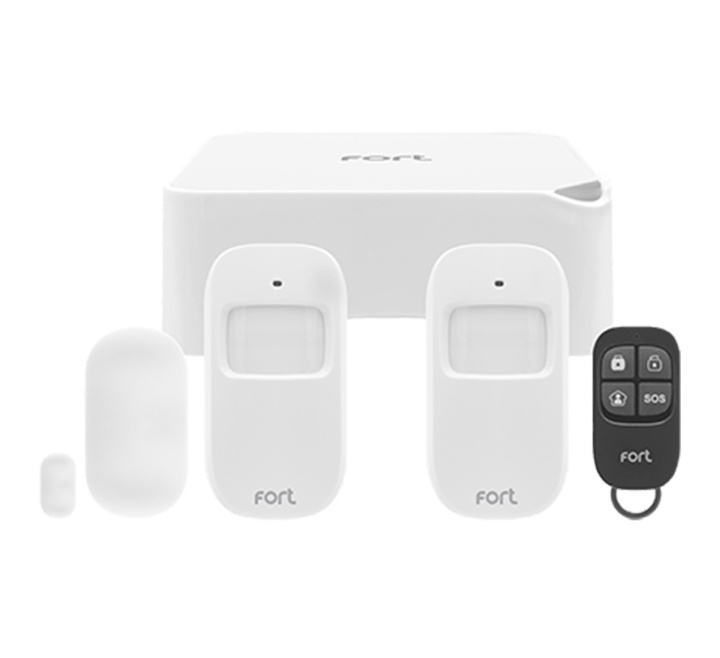

The ESP ECSPK2 Fort Smart Security Alarm Kit comprises:
- 1 x Smart Alarm Hub with Battery Backup
- 2 x Smart Security PIRs
- 1 x Door Contact
- 1 x Remote Fob
Key Features of the ECSPK2 |
|---|
|
> Smart Security Alarm Kit with Hub, PIRs, Door Contact and Remote Fob.
> WI-FI Enabled with GSM Back-up facility > Activations / monitoring supported via App > No additional subscriptions / fees > Supports up to 32 RF Devices > Built-in siren (95dB) > Built-in backup battery, with up to 8 hrs standby time > 80m Open Field RF Transmission (433Mhz) > 2.4GHz Wi-Fi Connection required > Sim Card not included |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | ECSPK2 |
FAQ’s for ESP Fort Smart Security Alarm Kit (ECSPK2)
No questions yet. Be the first to ask the question!
Product Specification for ESP Fort Smart Security Alarm Kit (ECSPK2)
| Code: | ECSPK2 |
| Description: | Smart Security Alarm Kit with Hub, 2x PIRs, Door Contact and Remote Fob |
| Supplied: | Fort Hub Fort PIR x 2 Fort Door/Window Contact Fort Remote Control AC Adapter Product Batteries Mounting Screws & Wall plugs User Guides |
| Component 1: ECSPHB - Smart Alarm Hub with Battery Backup x 1 |
|
| Dimensions: | 109.5 x 109.5 x 40mm |
| Sounder output: |
95 dB |
| Max. devices: | 32 |
| Transmission: | Frequency: 433MHz Router frequency: 2.4 GHz (IEEE 802.11 b/g/n) Router transmission range: 150m |
| Materials / finish: | ABS / White |
| Mounting: | Surface |
| Programming: | Available operations: Home/Arm/Disarm/SOS |
| Operating voltage: | 12 VDC |
| Power consumption (A): | 1 |
| Power reserve: | 8 hours (approx.) |
| Battery specification: | 7.4V 600 mAh Lithium Polymer |
| Auxiliary: | GSM: Yes - full size SIM card GSM Frequency (MHz): 850, 900, 1800 & 1900 |
| Operating temperature: | -10 to 55°C |
| Relative humidity: | <80% (non-condensing) |
| Weight: | 0.25 kg |
| Component 2: ECSPPIR - Smart Security PIR x 2 |
|
| Dimensions: | 107mm x 53mm x 32mm |
| Bracket dimensions: | 52mm x 30mm x 26.5mm |
| Finish: | White |
| Mounting: | Surface |
| PIR range: | 8m |
| Transmission frequency: | 433 MHz |
| Operating voltage: | 3 VDC |
| Power consumption: | 0.0095A |
| Battery type: | AA (LR06) x 3 |
| Power reserve: | 12 months (approx.) |
| Zone types: | Normal Sensor/24h mode/Delay mode/Home mode/24h mute sensor/Home delay mode |
| Operating temperature: | -10 to 55°C |
| Relative humidity: | <80% (non-condensing) |
| Weight: | 0.046kg |
| Component 3: ECSPCT - Smart Door / Window Contact Sensor x 1 |
|
| Dimensions: | 55.7mm x 30.3mm x 16mm |
| Materials / finish: | ABS / White |
| Mounting: | Surface |
| Magnet dimensions: | 25mm x 10mm x 9mm |
| Transmission frequency: | 433 MHz |
| Operating Voltage: | 3 VDC |
| Power consumption: | 0.015A |
| Battery type: | CR2477 |
| Power reserve: | 12 months (approx.) |
| Zone types: | Types Normal Sensor/24h mode/Delay mode/Home mode/24h mute sensor/ Home delay mode |
| Operating temperature: | -10 to 55°C |
| Relative humidity: | <80% (non-condensing) |
| Weight: | 0.2 kg |
| Component 4: ECSPRC - Smart Alarm Remote Control x 1 |
|
| Dimensions: | 57mm x 31mm x 11mm |
| Finish: | Black |
| Materials: | ABS |
| Available operations: | Home/Arm/Disarm/SOS |
| Transmission frequency: | 433 MHz |
| Operating voltage: | 3 VDC |
| Battery type: | CR 2025 |
| Power consumption: | <7 mA |
| Power reserve: | 12 months (approx.) |
| Operating temperature: | -10 to 55°C |
| Relative humidity: | <80% (non-condensing) |
| Weight: | 0.02 kg |
