ESP MAGfire MAGSC-816 4 Zone Sounder Expander Card for MAG816 Panels
SKU
MAGSC-816
£36.38
£30.32
ESP MAGfire MAGSC-816 4 Zone Sounder Expander Card, for use with MAG816 fire panels
- Buy 10 for £35.82 £29.85 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP MAGfire MAGSC-816 4 Zone Sounder Expander Card for MAG816 Panels

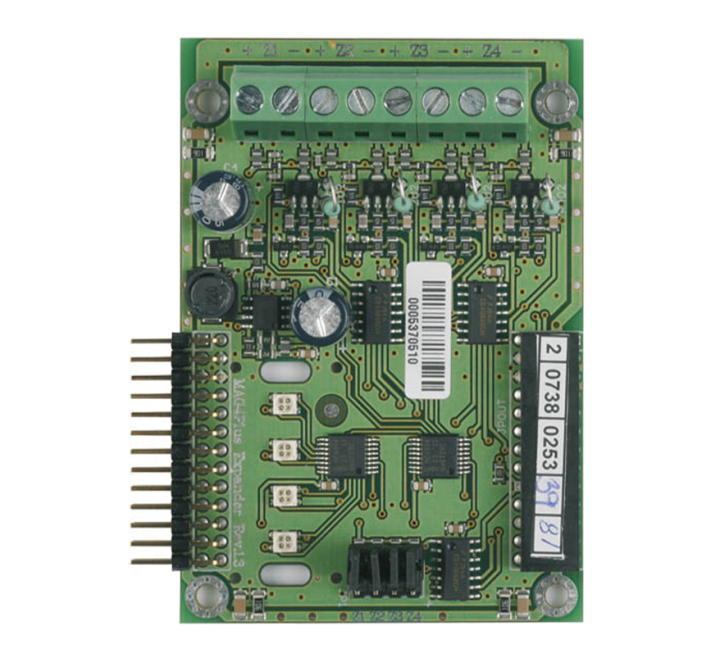

The Elite Security Products MAGSC-816 4 Zone Sounder Expander Card is for use with the MAG816 8-Zone Fire Panel (expandable to 16 zones). The MAG816 is supplied with 4 sounder circuits as standard. Space is provided for up to 4 extra expansion cards. Sounder cards carry 4 sounder circuits.
Key Features of the MAGSC-816 |
|---|
|
> Sounder Expander Card
> For use with: MAG816 Panel > ESP MAGfire Range > See specification for Fire Zone/Sounder output matrix |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | MAGSC-816 |
Write Your Own Review
FAQ’s for ESP MAGfire MAGSC-816 4 Zone Sounder Expander Card for MAG816 Panels
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGfire MAGSC-816 4 Zone Sounder Expander Card for MAG816 Panels
| FIRE ZONE / SOUNDER OUTPUT MATRIX | ||||||||
| Number of zone cards fitted | 2 | 3 | 4 | 2 | 3 | 1 | 2 | 1 |
| Number of sounder cards fitted | 0 | 0 | 0 | 1 | 1 | 2 | 2 | 3 |
| Number of zones | 8 | 12 | 16 | 8 | 12 | 4 | 8 | 4 |
| Number of sounder outputs | 4 | 4 | 4 | 8 | 8 | 12 | 12 | 16 |
| NB The MAG816 features 4 sounder circuits. Space is provided for up to 4 extra expansion cards of any combination. Sounder cards carry 4 sounder circuits, Zone cards carry 4 fire zones. The MAG816 is supplied as standard with 8 fire zones and 4 sounder circuits. | ||||||||
