ESP Beacon Accessible Toilet Alarm Power, Light & Buzzer Module (Stainless Steel) (UDTAPLBMSS)
SKU
UDTAPLBMSS
£44.10
£36.75
ESP Beacon Accessible Toilet Alarm Power, Light & Buzzer Module (Stainless Steel) (UDTAPLBMSS)
- Buy 10 for £43.43 £36.19 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Beacon Accessible Toilet Alarm Power, Light & Buzzer Module (Stainless Steel) (UDTAPLBMSS)

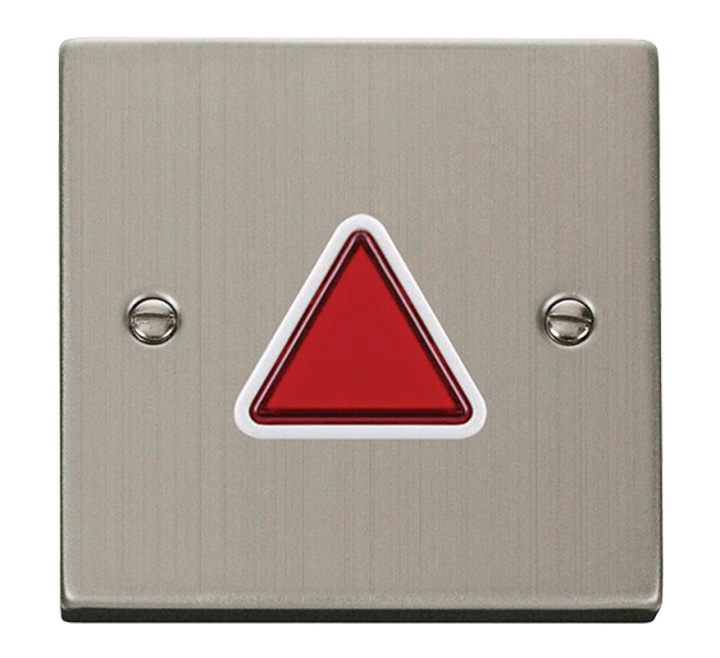

This standalone Beacon Accessible Toilet Alarm Power Light & Buzzer Module, Stainless Steel (UDTAPLBMSS) is an accessory for use with the UDTAKITSS, used to raise an alert for assistance. A red LED indicator illuminates when in alarm state. It has a distinctive, 80dB audible alert. If surface mounting you will need a UDTASMBSS Surface Mount Back Box. Supplied with user manual.
Key Features of the UDTAPLBMSS |
|---|
|
> For use with UDTAKITSS
> Clear alarm LED alert > 80db distinctive audible alert > 240vAC Input for system power > Complete with battery back-up function (Battery Included) > Stainless steel finish |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | UDTAPLBMSS |
Write Your Own Review
FAQ’s for ESP Beacon Accessible Toilet Alarm Power, Light & Buzzer Module (Stainless Steel) (UDTAPLBMSS)
No questions yet. Be the first to ask the question!
Product Specification for ESP Beacon Accessible Toilet Alarm Power, Light & Buzzer Module (Stainless Steel) (UDTAPLBMSS)
| Code: | UDTAPLBMSS |
| Description: | Beacon Accessible Toilet Alarm Power Light & Buzzer Module, Stainless Steel |
| Supplied: | User Manual |
| IP Rating: | IP20 |
| Accessories: | UDTAPLBMSS: Stainless Steel Assistance Alarm, Power, Light and Buzzer Module UDTAPCMSS: Stainless Steel Assistance Alarm Pull Cord Module UDTASPCSS: Stainless Steel Assistance Alarm Replacement Pull Cord UDTAREMSS: Stainless Steel Assistance Alarm Reset Module UDTASMBSS: Stainless Steel Surface mount Box |
| Dimensions: | Plate size 87mm x 87mm x 41mm (single gang) |
| Operating voltage: | 100 - 230 VAC |
| Max. cable size: | 1.5mm² |
| Power consumption: | 0.2A |
| Battery backup: | A23 battery |
| Inputs: | Type: Ground & 2 live circuits - X1 & X2 Activation type: Energise with a Normally Open Clean Contact |
| Outputs: | Number of outputs: 2 Type: 1 Switched Live sharing common ground Separate output for additional sounders Rating: 12V 500mA |
| Indicator: | LED illuminates red when in alarm state |
| Material: | Stainless Steel |
| Colour: | Steel grey |
| Mounting: | Surface or flush (surface box NOT included) - you will need UDTASMBSS Surface Mount Back Box, available separately |
| Buzzer sound level: | >80dB, when activated |
| Purpose: | Activation and Reset Circuits |
| Warranty: | 2 years |
