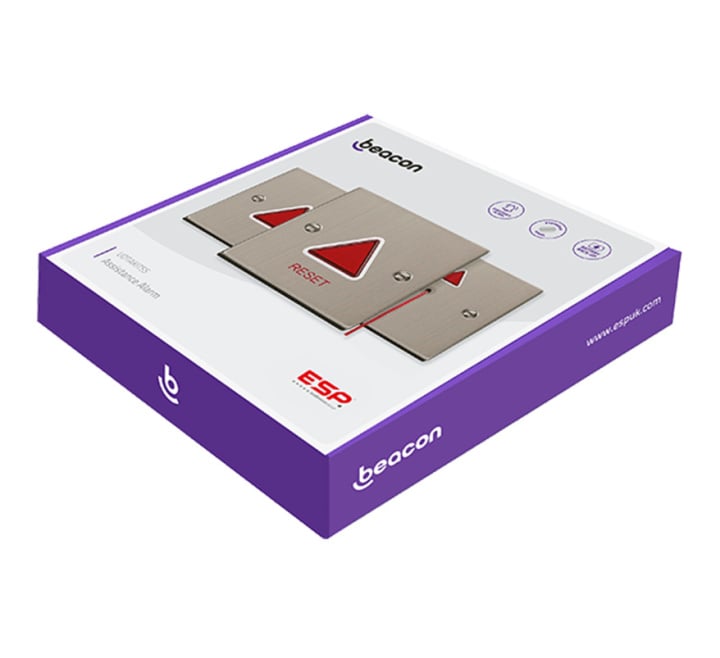

ESP Beacon Accessible Toilet Alarm Kit (Stainless Steel) (UDTAKITSS)
SKU
UDTAKITSS
£76.49
£63.74
ESP Beacon Accessible Toilet Alarm Kit (Stainless Steel) (UDTAKITSS)
- Buy 10 for £75.31 £62.76 each and save 2%
Limited Stock
Product Details for ESP Beacon Accessible Toilet Alarm Kit (Stainless Steel) (UDTAKITSS)
The ESP Beacon Accessible Toilet Alarm Kit in a stainless steel finish consists of an indication module, a pull cord module and a reset module for placement in a disabled/accessible toilet. Supplied with battery back-up function and battery. This kit meets Part M building regulations as well as BS8300.
Key Features of the UDTAKITSS |
|---|
|
> Simple install, 3 part kit - Indication Module, Pull cord module & Reset Module
> Complete in a stainless steel finish > Complete with battery back-up function (Battery Included) > Meets Part M building regulations and BS8300 > Alarm to raise alert for assistance > Compact design to suit many interiors > Disabled persons stainless steel door sign > System is expandable to include additional indication and pull cord modules |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | UDTAKITSS |
Write Your Own Review
FAQ’s for ESP Beacon Accessible Toilet Alarm Kit (Stainless Steel) (UDTAKITSS)
No questions yet. Be the first to ask the question!
Product Specification for ESP Beacon Accessible Toilet Alarm Kit (Stainless Steel) (UDTAKITSS)
| Code: | UDTAKITSS |
| Description: | ESP Beacon Accessible Toilet Alarm Kit, Stainless steel finish |
| Supplied: | Disabled Indication Plate A23 Battery User Manual |
| PULL CORD MODULE | |
| Dimensions: | Single Gang; 87mm x 87mm x 41mm |
| General: | Indication: LED illuminates in red when in alarm state Buzzer: >80db when in alarm State Wire gauge: 1.5mm |
| Inputs: | Type: Ground & 2 live circuits - X1 & X2 Activation: Energise with a Normally Open Clean contact Purpose: Activation and Reset Circuits |
| Construction: | Material: Stainless Steel (Grade 304) Fixing: Surface only Colour: Steel grey |
| Outputs: | No. of outputs: 2 Type: 1 Switched Live sharing common ground Separate output for additional sounders Rating: 12V500mA |
| Power: | 100 ~ 230VAC Consumption: 0.2A Battery backup: A23 battery |
| IP Rating: | IP20 |
| Features: | Built-in Battery Backup with supplied A23 Battery Sounder buzzes intermittently when battery needs replacing |
| Accessories: | UDTAPLBMSS Stainless Steel Assistance Alarm, Power, Light and Buzzer Module UDTALBMSS Stainless Steel Assistance Alarm Light and Buzzer Module UDTAPCMSS Stainless Steel Assistance Alarm Pull Cord Module UDTASPCSS Stainless Steel Assistance Alarm Replacement Pull Cord UDTAREMSS Stainless Steel Assistance Alarm Reset Module UDTASMBSS Stainless Steel Surface mount box |
| POWER, LIGHT AND BUZZER MODULE | |
| Dimensions: | Single gang; 87mm x 87mm x 41mm |
| Power supply: | 12 VDC |
| Power consumption: | 0.3W |
| Indicator: | LED illuminates red when in alarm state |
| Material: | Stainless Steel (Grade 304) |
| Colour: | Steel grey |
| Pull cord length: | 3 metres with 2 triangular bangles |
| RESET MODULE | |
| Power supply: | 12 VDC |
| Power consumption: | 0.3W |
| Dimensions: | Single gang; 87mm x 87mm x 41mm |
| Indicator: | LED illuminates red when in alarm state |
| Material: | Stainless Steel (Grade 304) |
| Colour: | Steel grey |
| Buzzer: | >80db when in alarm state |
