ESP Aperta Single Door Internal Proximity Keypad Kit c/w Flush Exit Button (Silver Keypad) (EZT3K)
SKU
EZT3K
£211.75
£176.46
ESP Aperta Single Door Internal Proximity Keypad Kit c/w Flush Exit Button (Silver Keypad) (EZT3K)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Single Door Internal Proximity Keypad Kit c/w Flush Exit Button (Silver Keypad) (EZT3K)

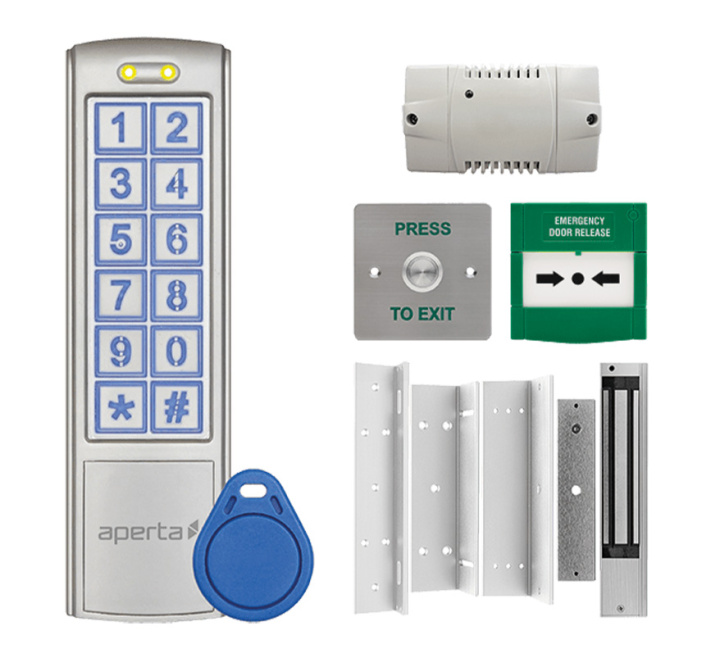

The ESP Aperta Single Internal Door Silver Proximity Keypad Kit comes with a flush Exit Button (EZT3K). It is a complete entry system in one box comprising of:
- EZTAG3 IP65 Proximity Door Entry Keypad
- EZT3ST10 Proximity Tags
- A1ML250 Aperta Internal IP20 250kg Holding Force Magnetic Lock with Lock Status LED & Contact c/w Z & L Bracket
- EVBPSBB Boxed Power Supply
- A1EXIT Aperta Flush Stainless Steel Exit button
- A1ECP Aperta Green Internal Emergency Call Point
Key Features of the EZT3K |
|---|
|
> Complete entry system in one box comprising of:
> EZTAG3 IP65 Proximity Door Entry Keypad > EZT3ST10 Proximity Tags > A1ML250 Aperta Internal IP20 250kg Holding Force Magnetic Lock with Lock Status LED & Contact c/w Z & L Bracket > EVBPSBB Boxed Power Supply > A1EXIT Aperta Flush Stainless Steel Exit button > A1ECP Aperta Green Internal Emergency Call Point |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | EZT3K |
Write Your Own Review
FAQ’s for ESP Aperta Single Door Internal Proximity Keypad Kit c/w Flush Exit Button (Silver Keypad) (EZT3K)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Single Door Internal Proximity Keypad Kit c/w Flush Exit Button (Silver Keypad) (EZT3K)
| Code: | EZT3K |
| Description: | ESP Aperta Single Internal Door Silver Proximity Keypad Kit c/w Flush Exit Button |
| Component 1: EZTAG3 - Proximity & Keypad Door Entry |
|
| Dimensions: | 150mm x 44mm x 24mm |
| Material / finish: |
Aluminium / Silver |
| Mounting: |
Surface |
| Fob Reader Operating Frequency: | 125 KHz |
| Fob Reader Operating Distance: | <50mm |
| PIN length: | 2 - 6 digits |
| Max. capacity: | Zone 1; 1000 Fob/PIN Zone 2; 10 Fob/PIN |
| Backlight: | Keys; Blue LEDs |
| Tamper facility: | Yes |
| Status indication: | Red, Green, and Amber LEDs |
| Operating voltage: | 12 - 24 VDC |
| Operating current: | 110 mA |
| Unlatched relay time: | 1 - 99 seconds |
| Max. switchable load: | 30V @ 4A |
| Operation type: | Latched & unlatched |
| Lock outputs: | 2 |
| Relay types: | Normally Open & Normally Closed; Volt-Free |
| Ingress protection: | IP65 |
| Component 2: EVBPSBB - Power Supply Unit with Battery Backup x 1 |
|
| Dimensions: |
129 x 73 x 50mm |
| Materials: |
ABS |
| Mounting: | Surface only |
| Supply voltage: | 100 - 230 VAC |
| Output type: | Configurable Normally Open or Normally Closed |
| No. of outputs: | Configurable Normally Open or Normally Closed2 (1 x Switched & 1 x Constant) |
| Lock output: | 12V DC @ 1.5A |
| Operating temperature: | 0 to +50°C |
| Ingress protection: | IP20 |
| Component 3: A1EXIT - Flush Push to Exit Release Button x 1 |
|
| Dimensions: | 86 x 86 x 22mm |
| Materials / finish: | Stainless Steel / Brushed steel |
| Mounting: | Surface or flush (backbox not included) |
| Relay voltage: | 125 - 250V |
| Contact type: | 2 x SPST (Normally Open & Normally Closed) |
| Output relay rating: | 3A @125-250V AC |
| Operating temperature: | -20 to +55°C |
| Component 4: A1ECP - Green Internal Emergency Call Point x 1 |
|
| Dimensions: | 87.5 x 87.5 x 32mm |
| Material / finish: |
Fire Resistant ABS / Green (RAL6016) |
| Mounting: | Surface or Flush (Backbox included) |
| Output relay rating: | 3A @125-250V AC |
| Contact type: | Double Pole Double Throw |
| Operating temperature: |
-20 to +55°C |
| Weight: | 0.17 kg |
