ESP Aperta Single Door External Proximity Keypad Kit c/w IP55 Mushroom Exit Button (Black Keypad) (EZT3KXTB)
SKU
EZT3KXTB
£427.49
£356.24
ESP Aperta Single External Door Black Proximity Keypad Kit c/w IP55 Mushroom Exit Button (EZT3KXTB)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Single Door External Proximity Keypad Kit c/w IP55 Mushroom Exit Button (Black Keypad) (EZT3KXTB)

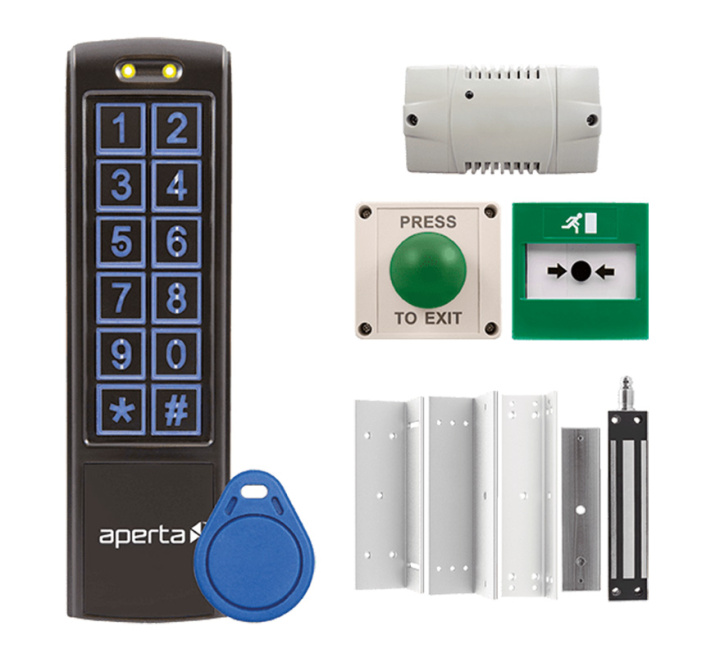

The ESP Aperta Single External Door Proximity Keypad Kit comes with an IP55 Mushroom Exit Button (EZT3KXT). A complete entry system in one box comprising of:
- EZTAGB Proximity & Keypad Door Entry, Black
- EZT3ST10 Proximity Tags
- A1ML300XT Aperta External IP68 300kg Holding Force Magnetic Lock c/w Z & L Bracket
- EVBPSBB Boxed Power Supply
- EVEXITMIP55 IP55 Exit Button
- EVEBGEXT2 IP67 Green Emergency Call Point
Key Features of the EZT3KXTB |
|---|
|
> Complete entry system in one box comprising of:
> EZTAGB IP65 Proximity Door Entry Keypad, Black > EZT3ST10 Proximity Tags > A1ML300XT Aperta External IP68 300kg Holding Force Magnetic Lock c/w Z & L Bracket > EVBPSBB Boxed Power Supply > EVEXITMIP55 IP55 Exit Button > EVEBGEXT2 IP67 Green Emergency Call Point |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | EZT3KXTB |
Write Your Own Review
FAQ’s for ESP Aperta Single Door External Proximity Keypad Kit c/w IP55 Mushroom Exit Button (Black Keypad) (EZT3KXTB)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Single Door External Proximity Keypad Kit c/w IP55 Mushroom Exit Button (Black Keypad) (EZT3KXTB)
| Code: | EZT3KXTB |
| Description: | ESP Aperta Single External Door Proximity Keypad Kit c/w IP55 Mushroom Exit Button, Black |
| Component 1: EZTAGB - Proximity & Keypad Door Entry | |
| Dimensions: | 150mm x 44mm x 24mm |
| Material / finish: | Aluminium / Black |
| Mounting: | Surface |
| Fob Reader Operating Frequency: | 125 KHz |
| Fob Reader Operating Distance: | <50mm |
| PIN length: | 2 - 6 digits |
| Max. capacity: | Zone 1; 1000 Fob/PIN Zone 2; 10 Fob/PIN |
| Backlight: | Keys; Blue LEDs |
| Tamper facility: | Yes |
| Status indication: | Red, Green, and Amber LEDs |
| Operating voltage: | 12 - 24 VDC |
| Operating current: | 110 mA |
| Unlatched relay time: | 1 - 99 seconds |
| Max. switchable load: | 30V @ 4A |
| Operation type: | Latched & unlatched |
| Lock outputs: | 2 |
| Relay types: | Normally Open & Normally Closed; Volt-Free |
| Ingress protection: | IP65 |
| Component 2: EVBPSBB - Power Supply Unit with Battery Backup x 1 | |
| Dimensions: | 129 x 73 x 50mm |
| Materials: | ABS |
| Mounting: | Surface only |
| Supply voltage: | 100 - 230 VAC |
| Output type: | Configurable Normally Open or Normally Closed |
| No. of outputs: | Configurable Normally Open or Normally Closed2 (1 x Switched & 1 x Constant) |
| Lock output: | 12V DC @ 1.5A |
| Operating temperature: | 0 to +50°C |
| Ingress protection: | IP20 |
| Component 3: EVEXITMIP55 - Push to Exit Mushroom Release Button IP55 x 1 | |
| Dimensions: | 85 x 80 x 85mm |
| Material: | ABS |
| Mounting: | Surface only |
| Relay voltage: | 30V |
| Contact type: | Normally Open & Normally Closed |
| Output type: | Clean Contact |
| Operating temperature: | 0 to +50°C |
| Ingress protection: | IP55 |
| Weight: | 0.2kg |
| Component 4: EVEBGEXT2 - IP67 Surface Green Emergency Resettable Call Point x 1 | |
| Dimensions: | 89 x 89 x 72mm |
| Material / finish: | Polycarbonate / Green |
| Mounting: | Surface only |
| Max. cable size: | 2.5mm² |
| Output relay rating: | 3A (12 to 24V DC & 125 to 250V AC) |
| Contact type: | Double Pole Double Throw |
| Operating temperature: | -25 to +65°C |
| Ingress protection: | IP67 |
| Weight: | 0.282 kg |
| Component 5: A1ML300XT - External 300kg Holding Force Magnetic Lock with Z & L Brackets | |
| Dimensions: | 47 x 220 x 28mm |
| Material / finish: | Aluminium Alloy / Brushed Silver |
| Mounting: | Surface only |
| Max. holding force: | 300 kg |
| Operating voltage: | 12 & 24 VDC |
| Ingress protection: | IP68 |
| Operating temperature: | -20 to +50°C |
