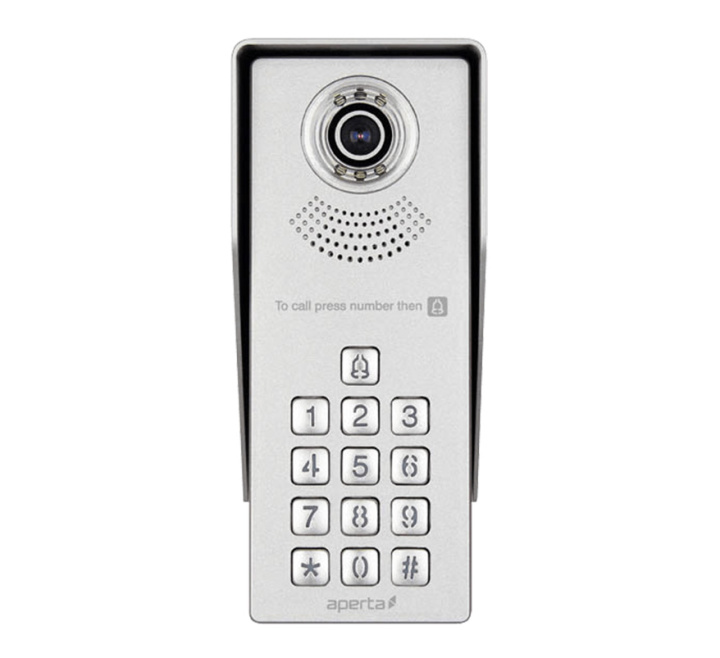

ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad (APDSMW)
SKU
APDSMW
£195.10
£162.58
ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad (APDSMW)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad (APDSMW)
The ESP Aperta MultiWay Video Door Station (APDSMW) is a quality, hands-free colour video door entry product specifically for installation in multiple apartments. Supporting up to 32 apartments in one system and requiring only 2 wires throughout with all outdoor stations and monitors powered by a single power supply. The keypad multi way door station allows both apartment calling plus door unlocking by passcode, no need for 2 separate keypads. The keypad apartment calling also means that no additional buttons or panels are required, keeping the installation simple, neat and compact.
Key Features of the APDSMW |
|---|
|
> Waterproof IP55 metal multi way outdoor station
> High resolution colour Camera > Built in keypad for door calling and code unlocking > Simple 2 core cable installation > Supports up to 32 apartments (Address Numbers 1-32) |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | APDSMW |
Write Your Own Review
FAQ’s for ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad (APDSMW)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad (APDSMW)
| Code: | APDSMW |
| Description: | ESP Aperta MultiWay Video Door Station |
| Dimensions: | 126mm x 87mm x 53mm |
| Features: | Outdoor Station rings so that the user knows whether the call has been answered, calls last up to 30 seconds |
| Materials: | Aluminium Alloy |
| Mounting: | Surface & Flush (requires APDSKPFMS) Mounted |
| Operating voltage: | 24 VDC (BUS) |
| Global Selections: | Normally Open or Normally Closed; Volt-Free or 12V DC300mA |
| Effective distance to power supply: | 50m |
| Lock outputs: | 2 |
| Network: | Recommended BUS cable: Cat5e or higher Communication Protocol: BUS |
| Illumination: | 5 White light LEDs |
| Sensitivity (Lux): | 0.1 |
| Sensor size: | 1/3 inches |
| Lens size: | 3.6mm |
| Viewing angle: | 70o |
| Audio: | Full duplex |
| Programming: | User interaction: 0 - 9, * and # Code lengths: 2 - 6 Max. call-able address: 32 Max. access codes: 32 PINs (99 when set to multi-way), (10 when set to single-way) |
| Environment: | Ingress protection: IP55 Operating temp: -20 to +40o C |
| Accessories: | EVBPSBB: 12V Lock power supply with battery backup APPOWMW: Aperta Multiway power supply APSEPMW: Aperta Multiway BUS Seperator APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK: Compatible Aperta Monitors ENTERD: Flush Electric Lock ENTERD-YLR: Surface Electric Lock |
| Supplied: | Fixing Screws, and Wall Plugs, User Manual |
| Warranty: | 3 years |
| Weight: | 0.064 kg |
