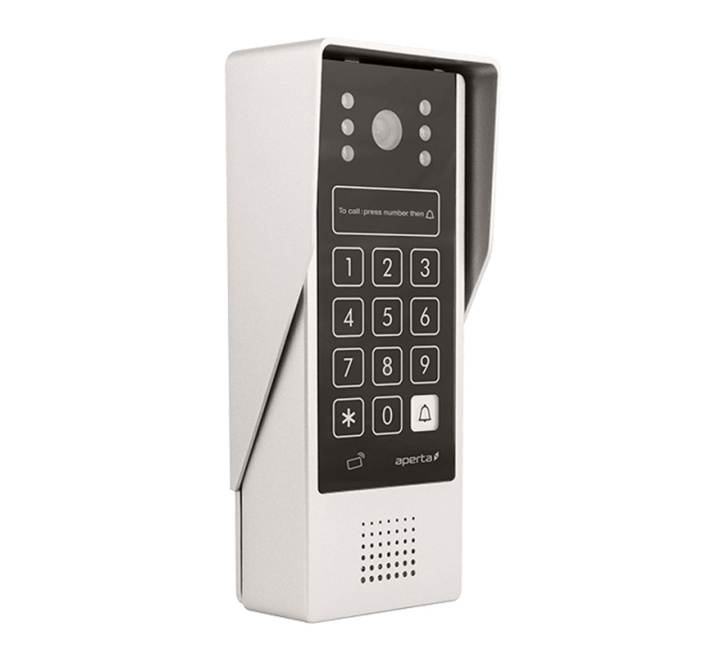

ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad & Proximity Reader (APDSPXMW)
SKU
APDSPXMW
£287.64
£239.70
ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad & Proximity Reader (APDSPXMW)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad & Proximity Reader (APDSPXMW)
The ESP Aperta MultiWay Proximity Video Door Station (APDPXMW) is a quality, hands-free colour video door entry product specifically for installation in multiple apartments. Supporting up to 32 apartments in one system and requiring only 2 wires throughout with all outdoor stations and monitors powered by a single power supply. The keypad multi way door station allows both apartment calling plus door unlocking by passcode, no need for 2 separate keypads. The keypad apartment calling also means that no additional buttons or panels are required, keeping the installation simple, neat and compact.
Key Features of the APDSPXMW |
|---|
|
> Waterproof IP55 metal multiway outdoor station
> High resolution colour camera > Capacitive keypad for apartment calling, proximity and code unlocking > Simple 2-core cable installation > Complete with 10 pre-registered user tags > Supports up to 32 apartments ( Address Numbers 1-32) > 10,000 user tags supported |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | APDSPXMW |
Write Your Own Review
FAQ’s for ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad & Proximity Reader (APDSPXMW)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Multi Way IP55 Video Door Entry Station with Keypad & Proximity Reader (APDSPXMW)
| Code: | APDSPXMW |
| Description: | ESP Aperta MultiWay Proximity Video Door Station |
| Dimensions: | 200mm x 87mm x 53mm |
| Features: | Outdoor Station rings so that the user knows whether the call has been answered, calls last up to 30 seconds |
| Materials: | Aluminium Alloy |
| Mounting: | Surface & Flush (requires APDSKPFMS) Mounted |
| Operating voltage: | 24 VDC (BUS) |
| Global Selections: | Normally Open or Normally Closed; Volt-Free or 12V DC300mA |
| Effective distance to power supply: | 50m |
| Lock outputs: | 2 |
| Network: | Recommended BUS cable: Cat5e or higher Communication Protocol: BUS |
| Illumination: | 5 White light LEDs |
| Sensitivity (Lux): | 0.1 |
| Sensor size: | 1/3 inches |
| Lens size: | 3.6mm |
| Viewing angle: | 70o |
| Audio: | Full duplex |
| Programming: | User interaction: 0 - 9, * and Bell Code lengths: 2 - 6 Max. call-able address: 32 Max. access codes: 32 PINs (99 when set to multi-way), (10 when set to single-way) and 10,000 tags |
| Environment: | Ingress protection: IP55 Operating temp: -20 to +40o C |
| Accessories: | EVBPSBB: 12V Lock power supply with battery backup APPOWMW: Aperta Multiway power supply APSEPMW: Aperta Multiway BUS Seperator APMONW, APMONB, APMONWG, APMONBG, APAUDH, APAUDHBLK: Compatible Aperta Monitors ENTERD: Flush Electric Lock ENTERD-YLR: Surface Electric Lock |
| Supplied: | Fixing Screws, and Wall Plugs, User Manual, 10 x Access Fobs, 1 x Green Programming add Fob, 1 x Red Programming removal Fob |
| Warranty: | 3 years |
| Weight: | 0.064 kg |
