ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (White) (A1IPKW)
SKU
A1IPKW
£481.62
£401.35
ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (White) (A1IPKW)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (White) (A1IPKW)

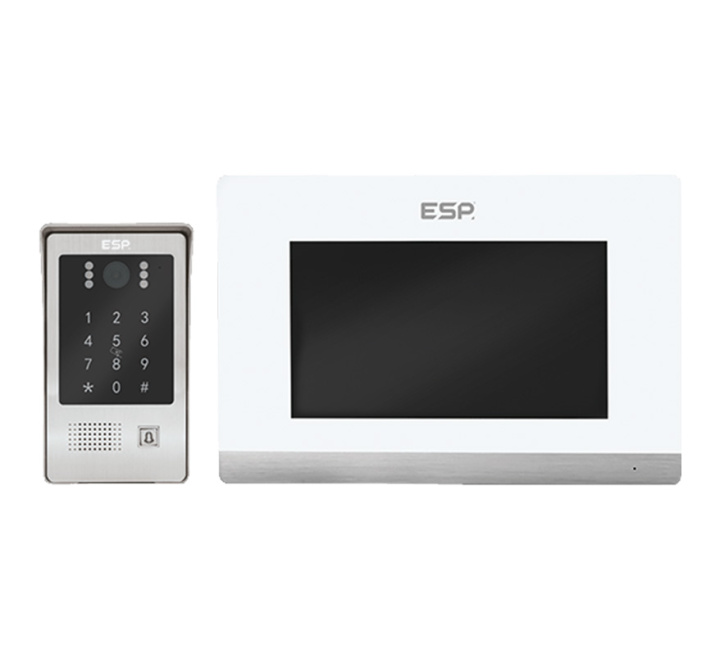

This ESP Aperta A1IPKW is an IP PoE (Power over Ethernet) Single Way Kit with Switch. This kit comprises:
- 1 x Brushed silver single-way Outdoor Station (IP65) HD with a proximity reader
- 1 x White PoE Monitor together with the appropriate App
- 1 x 4-Channel PoE Switch
Simply wired using Cat5E utilising Power over Ethernet technology. Powered by Click Smart+ Aperta monitors support both Ethernet & WiFi internet connections, allowing users to use their Door Entry System on their Smart Device. HD Video & Full Duplex Audio. The Click Smart+ APP allows you to be home even when you are not.
Key Features of the A1IPKW |
|---|
|
> Simple IP PoE installation
> User Friendly Touch Screen GUI Monitor & Outdoor Station Included > HD Live 7" Video & Full Duplex Audio > Clicksmart+ APP integration with Ethernet & Wi-Fi Connectivity |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | A1IPKW |
Write Your Own Review
FAQ’s for ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (White) (A1IPKW)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (White) (A1IPKW)
| Code: | A1IPKW |
| Description: | ESP Aperta IP PoE Single Way Kit with Switch, White |
Component 1: A1IPVDS - PoE Single Way Outdoor Station IP65 HD with Proximity Reader x 1 | |
| Dimensions: | 150mm x 84mm x 33mm |
| Materials / finish: | Aluminium Alloy / Brushed Silver |
| Mounting: | Surface & flush |
| Fobs supported: | 200 |
| Fob operating frequency: | 13.56MHz |
| Operating voltage: | 15 VDC |
| Power consumption: | <150 mA |
| Camera: | 1.0MP CMOS Low Illumination |
| Viewing angle: | 110° Horizontal |
| Screen size: | 4.3” Colour TFT LCD |
| Video compression: | H.264 |
| Audio: | Noise Suppression & Echo Cancellation |
| Programming: | User interaction: Keypad; PIN length: 6 |
| Inputs & outputs: | Lock output; 12VDC, NO & NC Contacts |
| Impact rating: | IK10 |
| Ingress protection: | IP65 |
| Operating temperature: | -10 to +50°C |
| Relative humidity resistance: | <90% |
Component 2: A1IPMW - PoE Monitor, White with App x 1 | |
| Dimensions: | 151mm x 226mm x 20.5mm |
| Materials / finish: | Polycarbonate & Aluminium / White gloss |
| Mounting: | Wall mounted |
| Audio: | Full duplex |
| Operating voltage: | 15 VDC |
| Secondary power source: | PoE |
| Network connection type: | WiFi & LAN |
| Effective distance to monitor: | 100 (if wiring point-to-point) |
| Power consumption: | Standby: <250mA, Operating: 600mA |
| Screen size: | 7 inches (TFT LCD) |
| Resolution: | 1024 x 600 |
| Recording storage device: | Micro SD card (32 GB max) |
| Recording format: | JPEG |
| User interaction: | Touch screen |
| Call duration: | 120 sec |
| Recommended BUS cable: | CAT-5e 4-Pair 0.4mm² |
| Operating temperature: | -10 to +50°C |
Component 3: 4 Channel PoE Switch x 1 | |
| Dimensions: | 130mm x 40mm x 195mm |
| Operating voltage: | 100 - 240 VAC |
| Power consumption: | Standby: <3W; Full Load: <65W |
| Status indication: | LED indicators; PWR (Green), Network L/A (Yellow), PoE (Green) |
| Output voltage: | 48 - 52 VDC @1.85A |
| Network rate: | 0.98 Mbps |
| PoE ports: | 4 x 10/100Base-TX |
| Uplink RJ45 Port (Mbps): | 2 x 10/100Base-TX |
| PoE power source: | 30W per Port, 802.3af/at; 96W Total |
| Protocol type: | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
| Modes available: | Extend & VLAN |
| Switching capacity: | 1.6 Gbps (Non-blocking) |
| MAC: | 1k |
| Buffer memory: | 768k |
| Jumbo frame: | 9.6k |
Warranty for kit items: | 3 years |
