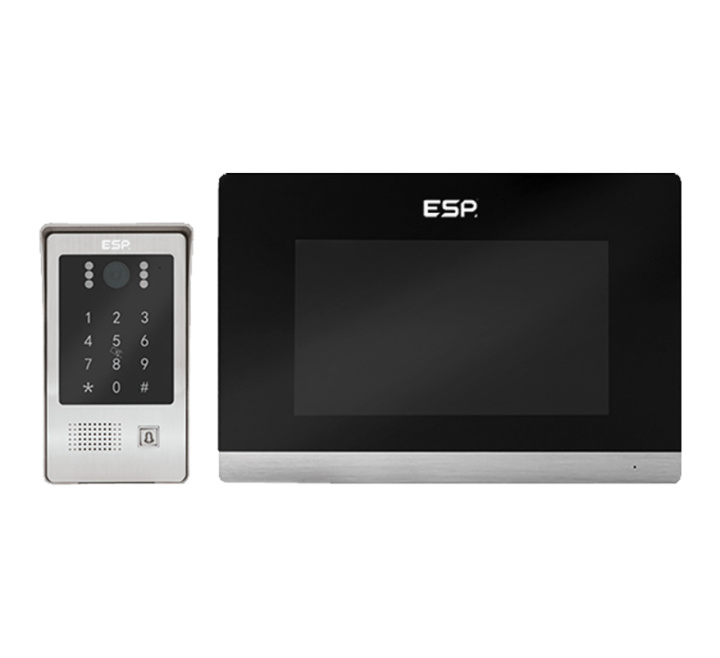

ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (Black) (A1IPKB)
SKU
A1IPKB
£481.62
£401.35
ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (Black) (A1IPKB)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (Black) (A1IPKB)
The ESP Aperta IP PoE Single Way Kit with switch in black (A1IPKB) is all you need in one box to keep your home safe and secure. With a 7” HD Touch screen monitor that supports both Ethernet and WiFi for pairing to the Click Smart+app that allows users to answer calls and unlock the door from their Smart Device. HD video and duplex audio. Enclosed in an IP65 rated housing with a number of different electronic lock interfaces. The IP PoE Switch supports up to 4 devices. 2 through ports are supplied with each kit for easy installation.
Key Features of the A1IPKB |
|---|
|
> Simple IP PoE installation
> User Friendly Touch Screen GUI Monitor & Outdoor Station Included > HD Live 7" Video & Full Duplex Audio > Clicksmart+ APP integration with Ethernet & Wi-Fi Connectivity |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | A1IPKB |
Write Your Own Review
FAQ’s for ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (Black) (A1IPKB)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta IP PoE Single Way Video Door Entry Kit with Switch (Black) (A1IPKB)
| Code: | A1IPKB |
| Description: | ESP Aperta IP PoE Single Way Kit with Switch, Black |
Component 1: A1IPVDS - PoE Single Way Outdoor Station IP65 HD with Proximity Reader x 1 |
|
| Dimensions: | 150mm x 84mm x 33mm |
| Materials / finish: | Aluminium Alloy / Brushed Silver |
| Mounting: | Surface & flush |
| Fobs supported: |
200 |
| Fob operating frequency: |
13.56MHz |
| Operating voltage: |
15 VDC |
| Power consumption: | <150 mA |
| Camera: | 1.0MP CMOS Low Illumination |
| Viewing angle: | 110° Horizontal |
| Screen size: | 4.3” Colour TFT LCD |
| Video compression: | H.264 |
| Audio: | Noise Suppression & Echo Cancellation |
| Programming: | User interaction: Keypad; PIN length: 6 |
| Inputs & outputs: |
Lock output; 12VDC, NO & NC Contacts |
| Impact rating: | IK10 |
| Ingress protection: | IP65 |
| Operating temperature: | -10 to +50°C |
| Relative humidity resistance: | <90% |
Component 2: A1IPMB - PoE Monitor Black with App x 1 |
|
| Dimensions: | 151mm x 226mm x 20.5mm |
| Materials / finish: | Polycarbonate & Aluminium / Black gloss |
| Mounting: | Wall mounted |
| Audio: | Full duplex |
| Operating voltage: | 15 VDC |
| Secondary power source: | PoE |
| Network connection type: |
WiFi & LAN |
| Effective distance to monitor: |
100 (if wiring point-to-point) |
| Power consumption: |
Standby: <250mA, Operating: 600mA |
| Screen size: |
7 inches (TFT LCD) |
| Resolution: | 1024 x 600 |
| Recording storage device: |
Micro SD card (32 GB max) |
| Recording format: |
JPEG |
| User interaction: |
Touch screen |
| Call duration: |
120 sec |
| Recommended BUS cable: |
CAT-5e 4-Pair 0.4mm² |
| Operating temperature: |
-10 to +50°C |
Component 3: 4 Channel PoE Switch x 1 |
|
| Dimensions: | 130mm x 40mm x 195mm |
| Operating voltage: | 100 - 240 VAC |
| Power consumption: | Standby: <3W; Full Load: <65W |
| Status indication: | LED indicators; PWR (Green), Network L/A (Yellow), PoE (Green) |
| Output voltage: | 48 - 52 VDC @1.85A |
| Network rate: | 0.98 Mbps |
| PoE ports: | 4 x 10/100Base-TX |
| Uplink RJ45 Port (Mbps): | 2 x 10/100Base-TX |
| PoE power source: | 30W per Port, 802.3af/at; 96W Total |
| Protocol type: | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
| Modes available: | Extend & VLAN |
| Switching capacity: | 1.6 Gbps (Non-blocking) |
| MAC: | 1k |
| Buffer memory: | 768k |
| Jumbo frame: | 9.6k |
Warranty for kit items: |
3 years |
