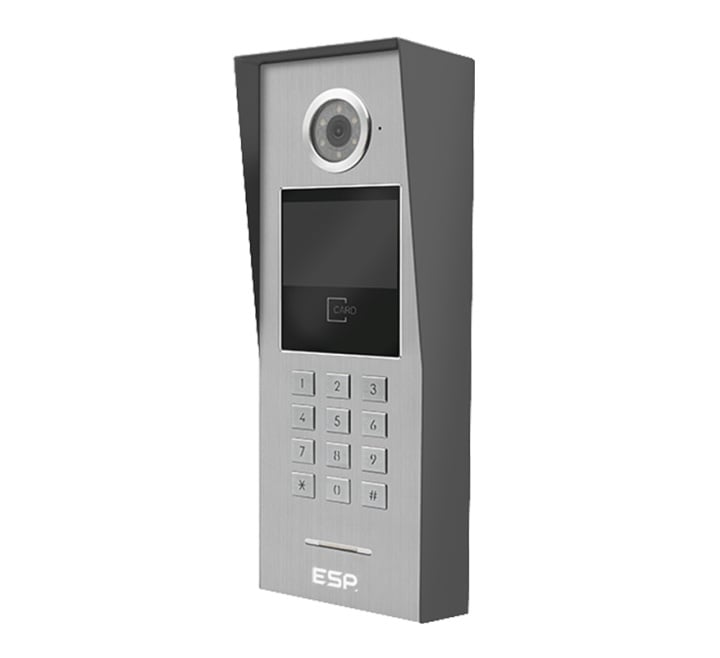

ESP Aperta IP PoE Multi Way Video IP65 Outdoor Entry Station with Proximity Reader (A1IPDSM1)
SKU
A1IPDSM1
£428.18
£356.82
ESP Aperta IP PoE Multi Way Video IP65 Outdoor Entry Station with Proximity Reader (A1IPDSM1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta IP PoE Multi Way Video IP65 Outdoor Entry Station with Proximity Reader (A1IPDSM1)
The ESP Aperta IP PoE Multi Way Outdoor Station HD with Proximity Reader (A1IPDSM1) has the capacity to accommodate multiple users while maintaining high performance. Ideal for large apartment complexes. Quick and easy installation.
Key Features of the A1IPDSM1 |
|---|
|
> Multi Way Outdoor Station
> Simple IP PoE installation > HD Video & Full Duplex Audio > IP65 Ingress Protection > Built-in Keypad & Proximity Reader > User Friendly 4” GUI Display > Fob reader for unlocking door > Audio message alerts user if the door has been unlocked |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | A1IPDSM1 |
Write Your Own Review
FAQ’s for ESP Aperta IP PoE Multi Way Video IP65 Outdoor Entry Station with Proximity Reader (A1IPDSM1)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta IP PoE Multi Way Video IP65 Outdoor Entry Station with Proximity Reader (A1IPDSM1)
| Code: | A1IPDSM1 |
| Description: | ESP Aperta IP PoE Multi Way Outdoor Station HD with Proximity Reader |
| Dimensions: | 365mm x 140mm x 50mm |
| Supplied: | Weather Shield & Mounting Casing, 4 x Double Terminal Blocks, 1 x Triple Terminal Block, 7 core Cable (1m), 4 core cable (1.0m), Screw & Rawl plug pack, Foam Gasket, Quick Start Guide |
| Accessories: | A1IPT10: Aperta IP 13.56MHz Pack of 10 Tags |
| Horizontal viewing angle: | 90° |
| Operating voltage: | 15 VDC |
| Secondary power source: | PoE 802.3af/at |
| Power consumption: | <150 mA |
| Lock output: | 12VDC, NO & NC Contacts |
| Network rate: | 10/100/1000 Mbps Self-adaptive Ethernet |
| Audio: | Full duplex |
| Camera: | 1.0MP CMOS Low Illumination |
| Screen size: | 4.3” Colour TFT LCD |
| Video compression: | H.264 |
| Viewing angle: | 90o horizontal |
| Audio: | Noise Suppression & Echo Cancellation |
| User interaction: | Keypad & GUI via LCD Screen |
| Impact rating: | IK10 |
| Operating temperature: | -10 to +50°C |
| Relative humidity resistance: | <90% |
| Illumination: | 5 LEDs |
| Power: | PoE & DC 15V1A |
| Code length: | 6 |
| Fob reader frequency: | Built-In 13.56MHz Card Reader |
| Lock outputs: | DC12V, N/O & N/C Volt-Free, Clean Contacts |
| Fob reader operating frequency: | 13.56MHz |
| Fobs supported: | 200 |
| Mounting: | Surface & flush |
| Finish: | Brushed silver |
| Materials: | Aluminium Alloy |
| IP Rating: | IP65 |
| Warranty: | 3 years |
