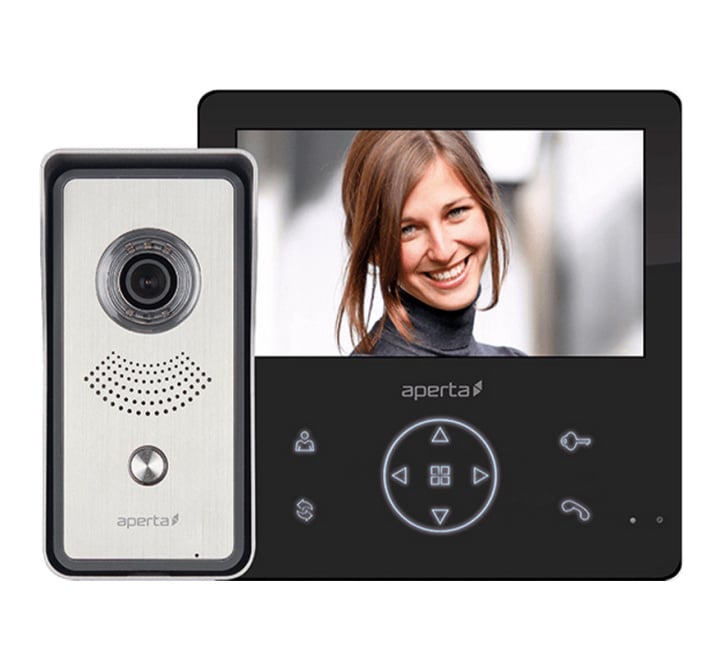

ESP Aperta Single Way Video Door Entry Kit with Record Facility (Black Monitor) (APKITGBLK)
SKU
APKITGBLK
£359.60
£299.67
ESP Aperta Single Way Video Door Entry Kit with Record Facility (Black Monitor) (APKITGBLK)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Single Way Video Door Entry Kit with Record Facility (Black Monitor) (APKITGBLK)
The ESP Aperta 1 Way Video Door Entry Kit with Record Facility (APKITGBLK) is a colour Video Door Entry System with the facility to record. Supplied with a black monitor.
Key Features of the APKITGBLK |
|---|
|
> Record facility
> Black monitor included > Simple 2 core cable installation > Single power supply (included) > Clear high resolution colour picture on 7” hands free TFT monitor > High-Resolution Colour Camera > On screen menu for simple system set up & customisation > Optional still or video recording and playback of callers (4GB SD card included) |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | APKITGBLK |
Write Your Own Review
FAQ’s for ESP Aperta Single Way Video Door Entry Kit with Record Facility (Black Monitor) (APKITGBLK)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Single Way Video Door Entry Kit with Record Facility (Black Monitor) (APKITGBLK)
| Code: | APKITGBLK |
| Description: | ESP Aperta 1 Way Video Door Entry Kit with Record Facility, Black Monitor |
| Supplied: | Fixing Screws, and Wall Plugs User Manual |
| Accessories: | EVBPSBB: 12V Lock power supply with battery backup APPOWSWDR: Din Mounted BUS power supply APMONW: Aperta BUS Monitor in white APMONB: Aperta BUS Monitor in Black APMONWG: Aperta GUI BUS Monitor in white APMONBG: Aperta GUI BUS Monitor in Black APAUDH: Aperta BUS Audio Only Handset in White APAUDHBLK: Aperta BUS Audio Only Handset in Black ENTERD: Flush Electric Lock ENTERD-YLR: Surface Electric Lock |
| Component 1 APDSSW - Singleway Video Door Station x 1 | |
| Dimensions: | 165mm x 85mm x 53mm |
| Materials: | ABS |
| Mounting: | Surface |
| Audio: | Full duplex |
| Sensor size: | 1/3 inch |
| Lens size: | 3.6mm |
| Weight: | 0.39 kg |
| Operating voltage: | 24 VDC (BUS) |
| Effective distance to power supply: | 50m |
| Global selections: | Normally Open or Normally Closed; Volt-Free or 12V, DC300mA |
| Lock outputs: | 2 |
| Illumination: | 5 white light LEDs |
| Sensitivity: | 0.1 Lux |
| Programming: | Code lengths: 4 - 6 |
| Communication protocol: | BUS |
| Network: | Recommended BUS cable: Cat5e or higher |
| Environment: | Ingress protection: IP55 Operating temp: -20 to +40o C |
| Component 2 APMONBG - 7’’ Colour Video Door Entry Monitor with Record Facility x 1 | |
| Dimensions: | 183mm x 185mm x 20mm |
| Materials / finish: | ABS / Black |
| Mounting: | Surface |
| Audio: | Full duplex |
| Operating voltage: | 24 VDC (BUS) |
| Effective distance to power supply: | 100m |
| Master/slave: | Yes (set by menus) |
| Detection zone end of line: | Yes (set by menus) |
| Screen size: | 7 inches |
| Illumination: | Backlight screen and buttons |
| No. of speakers: | 2 |
| Adjustments: | Volume, Brightness, and Contrast Dials |
| Recording storage device: | Micro SD Card (32GB Max.) |
| User interaction: | Graphical user interface 9 buttons |
| Programming type: | Graphical user interface |
| Max. settable address: | 32 (set by menus) |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP20 |
| Weight: | 0.55kg |
| Component 3: APPOWSWDR - Combined Power & Bus Separator Unit x 1 | |
| Dimensions: | 90mm x 60mm x 105mm |
| Materials: | ABS |
| Mounting: | Surface or DIN rail |
| Supply voltage: | 100 - 230 VAC |
| BUS output: | 24V DC @ 800mA |
| Effective distance to doorstation: | 50m |
| Effective distance to monitor: | 100m |
| Communication protocol: | BUS |
| Recommenced BUS cable: | Cat5e or higher |
| Ingress protection: | IP20 |
