ESP Aperta Single Way Video Door Entry Kit with Keypad & Record Facility (White Monitor) (APKITKPG)
SKU
APKITKPG
£389.02
£324.18
ESP Aperta Single Way Video Door Entry Kit with Keypad & Record Facility (White Monitor) (APKITKPG)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Single Way Video Door Entry Kit with Keypad & Record Facility (White Monitor) (APKITKPG)

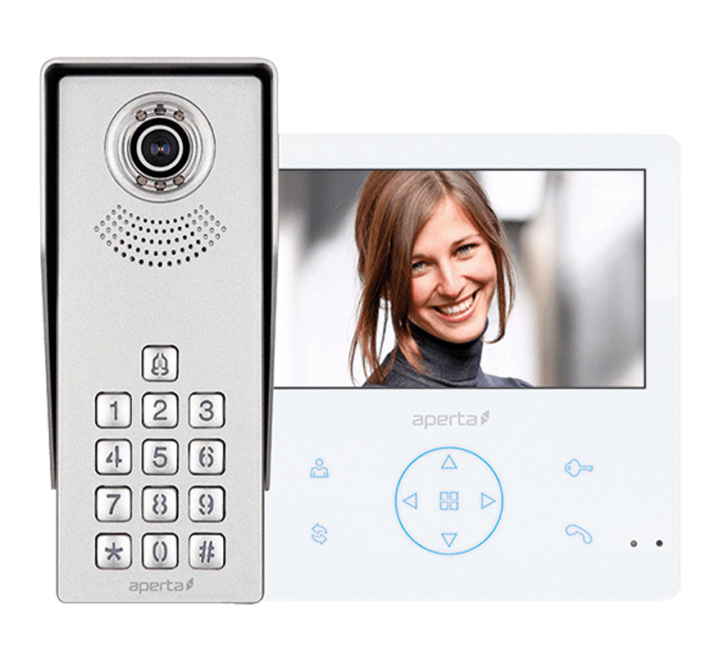

The ESP Aperta 1 Way Video Door Entry Kit comprises a singleway video door station with keypad and a white, 7” colour video door entry monitor with the facility to record. For installation in single dwellings. Requires only 2 wires throughout and the outdoor station and monitor are powered by a single power supply.
Key Features of the APKITKPG |
|---|
|
> White HD monitor
> Simple 2 core cable installation > Single power supply (included) supports all monitors and outdoor stations in a flexible combination of up to 5 devices > Clear high resolution colour picture on 7” hands free TFT monitor > Outdoor station with built in keypad for code door unlocking > High-Resolution Colour Camera > On screen menu for simple system set up & customisation > Optional still or video recording and playback of callers (4GB SD card included) |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | APKITKPG |
Write Your Own Review
FAQ’s for ESP Aperta Single Way Video Door Entry Kit with Keypad & Record Facility (White Monitor) (APKITKPG)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Single Way Video Door Entry Kit with Keypad & Record Facility (White Monitor) (APKITKPG)
| Code: | APKITKPG |
| Description: | ESP Aperta 1 Way Video Door Entry Kit with Keypad and Record Facility, White Monitor |
| Supplied: | Fixing Screws, Wall Plugs, User Manual |
| Accessories: | EVBPSBB: 12V Lock power supply with battery backup APPOWSWDR: Din Mounted BUS power supply APMONW: Aperta BUS Monitor in white APMONB: Aperta BUS Monitor in Black APMONWG: Aperta GUI BUS Monitor, white APMONBG: Aperta GUI BUS Monitor,Black APAUDH: Aperta BUS Audio Only Handset, White APAUDHBLK: Aperta BUS Audio Only Handset,Black ENTERD: Flush Electric Lock ENTERD-YLR: Surface Electric Lock APDSKPFMS |
| Component 1 APDSSWKP - Singleway Video Door Station with Keypad x 1 | |
| Dimensions: | 200mm x 87mm x 53mm |
| Materials: | Aluminium Alloy |
| Mounting: | Surface & Flush (requires APDSKPFMS) Mounted |
| Audio: | Full duplex |
| Sensor size: | 1/3 inch |
| Lens size: | 3.6mm |
| Weight: | 0.64 kg |
| Operating voltage: | 24 VDC (BUS) |
| Effective distance to power supply: | 50m |
| Global selections: | Normally Open or Normally Closed; Volt-Free or 12V, DC300mA |
| Lock outputs: | 2 |
| Illumination: | 5 White light LEDs |
| Sensitivity: | 0.1 Lux |
| User interaction: | 0 - 9, *, #, and Bell |
| Code lengths: | 2 - 6 |
| Max. access codes: | 10 |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP55 |
| Operating temperature: | -20 to +40°C |
| Component 2 APMONWG - 7’’ Colour Video Door Entry Monitor with Record Facility x 1 | |
| Dimensions: | 183mm x 185mm x 20mm |
| Materials / finish: | ABS / White |
| Mounting: | Surface |
| Audio: | Full duplex |
| Operating voltage: | 24 VDC (BUS) |
| Effective distance to power supply: | 100m |
| Master / slave: | Yes (set by menus) |
| Detection zone end of line: | Yes (set by menus) |
| Screen size: | 7 inches |
| Illumination: | Backlight screen and buttons |
| No. of speakers: | 2 |
| Adjustments: | Volume, Brightness, and Contrast Dials |
| Recording storage device: | Micro SD Card (32GB max) |
| User interaction: | Graphical User Interface 9 Buttons |
| Programming type: | Graphical User Interface |
| Max. settable address: | 32 (set by menus) |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP20 |
| Weight: | 0.55 kg |
| Component 3 APPOWSWDR - Combined Power & Bus Separator Unit x 1 | |
| Dimensions: | 90mm x 60mm x 105mm |
| Materials: | ABS |
| Mounting: | Surface or DIN Rail |
| Supply voltage: | 100 - 230 VAC |
| BUS output: | 24V DC @ 800mA |
| Effective distance to doorstation: | 50m |
| Effective distance to monitor: | 100m |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP20 |
