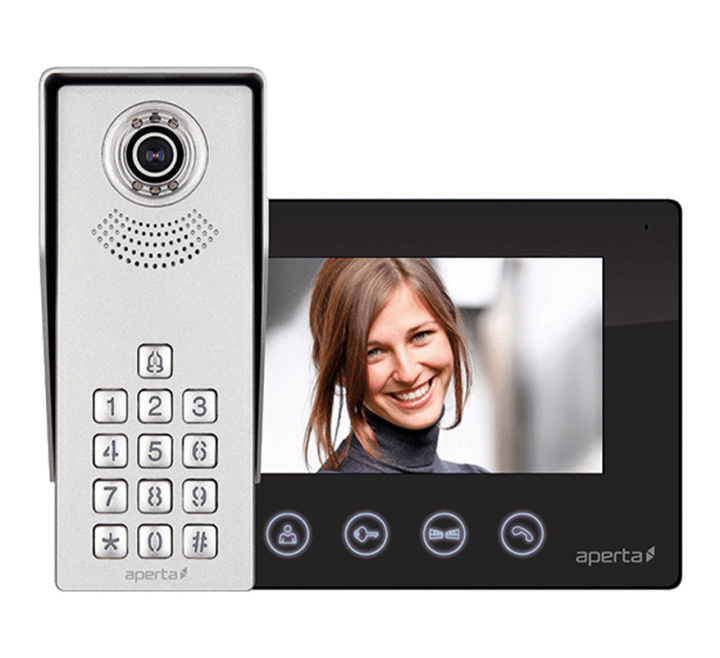

ESP Aperta Single Way Video Door Entry Kit with Keypad (Black Monitor) (APKITKPBLK)
SKU
APKITKPBLK
£328.42
£273.68
ESP Aperta Single Way Video Door Entry Kit with Keypad (Black Monitor) (APKITKPBLK)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Single Way Video Door Entry Kit with Keypad (Black Monitor) (APKITKPBLK)
The ESP Aperta Single Way Video Door Entry Kit with Keypad and Black Monitor (APKITKPBLK) is a quality, hands-free colour video door entry product specifically for installation in single dwellings. Requiring only 2 wires throughout and all outdoor stations and monitors powered by a single power supply. The ideal single way video door entry solution.
Key Features of the APKITKPBLK |
|---|
|
> Supplied with black HD monitor
> Simple 2 core cable installation > Single power supply (included) supports all monitors and outdoor stations in a flexible combination of up to 5 devices > Clear high resolution colour picture on 7” hands free TFT monitor > Outdoor station with built in keypad for code door unlocking |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | APKITKPBLK |
Write Your Own Review
FAQ’s for ESP Aperta Single Way Video Door Entry Kit with Keypad (Black Monitor) (APKITKPBLK)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Single Way Video Door Entry Kit with Keypad (Black Monitor) (APKITKPBLK)
| Code: | APKITKPBLK |
| Description: | ESP Aperta 1 Way Video Door Entry Kit with Keypad and Black Monitor |
| Component 1 APDSSWKP - Singleway Video Door Station with Keypad x 1 | |
| Dimensions: | 200mm x 87mm x 53mm |
| Audio: | Full duplex |
| Sensor size: | 1/3 inch |
| Lens size: | 3.6mm |
| Weight: | 0.64 kg |
| Operating voltage: | 24 VDC (BUS) |
| Effective distance to power supply: | 50m |
| Global selections: | Normally Open or Normally Closed; Volt-Free or 12V, DC300mA |
| Lock outputs: | 2 |
| Illumination: | 5 White light LEDs |
| Sensitivity: | 0.1 Lux |
| User interaction: | 0 - 9, *, #, and Bell |
| Code lengths: | 2 - 6 |
| Max. access codes: | 10 |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP55 |
| Operating temperature: | -20 to +40°C |
| Component 2 APMONB - 7’’ Colour Video Door Entry Monitor x 1 | |
| Dimensions: | 152mm x 215mm x 18mm |
| Materials / finish: | ABS / Black |
| Mounting: | Surface |
| Audio: | Full duplex |
| Operating voltage: | 24 VDC (BUS) |
| Effective distance to power supply: | 100m |
| Master / slave: | Yes (set by 6th DIP switch) |
| Detection zone end of line: | Yes (set by 7th DIP switch) |
| Screen size: | 7 inches |
| Illumination: | Backlight screen and buttons |
| No. of speakers: | 2 |
| Adjustments: | Volume, Brightness, and Contrast Dials |
| User interaction: | 4 buttons |
| Programming type: | 7 x DIP switches |
| Max. settable address: | 32 (set by first 5 DIP switches) |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP20 |
| Weight: | 0.45 kg |
