ESP Aperta Single Way Video Door Entry Kit with Black Monitor (APKITBLK)
SKU
APKITBLK
£298.99
£249.16
ESP Aperta Single Way Video Door Entry Kit with Black Monitor (APKITBLK)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for ESP Aperta Single Way Video Door Entry Kit with Black Monitor (APKITBLK)

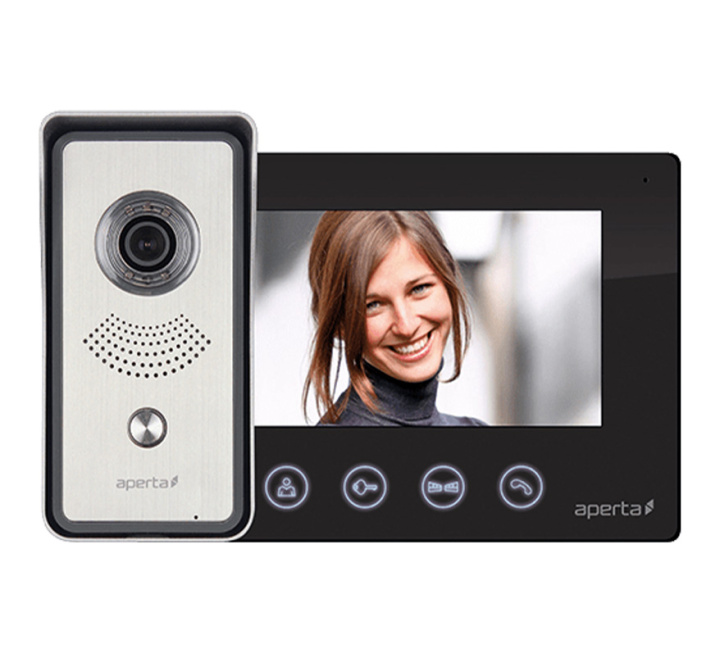

The ESP Aperta 1-Way Video Door Entry Kit comprises a singleway video door station, a black, 7” colour video door entry monitor and a combined power and Bus separator unit. For installation in single dwellings. Requires only 2 wires throughout and the outdoor station and monitor are powered by a single power supply.
Key Features of the APKITBLK |
|---|
|
> Supplied with black monitor
> Simple 2 core cable installation > Single power supply (included) supports all monitors and outdoor stations in a flexible combination of up to 5 devices > Clear high resolution colour picture on 7” hands free TFT monitor |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | APKITBLK |
Write Your Own Review
FAQ’s for ESP Aperta Single Way Video Door Entry Kit with Black Monitor (APKITBLK)
No questions yet. Be the first to ask the question!
Product Specification for ESP Aperta Single Way Video Door Entry Kit with Black Monitor (APKITBLK)
| Code: | APKITBLK |
| Description: | ESP Aperta 1-Way Video Door Entry Kit with Black Monitor |
| Component 1 APDSSW - Singleway Video Door Station x 1 | |
| Dimensions: | 165mm x 85mm x 53mm |
| Audio: | Full duplex |
| Materials: | ABS |
| Mounting: | Surface |
| Operating voltage: | 24 VDC (BUS) |
| Global Selections: | Normally Open or Normally Closed; Volt-Free or 12V DC300mA |
| Effective distance to power supply: | 50m |
| Lock outputs: | 2 |
| Programming: | Code lengths: 4 - 6 |
| Network: | Recommended BUS cable: Cat5e or higher Communication Protocol: BUS |
| Illumination: | 5 White light LEDs |
| Sensitivity (Lux): | 0.1 |
| Sensor size: | 1/3 inches |
| Lens size: | 3.6mm |
| Environment: | Ingress protection: IP55 Operating temp: -20 to +40o C |
| Weight: | 0.39 kg |
| Component 2 APMONB - 7’’ Colour Video Door Entry Monitor x 1 | |
| Dimensions: | 152mm x 215mm x 18mm |
| Materials / finish: | ABS / Black |
| Mounting: | Surface |
| Audio: | Full duplex |
| Operating voltage: | 24 VDC (BUS) |
| Effective distance to power supply: | 100m |
| Master / slave: | Yes (set by 6th DIP switch) |
| Detection zone end of line: | Yes (set by 7th DIP switch) |
| Screen size: | 7 inches |
| Illumination: | Backlight screen and buttons |
| No. of speakers: | 2 |
| Adjustments: | Volume, Brightness, and Contrast Dials |
| User interaction: | 4 buttons |
| Programming type: | 7 x DIP switches |
| Max. settable address: | 32 (set by first 5 DIP switches) |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP20 |
| Weight: | 0.45 kg |
| Component 3 APPOWSWDR - Combined Power & Bus Separator Unit x 1 | |
| Dimensions: | 90mm x 60mm x 105mm |
| Materials: | ABS |
| Mounting: | Surface or DIN Rail |
| Supply voltage: | 100 - 230 VAC |
| BUS Output: | 24V DC @ 800mA |
| Effective distance to doorstation: | 50m |
| Effective distance to monitor: | 100m |
| Communication protocol: | BUS |
| Recommended BUS cable: | Cat5e or higher |
| Ingress protection: | IP20 |
