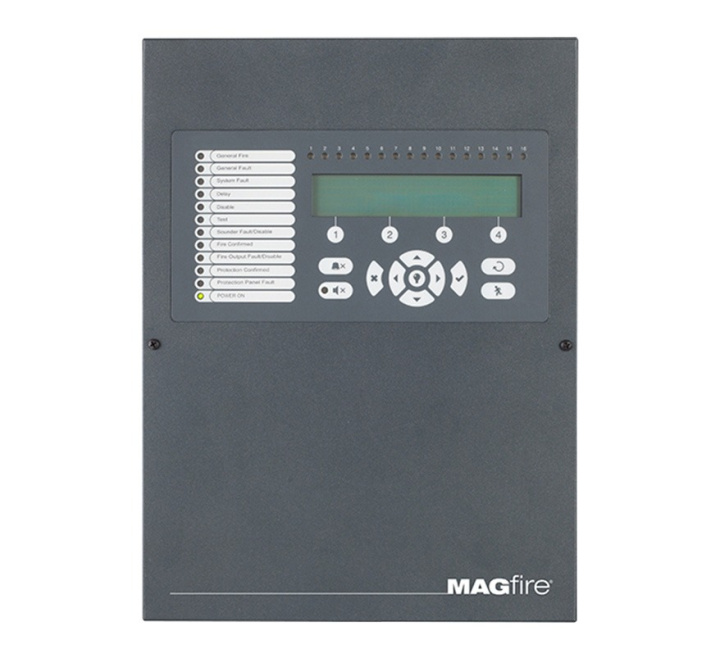

ESP MAGPRO 1-2 Loop 16 Zone Addressable Fire Alarm Panel (Grey) (MAGPRO16G)
SKU
MAGPRO16G
£437.83 £364.86
ESP MAGPRO 1-2 Loop 16 Zone Addressable Fire Alarm Panel (Grey) (MAGPRO16G)
Product Details for ESP MAGPRO 1-2 Loop 16 Zone Addressable Fire Alarm Panel (Grey) (MAGPRO16G)
The ESP MAGPRO16G offers the full power and flexibility of the MAGPRO 16-zone addressable fire panel, in a contemporary graphite grey enclosure. This stylish finish makes it the ideal solution for modern architectural spaces, commercial offices, and high-end interiors where aesthetics are as important as safety.
Engineered for straightforward installation and powerful performance, the MAGPRO16G is supplied as standard with one addressable loop, supporting up to 250 devices. It is easily expandable to two loops with a simple plug-in card (sold separately), doubling the system capacity. The panel is also fully networkable, allowing up to 32 MagPro panels to be connected, making it suitable for a wide range of applications from small buildings to large, complex sites.
Featuring a clear 4 x 40 character LCD display, the panel provides comprehensive event information and is simple to program via PC using the included software and a standard Micro USB connection. The system's 10,000 event log and loop & battery calculator software provide installers and maintenance engineers with powerful diagnostic tools.
Fully certified to EN54-2 & EN54-4 and CPR compliant, the MAGPRO16G combines high-end design with reliable performance and compliance.
Key Features of the MAGPRO16G |
|---|
| > 16 zones > Maximum 250 devices per loop > Memory Log: 10,000 events > Networkable up to 32 panels > Class change function > 4 x 40 character LCD display > Free programming software (available on request) > Micro USB port for PC connection > Loop & battery calculator software included > Certified to EN54–2 & 4 |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | MAGPRO16G |
| Product Series | MAGPRO |
| Colour | Grey |
| Primary Power Source | Mains Powered (230V) |
| Max No. of Loops Possible | 2 |
| Number of Loops (Fitted) | 1 |
| Number of Zones | 16 |
| System Type | Addressable |
| Protocol Compatibility | ESP MAGPRO |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for ESP MAGPRO 1-2 Loop 16 Zone Addressable Fire Alarm Panel (Grey) (MAGPRO16G)
No questions yet. Be the first to ask the question!
Product Specification for ESP MAGPRO 1-2 Loop 16 Zone Addressable Fire Alarm Panel (Grey) (MAGPRO16G)
| Code: | MAGPRO16G |
| Description: | ESP Addressable 16-Zone Fire Panel, Grey |
| Dimensions: | 320mm x 220mm x 80mm |
| Supplied: | 6 x 10k Ohm Resistors, 4 x 47k Ohm Resistor, 3 x 20K Ohm Resistor, 4 x 4A Quick-Blow Fuse (5x20mm), 2 x Panel Keys |
| Max. no. of events in log: | 10240 |
| Inputs: | Loops: 1 expandable to 2 Devices per loop: 250 Protocol: MAGPRO |
| Outputs: | 2 Sounders: 24v DC @ 500mA 4 Programmable relays: 24v DC @ 15A 3 monitored outputs: 24v DC @ 100mA 3 monitored inputs: Volt free contacts |
| Power: | Mains fail consumption:125mA DC – 1 LOOP Mains supply: 230V AC + 10%/ -15% Max. Loop current: 500mA DC Backup: 1 x 12V 18Ah |
| Volumes modes: | 2 (Low & High) |
| Device Loading Units (DLUs) - Low: | 13 |
| Operating voltage (Mains powered panel) | 25.5 -35 VDC |
| Operating Voltage (Battery Powered Panel): | 23 -26 VDC |
| Standby supply: | Up to 12V 17Ah (Battery Calculation Required) |
| PSU output: | 4.7A |
| Zones: | 16 |
| Loops: | 1 expandable to 2 |
| Auxiliary output: | 1; 24V DC @ 500mA |
| Unmonitored Outputs: | 4 (24VDC@15A) |
| Sound Output @ 1m (Low) (db): | 65+ |
| Sound Output @ 1m (High) (db): | 85+ |
| Communication protocol: | Custom (Closed) |
| Max. communication range: | Dependant on loop calculation |
| Operating temperature: | -5 to +40°C |
| Storage temperature: | -10 to +60°C |
| Humidity: | 0 - 95% |
| Standards: | BS EN 54-2, BS EN 54-4 |
| Accessories: | MAGDUOPK: Pack of 2 Keys BAT18: 12V 17Ah SLA Battery MAGPRO-PROG: Address Programming Tool For MAGPRO Devices MAGPRO16-L250: Single Loop Expander for 250 Devices MAGPRO-NIC: Network Interface Card MAGPRO Series Devices |
| Warranty: | 3 years |
| Weight: | 4.2kg (without battery) |
