Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

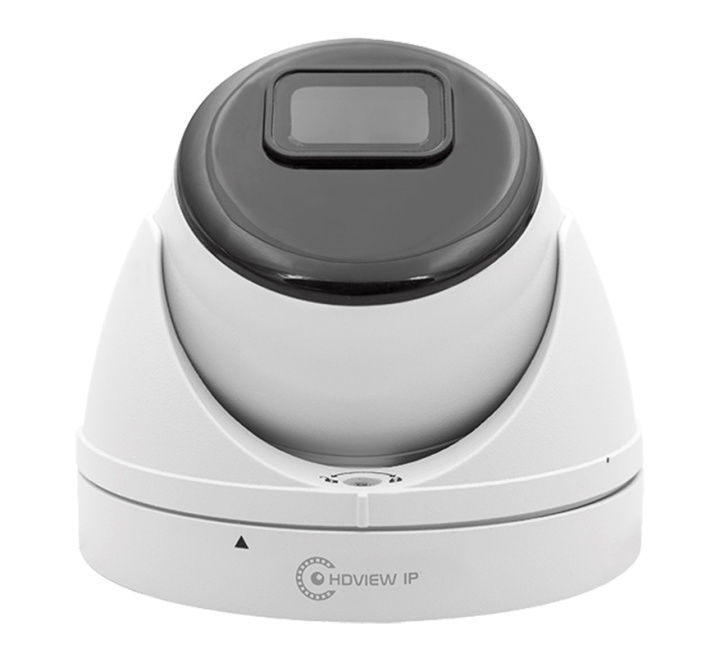

ESP HDview IP PoE 5MP 2.8mm Fixed Lens Dome Camera White (HDVIPC28FDW2)
SKU
HDVIPC28FDW2
ESP 5MP IP POE Dome Camera 2.8mm Fixed Lens with SD & MIC, White (HDVIPC28FDW2)
Discontinued
Alternative Products
Product Details for ESP HDview IP PoE 5MP 2.8mm Fixed Lens Dome Camera White (HDVIPC28FDW2)
The ESP HDVIPC28FDW2 is a white, IP PoE dome camera with a 2.8mm fixed lens, SD card and microphone. Suitable for day and night. IP66 rated.
Key Features of the HDVIPC28FDW2 |
|---|
|
> HD 5MP Resolution
> 2.8mm Fixed Lens > 1/2.7" Image Sensor > 30m Infrared LED Illumination > 97° Viewing Angle > H.265 Compression > ONVIF Compliant > Additional Features: SD Storage / Microphone > IP66 Housing Ingress Protection > 12vDC/PoE > <7W Power Consumption > Operating Temperature: -30 - +55°C |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | HDVIPC28FDW2 |
FAQ’s for ESP HDview IP PoE 5MP 2.8mm Fixed Lens Dome Camera White (HDVIPC28FDW2)
No questions yet. Be the first to ask the question!
Product Specification for ESP HDview IP PoE 5MP 2.8mm Fixed Lens Dome Camera White (HDVIPC28FDW2)
| Code: | HDVIPC28FDW2 |
| Description: | ESP 5MP IP POE Dome Camera 2.8mm Fixed Lens with SD&MIC, White |
| Dimensions: | 100mm x 100mm x 82mm |
| Accessories: | IPCDBW: IPC Deep Base - White IPIN1POE: 1 Channel POE Injector IPSW4POE: 4 Channel POE Switch IPSW8POE: 8 Channel POE Switch CABIP10 : 10m CAT-5e External Use Data Cable CABIP20: 20m CAT-5e External Use Data Cable CABIP40: 40m CAT-5e External Use Data Cable CABIP80: 80m CAT-5e External Use Data Cable Compatible with the range of HDView IP Network Video Recorders (NVRs) |
| Materials: / finish: | Powder coated aluminium / White |
| Mounting: | Surface |
| Operating voltage: | 12 VDC |
| Power consumption: | <9W |
| Other power sources: | PoE (IEEE802.3af) |
| B & W illumination: | 0 (@ IR ‘ON’) Lux |
| Colour illumination: | 0.05 (@ F1.2(AGC ‘ON’)) Lux |
| Effective pixels: | 5MP (2592 X 1944) |
| Video resolution: | 5MP (2592 X 1944) |
| Sensor size: | 1/2.7” |
| Lens size: | 2.8 |
| Lens type: | Fixed |
| Viewing angle: | 97° |
| Auto electronic shutter: | 1/5 - 1/20000 s |
| Scanning system: | Progressive CMOS |
| Frames per second: | 20 fps (@5MP) |
| Baud rate: | 8Kbps – 8Mbps |
| Max. IR distance: | 30m |
| Auto gain control: | Auto |
| Audio: | Microphone |
| Communication protocol: | ONVIF |
| Interface: | RJ45 10M/100M Ethernet, 2.1 x 5.5mm DC Socket |
| ONVIF compliant: | Yes |
| Network functions: | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Network monitoring: | Web browser, Client Software, Android & iOS |
| eSATA connection: | RJ45 10M/100M Ethernet, 2.1 x 5.5mm DC Socket |
| Ingress protection: | IP66 |
| Operating temperature: | -30 to +60°C |
| Relative humidity resistance: | <95% (non-condensing) |
| Warranty: | 3 years |
