Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
ESP HDview IP 5MP 1.1mm Fisheye Lens Dome Camera White (HDVIPC11FDW)
SKU
HDVIPC11FDW
ESP HDview IP 5MP 1.1mm Fisheye Lens Dome Camera White (HDVIPC11FDW)
Discontinued
Alternative Products
Product Details for ESP HDview IP 5MP 1.1mm Fisheye Lens Dome Camera White (HDVIPC11FDW)

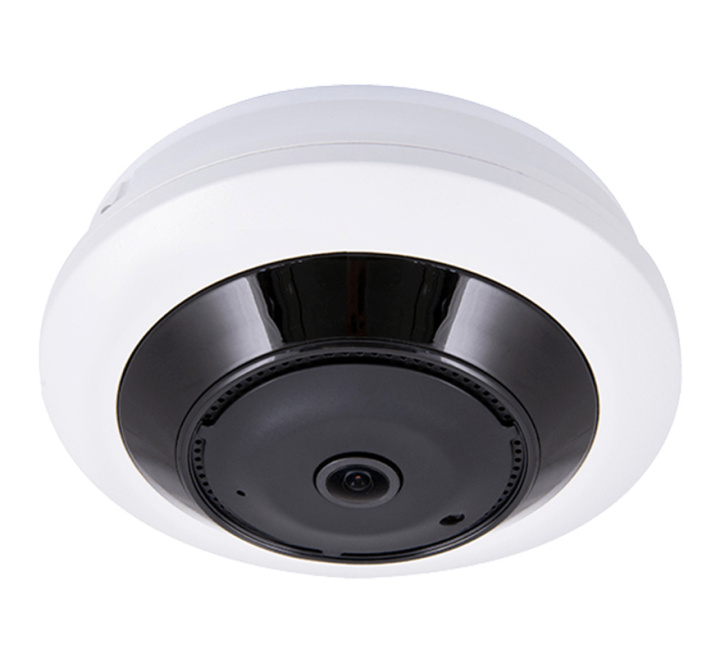

The ESP HDVIPC11FDW is a 5MP (2160 x 2160p), white, IP dome camera with a 1.1mm fisheye lens, 12VDC/PoE power and an IR distance of 5m. Suitable for day and night. Compatible with NVR Models HDVIP16R, HDVIP32R only as well as PC viewing. IP64 housing ingress protection.
Key Features of the HDVIPC11FDW |
|---|
|
> HD 5MP Resolution
> 1.1mm Fisheye Lens > 1/2.9” Image Sensor > 5m Infrared LED Illumination > 360° Viewing Angle > ONVIF Compliant > IP66 Housing Ingress Protection > Suitable for NVR Models HDVIP16R, HDVIP32R only and PC viewing |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | HDVIPC11FDW |
FAQ’s for ESP HDview IP 5MP 1.1mm Fisheye Lens Dome Camera White (HDVIPC11FDW)
No questions yet. Be the first to ask the question!
Product Specification for ESP HDview IP 5MP 1.1mm Fisheye Lens Dome Camera White (HDVIPC11FDW)
| Code: | HDVIPC11FDW |
| Description: | ESP 1.1mm Fisheye Lens IP Dome Camera - White |
| Dimensions: | Dia:120mm x 55mm |
| Compatible products: | Compatible with HDVIP16R & HDVIP32R |
| Accessories: | IPIN1POE: 1 Channel POE Injector IPSW4POE: 4 Channel POE Switch IPSW8POE: 8 Channel POE Switch IPX100POE: 100m PoE Extender CABIP10 : 10m CAT-5e External Use Data Cable CABIP20: 20m CAT-5e External Use Data Cable CABIP40: 40m CAT-5e External Use Data Cable CABIP80: 80m CAT-5e External Use Data Cable Compatible with the range of HDView IP Network Video Recorders (NVRs) |
| Finish: | White |
| Operating voltage: | 12 VDC |
| Power consumption: | ≤ 5W |
| Other power sources: | PoE (802.11af) |
| B & W Illumination: | 0.1 Lux min. |
| Effective pixels: | 5MP (2160 x 2160) |
| Sensor size: | 1/2.9“ |
| Lens size: | 1.1mm |
| Lens type: | Fixed |
| Viewing angle: | 360° |
| Auto electronic shutter: | 1/5 - 1/20000 s |
| Alarm: | I/O |
| Max. IR distance: | 5m |
| Video out: | CVBS |
| Audio: | Microphone |
| Communication protocol: | ONVIF |
| Interface: | RJ45 10M/100M Ethernet, 2.1 x 5.5mm DC Socket |
| ONVIF compliant: | Yes |
| Network functions: | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Network monitoring: | Web browser, Client Software, Android & IOS |
| Recording storage: | Micro SD card |
| eSATA connection: | RJ45 10M/100M Ethernet, 2.1 x 5.5mm DC Socket |
| Ingress protection: | IP66 |
| Operating temperature: | -30 to +55°C |
| Storage temperature: | -30 to +60°C |
| Warranty: | 3 years |
| Weight: | 0.4 kg |
