Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
ESP Rekor IP PoE 4-Channel 2MP 4 x Bullet Camera Kit 1TB Grey (REKIP4KB4G)
SKU
REKIP4KB4G
ESP Rekor IP PoE 4-Channel 2MP 4 x Bullet Camera Kit 1TB Grey (REKIP4KB4G)
Alternative Products
Product Details for ESP Rekor IP PoE 4-Channel 2MP 4 x Bullet Camera Kit 1TB Grey (REKIP4KB4G)

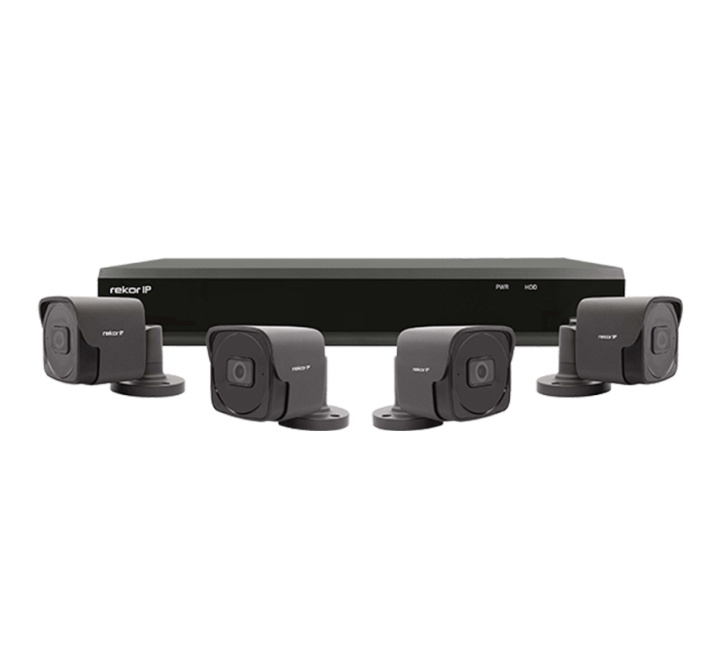

The ESP REKIP4KB4G is a CCTV system in a box. The kit comprises 1 x 4-Channel Network Video Recorder (NVR) with an internal HDD of 1TB and 4 x 3.6mm Fixed Lens IP Bullet Cameras in a grey finish. Includes cables and system power supply.
Key Features of the REKIP4KB4G |
|---|
| > Complete with NVR, IP Cameras, Cable & System Power Supply > HD 2MP Resolution Viewing and Recording > 4CH POE NVR- Power Over Ethernet > 4 x 2MP, Day/ Night, Weatherproof, Bullet Style IP Cameras > H.265 Video Compression for Efficient Storage > Pre-Installed 1TB Premium Surveillance Hard Drive > Remote Monitoring via APP (Android / IOS) or PC > Playback / Record / Remote View Simultaneously > Continuous / Scheduled / Motion Record Modes > USB Backup for Evidence Transfer > Mouse Driven User Menu > Contents: NVR (HDD inc.), 2 x IP Cameras, 2 x 18.3 Meter Pre-terminated Network Cable, System Power Supply, Manual, HDMI Lead, Mouse Control |
| Brand | Elite Security Products |
|---|---|
| Manufacturer Part No. | REKIP4KB4G |
FAQ’s for ESP Rekor IP PoE 4-Channel 2MP 4 x Bullet Camera Kit 1TB Grey (REKIP4KB4G)
No questions yet. Be the first to ask the question!
Product Specification for ESP Rekor IP PoE 4-Channel 2MP 4 x Bullet Camera Kit 1TB Grey (REKIP4KB4G)
| Code: | REKIP4KB4G |
| Description: | ESP 4 Channel 1TB NVR with 4x 2MP Bullet Camera CCTV IP Kit |
Component 1: 4 Channel Full 2MP 1TB HDD IP NVR x 1 | |
| Dimensions: | 300mm x 227mm x 53mm |
| Operating voltage: | 48 VDC (1.2A) |
| Power consumption: | <7W (without hard disk) |
| Other power sources: | PoE (IEEE802.3af) |
| Display video output: | 1 x HDMI & 1 x VGA |
| Display split: | 1 & 4 |
| Display resolutions: | 1024x768, 1280×720, 1280×1024, 1440×900, 1920×1080, 1080x1440, 3840x2160 |
| Sync playback: | 2 MP |
| Backup mode: | Network/USB2.0 devices |
| Operating system: | LINUX |
| Internal HDD: | 1 TB (1 x SATA) |
| Recording bandwidth: | 50 Mbps |
| Video/Audio compression: | H.264/H.265 Selectable |
| Recording resolution: | 2MP |
| Record rate (main stream): | 4 Channels @ 2MP |
| Recording mode: | Manual/Motion Detection/Schedule |
| Network rate: | 10/1000 Mbps |
| Network connection: | Ethernet RJ45 Port |
| Network functions: | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP |
| Network monitoring: | Web browser, Client Software, Android & IOS |
| PoE channels: | 4 (<100 Metres Per Channel) |
| Video input channels: | 4 |
| Audio output channels: | 1 |
| Operating temperature: | 0 to +55°C |
| Relative humidity resistance: | 10 to 90% |
Component 2: 3.6mm Fixed Lens IP Bullet Camera x 4 | |
| Dimensions: | Ø71 x 138 |
| Finish: | Grey |
| Sensor size: | 1/2.7” Progressive CMOS |
| Lens size: | 3.6mm |
| Effective pixels: | 2MP (1920 x 1080) |
| IR Distance: | 30m |
| Operating voltage: | 12 VDC |
| Power consumption: | ≤ 7 |
| Other power sources: | PoE (IEEE802.3af) |
| Lens type: | Fixed |
| Viewing angle (°): | 88 |
| Reset key: | No |
| ONVIF compliant: | Yes |
| Network functions: | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Network monitoring: | Web Browser, Client Software, Android & iOS |
| Ingress protection: | IP66 |
| Operating temperature: | -30 to +55°C |
| Weight: | 0.25 kg |
Component 3: 18.3m IP Cables x 4 | |
| Materials: | Solid Bare Copper Center Conductor Foam Polyethylene Dielectric PVC Jacket |
| Finish: | Black |
| Length: | 18.3m |
| Category: | CAT-5e |
| Cores: | Twisted 4-pair |
| Pre-wired: | Yes |
| Shielded: | Yes |
| Terminated connections: | RJ45 x 2 |
| Warranty: | 3 years |
| Supplied: | 2 x 18.3 Metre Twisted 2-Pair CAT-5e Cables, Internal Grade, Black System Power Supply & Power Lead Software CD Manual HDMI Lead Mouse Control Remote Control (Batteries included) |
| Accessories: | IPCDBG: IPC Deep Base - White IPIN1POE: 1 Channel POE Injector IPSW4POE: 4 Channel POE Switch IPSW8POE: 8 Channel POE Switch CABIP10:10m CAT-5e External Use Data Cable CABIP20: 20m CAT-5e External Use Data Cable CABIP40: 40m CAT-5e External Use Data Cable CABIP80: 80m CAT-5e External Use Data Cable CABIPCOUP: RJ45 CAT-5e Data Cable Coupler |
