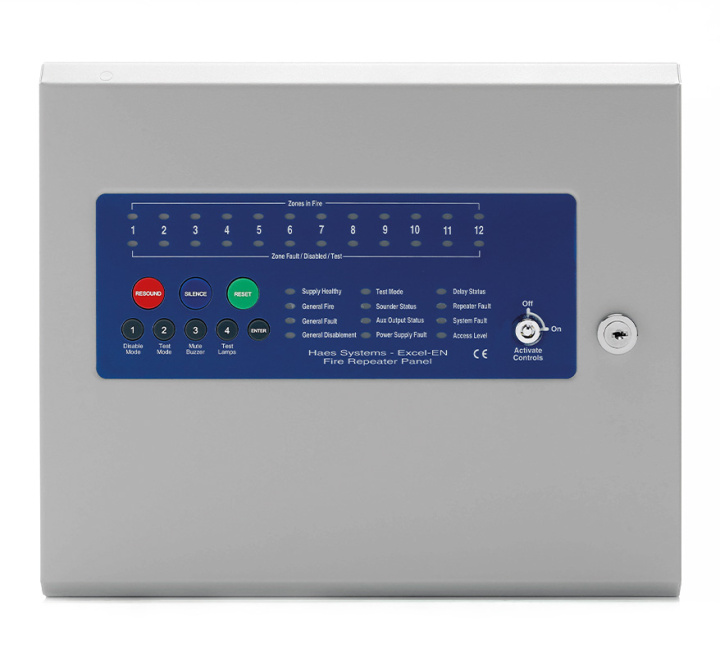

HAES Esento 12 Zone Fully Functional / Passive Repeater Panel (XLEN-R-12)
SKU
XLEN-R-12
£317.81 £264.84
HAES Esento 12 Zone Fully Functional / Passive Repeater Panel (XLEN-R-12)
Product Details for HAES Esento 12 Zone Fully Functional / Passive Repeater Panel (XLEN-R-12)
The HAES XLEN-R-12 Esento 12 zone repeater panels have the same, easy to use, controls and indications as the main control panel.
The repeaters are fully functional with ‘Silence’, ‘Resound’ and ‘Reset’ controls, as well as Disable and Test Mode functions. It is also possible to disable the controls for each or all repeater panels to make them passive (indication only).
The main circuit board has 2, switch –ve, inputs which can be used to sound or pulse the alarms. These inputs can also be re programmed for use as PSU fault inputs.
The internal comms PCB has 6, switch –ve, programmable outputs.
The repeaters are supplied with a 1.25 amp internal power supply module. This module complies with the requirements of EN54-4 : 1988 and provides temperature compensated battery management charging.
Please Note: These repeater panels are not suitable for the Eclipse model control panels.
Key Features of the XLEN-R-12 |
|---|
| > 12 zonal fire and fault indications > Activate controls via key switch or code entry > 1.25 Amp switch mode power supply Nom 27V DC > Class change I/P > Alert I/P > 6 programmable switched -ve outputs > Test mode, with or without sounders > Disable zones, sounder O/Ps, aux O/Ps & delays |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | XLEN-R-12 |
| Product Range / Series | Esento |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional/2-Wire |
| Number of Zones | 12 |
| Colour | Grey |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Esento 12 Zone Fully Functional / Passive Repeater Panel (XLEN-R-12)
No questions yet. Be the first to ask the question!
Product Specification for HAES Esento 12 Zone Fully Functional / Passive Repeater Panel (XLEN-R-12)
| Enclosure | 1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat |
| Cable Entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 300mm W x 250mm H x 80mm D, Lid: 308mm W x 260mm H x 23mm D |
| Mains Supply | 1.25A internal switch mode power supply, Nom 27v DC |
| Battery Capacity | 2 x 3.2Ah 12v VRSLA |
| Outputs | 6 x programmable sw -ve outputs (included on network card) |
| Switch Inputs | Class change & alert (pulsing) |
| Communication Wiring | Fault tolerant wiring requires 4 core (min 1.5mm) fireproof cable. Legacy radial wiring requires 2 core (min 1.5mm) fireproof cable |
