Siemens DBS728 Cerberus PRO EN54-23 Addressable Interbase VAD - C-3-5 (Requires Detector Base DB721) (S54372-F14-B1)
SKU
S54372-F14-B1
£105.55 £87.96
Siemens DBS728 Cerberus PRO EN54-23 Addressable Interbase VAD - C-3-5 (Requires Detector Base DB721) (S54372-F14-B1)
Product Details for Siemens DBS728 Cerberus PRO EN54-23 Addressable Interbase VAD - C-3-5 (Requires Detector Base DB721) (S54372-F14-B1)

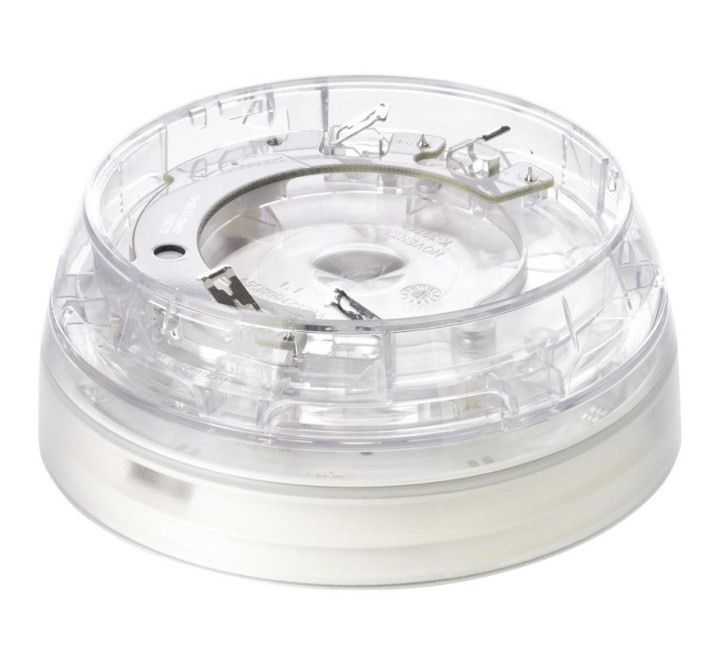

Siemens Sounder Beacon Interbase (C-NET). DBS728 serves for alarming in the addressed FS720 fire system. In case of a fire alarm, the base triggers an acoustic signal as well as an optical alarming (via LEDs). (S54372-F14-B1)
Requires detector base DB721.
Key Features of the S54372-F14-B1 |
|---|
| > In event of alarm, activates both an acoustic and optical signal (white LEDs flash) > 13 tones to choose from, 2 programmable alarm levels > Adjustable sound levels up to 93 dBA > White LEDs with two adjustable luminous intensities: Light/high (Class 'C-3-5'); dark/low (Class 'O-1.5-2.4') , EN 54-23 > For recess mounting > For surface mounting, cable diameter up to 8mm > Addressed (C-NET) > Adjustable sound levels up to 89 dBA > Compatible with all addressable Cerberus point detectors > Supply and communication via C-NET, no auxiliary supply required > Integrated line separator > Protected electronics and high-quality components > Eco- and environmentally friendly > If a point detector is not used, then cover plate BP720 (accessory) can be mounted > For use in hotel rooms, restrooms and offices |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | DBS728 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens DBS728 Cerberus PRO EN54-23 Addressable Interbase VAD - C-3-5 (Requires Detector Base DB721) (S54372-F14-B1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens DBS728 Cerberus PRO EN54-23 Addressable Interbase VAD - C-3-5 (Requires Detector Base DB721) (S54372-F14-B1)
| Product: | Siemens DBS728 Sounder Beacon Interbase |
| Product code: | S54372-F14-B1 |
| Dimensions: | Diameter:128mm x H:52mm |
| Standard: | EN 54-3, type A , EN 54-17 , EN 54-23, type A, category C and O |
| Protection category: | IP21C with interbase seal and point detector; IP21C with interbase seal and blanking plate |
| Operating voltage: | 12 - 33V DC |
| Operating temperature: | -25 to 55 °C |
| Storage temperature: | -30 to +75 °C |
| No. of sounds | 13 |
| Quiescent current: | 250 μA max. |
| Relative humidity: | ≤95 % rel. |
| Sound intensity: | 77 to 93 dB (A) |
| Light intensity: | C-3-5 or O-1.5-2.4 |
| Communication protocol: | C-NET |
| System compatibility: | C-NET -> FC720 |
| Cable capacity: | 0.2 - 1.6mm2 |
| Colour: | Pure white (RAL9010) / Translucent |
| Weight: | 0.232 kg |
