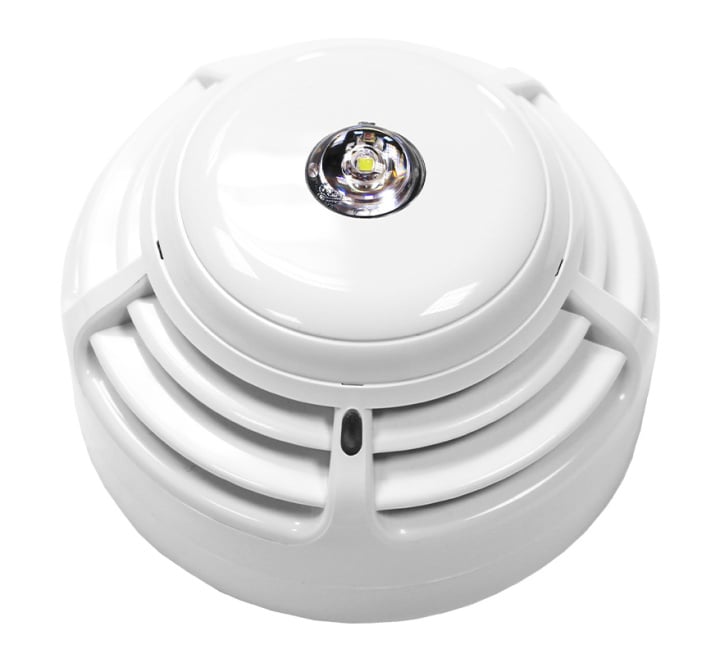

EMS SmartCell Wireless Dual Smoke/Heat Detector with Sounder VAD (Red Flash) (SC-23-0210-0001-99)
SKU
SC-23-0210-0001-99
£275.62
£229.68
EMS SmartCell Wireless Dual Smoke/Heat Detector with Sounder VAD (Red Flash) (SC-23-0210-0001-99)
In Stock
Product Details for EMS SmartCell Wireless Dual Smoke/Heat Detector with Sounder VAD (Red Flash) (SC-23-0210-0001-99)
The SmartCell SC-23-0210-0001-99 Dual Smoke / Heat Detector With Sounder and VAD (Red Flash) is quick and easy to install and offers individual addressing at the SmartCell Control Panel.
Features include dual smoke and/or heat detection, integrated sounder with 32 tones, bidirectional 868 MHz communication, fire indication LED and an anti-tamper locking mechanism.
This device is third party certified and compatible with the full SmartCell product range.
Key Features of the SC-23-0210-0001-99 |
|---|
|
> Fully wireless
> Quick and easy to install > Compact profile > Flexible detection; smoke and/or heat > 32 sounder tones > Includes part 23 beacon > Unique design > Inbuilt locking mechanism |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | SC-23-0210-0001-99 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | SmartCell |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for EMS SmartCell Wireless Dual Smoke/Heat Detector with Sounder VAD (Red Flash) (SC-23-0210-0001-99)
No questions yet. Be the first to ask the question!
Product Specification for EMS SmartCell Wireless Dual Smoke/Heat Detector with Sounder VAD (Red Flash) (SC-23-0210-0001-99)
| Wireless frequency | 868 MHz |
| Compatibility | SmartCell |
| Batteries | 3 x ER14505M 3.6 V lithium thionyl chloride batteries (Fanso or Titus) |
| Sounder | |
| Output level | 93 dB(A) at 1 m max. |
| Output level adjustment | High or low |
| Selectable tones | 32 |
| VAD | |
| Colour | Red |
| Rating | C-3-9.5 |
| Flash frequency | 0.5 Hz (1 flash, every 2 seconds) |
| Physical dimensions | 110 x 58 mm (Ø x D) |
| Net weight | 0.2 kg |
| Colour | White |
| Mounting type | Ceiling mount |
| Operating temperature | -10 to +55°C |
| Storage temperature | -10 to +30°C (with batteries) |
| -10 to +55°C (without batteries) | |
| Relative humidity | 95% noncondensing max. |
| Environment | Indoor |
| IP rating | IP21C |
| Compliance | CE |
| Certification | CPR |
| Standards | EN54-3 EN54-5 EN54-7 EN54-13 EN54-23 EN54-25 |
| Sensitivity | Smoke: Normal, Normal+AVF. Heat: 58 °C, static (A2S), 58 °C rate of rise (A2R), 72 °C static (BS), 72 °C rate of rise (BR) |
