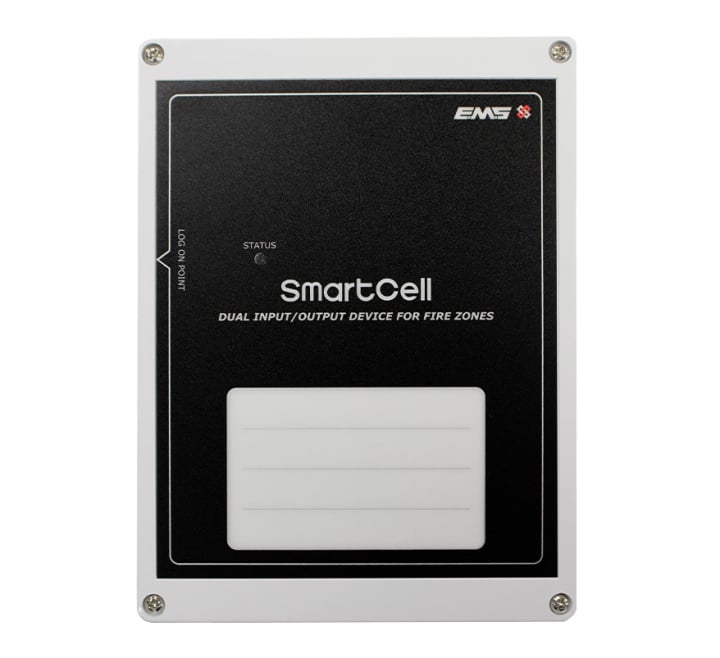

EMS SmartCell Wireless Dual Input/Output Device for Fire Zones (SC-41-0200-0001-99)
SKU
SC-41-0200-0001-99
£162.78
£135.65
EMS SmartCell Wireless Dual Input/Output Device for Fire Zones (SC-41-0200-0001-99)
In Stock
Product Details for EMS SmartCell Wireless Dual Input/Output Device for Fire Zones (SC-41-0200-0001-99)
The SmartCell SC-41-0200-0001-99 Input / Output Device is quick and easy to install and offers individual addressing at the SmartCell Control Panel.
Features include two resistor monitored inputs, two voltage-free outputs and bidirectional 868 MHz communication.
This device is third party certified and compatible with the full SmartCell product range.
Key Features of the SC-41-0200-0001-99 |
|---|
|
> Full wireless communication with panel
> Quick and easy to install > Two resistor monitored inputs > Two voltage free outputs > For connection to remote fire devices |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | SC-41-0200-0001-99 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | SmartCell |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for EMS SmartCell Wireless Dual Input/Output Device for Fire Zones (SC-41-0200-0001-99)
No questions yet. Be the first to ask the question!
Product Specification for EMS SmartCell Wireless Dual Input/Output Device for Fire Zones (SC-41-0200-0001-99)
| Wireless frequency | 868 MHz |
| Input | |
| Input quantity | 2 |
| Input type and rating | Resistor monitored inputs |
| Output | |
| Output quantity | 2 |
| Output type and rating | Voltage free outputs, rated 1 A at 30 VDC |
| Physical dimensions | 150 x 200 x 55 mm (W x H x D) |
| Net weight | 0.45 kg |
| Mounting type | Wall mount |
| Batteries | 3 x ER14505M 3.6 V lithium thionyl chloride batteries (Fanso or Titus) |
| Operating temperature | -10 to +55°C |
| Storage temperature | -10 to +30°C (with batteries) |
| -10 to +55°C (without batteries) | |
| Relative humidity | 95% noncondensing max. |
| Environment | Indoor |
| Compliance | CE |
| Certification | CPR |
| Standards | EN54-13 EN54-18 EN54-25 |
