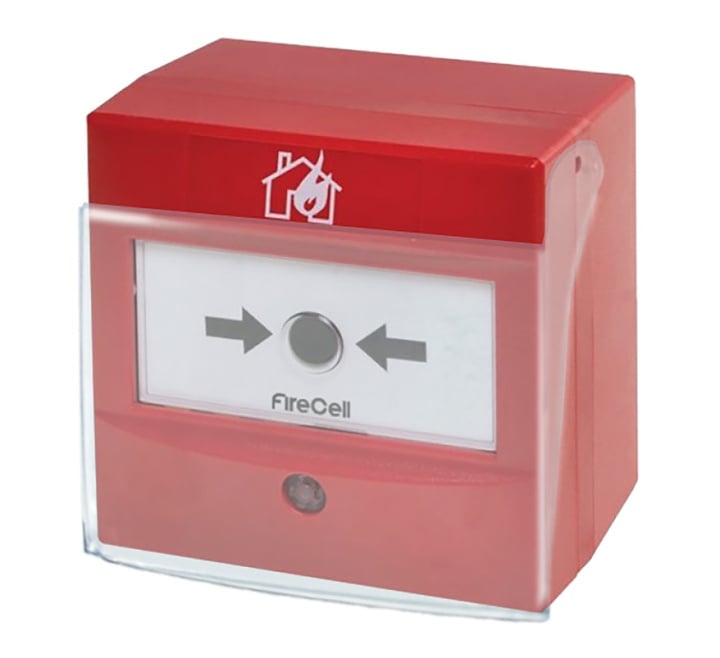

EMS FireCell Wireless Manual Call Point (Apollo Style) (FC-200-003)
In Stock
Product Details for EMS FireCell Wireless Manual Call Point (Apollo Style) (FC-200-003)
The FireCell FC-200-003 is a red addressable, wireless, resettable manual call point designed for indoor use. It connects seamlessly to a Fusion or Ziton gateway and includes batteries with a minimum life expectancy of three years. This device is quick and easy to install, offering individual addressing at the fire control panel.
Featuring dual band 868 MHz operation, auto-adjusting power output, and a fire indication LED, the FC-200-003 ensures reliable performance in emergency situations. It also includes a transparent hinged cover to protect against accidental activation in busy environments, making it ideal for various applications.
Certified by third-party EN standards, the FC-200-003 is compatible with the EMS FireCell system, EMS Fusion Radio Loop Module (RLM), EMS Wireless Zone Monitor (WZM), and Ziton ZPR868 series wireless interfaces.
Key Features of the FC-200-003 |
|---|
|
> Quick and easy installation
> Individual addressing at the fire control panel > Auto adjusting power output > Fire indication LED > Resettable element > Anti tamper locking mechanism > Transparent hinged cover for protection > Compatible with various EMS and Ziton systems |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FC-200-003 |
| Product Series | FireCell |
| Primary Power Source | Replaceable Batteries (Alkaline) |
| System Type | Wireless |
| Protocol Compatibility | EMS FireCell |
| Colour | Red |
FAQ’s for EMS FireCell Wireless Manual Call Point (Apollo Style) (FC-200-003)
Product Specification for EMS FireCell Wireless Manual Call Point (Apollo Style) (FC-200-003)
- Status Indication LED : Yes
- Wireless Frequency : 868 MHz
- Compatibility : Fusion Gateway FCX-532-001, Ziton Gateways ZPR868 Series
- Connectivity : Wireless
- Addressing Method : Electronic
- Power Supply Type : Batteries
- Batteries : 6x AA Alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial)
- Operating Voltage : 2.8 to 5 VDC
- Output Transmitter Power : 0 to 25 mW, 0 to 14 dBm (auto adjusting)
- Detection Principle : Microswitch
- Monitoring : Device Type, Presence, Tamper
- Coverage Area : Dependent on Local Regulations
- Installation Height : Determined by Local Regulation
- Physical Dimensions : 90 x 98 x 72.5 mm (W x H x D)
- Net Weight : 350 g
- Colour : Red
- Mounting Type : Wall Mount
- Material (Body) : ABS
- Operating Temperature : -10 to 55°C
- Storage Temperature : +5 to +30°C
- Relative Humidity : 0 to 95% Noncondensing
- Environment : Indoor
- IP Rating : IP24
- Compliancy : CE, REACH, RED (2014/53/EU), RoHS 3, WEEE
- Certification : CPR
- Standards : EN54-11, EN54-25
