EMS FireCell Wireless Dual Input / Output Unit (FC-610-001)
SKU
FC-610-001
£225.50
£187.92

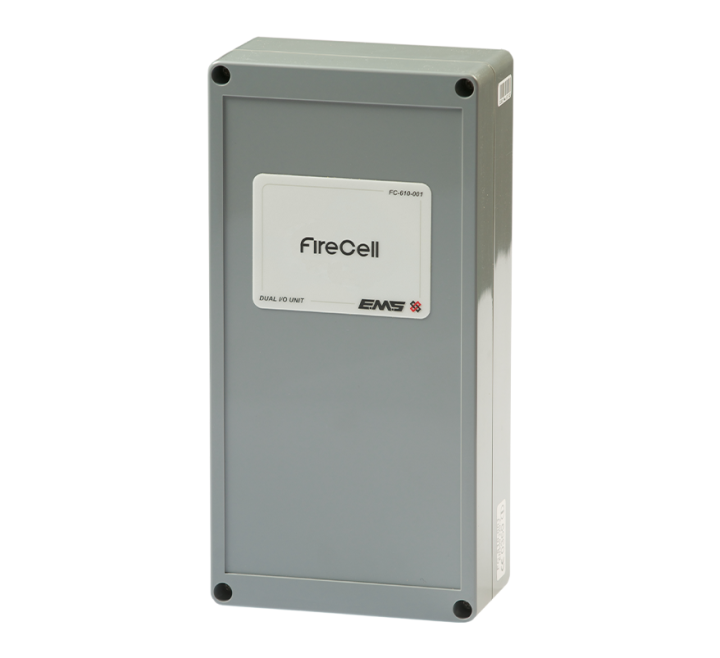

EMS FireCell FC-610-001 Wireless Dual Input / Output Unit
Limited Stock
Product Details for EMS FireCell Wireless Dual Input / Output Unit (FC-610-001)
The EMS FireCell FC-610-001 Wireless Input Output unit is quick and easy to install and offers individual addressing at the Fire Control Panel. Features include; two supervised inputs and two voltage free outputs rated 2A@24V, whilst using only one address on the system.
This device is third party EN certified and compatible with the EMS FireCell system, EMS Fusion Radio Loop Module (RLM) and EMS Wireless Zone Monitor (WZM). A 230Vac switching Auxiliary Relay Module is also available, for use in conjunction with this device.
Key Features of the FC-610-001 |
|---|
|
> Wireless input/output unit
> Dual band 868MHz operation > 2 supervised inputs > 2 voltage free outputs, rated 2A @ 24V > Optional 230Vac switching Auxiliary Relay Module available > EN54-18 & EN54-25 certified |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FC-610-001 |
Write Your Own Review
FAQ’s for EMS FireCell Wireless Dual Input / Output Unit (FC-610-001)
No questions yet. Be the first to ask the question!
Product Specification for EMS FireCell Wireless Dual Input / Output Unit (FC-610-001)
| Dimensions: |
W:120mm x H:240mm x D:60mm |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance |
6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial) |
| Operating frequency: |
868 MHz |
| Output rating: | 2A @ 24V dc |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP rating: | IP65 |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Location: | Type A: for indoor use |
| Weight: |
0.95 kg |
