EMS FireCell Wireless Door Control - Black (FC-60-2000)
SKU
FC-60-2000
£179.02 £149.18

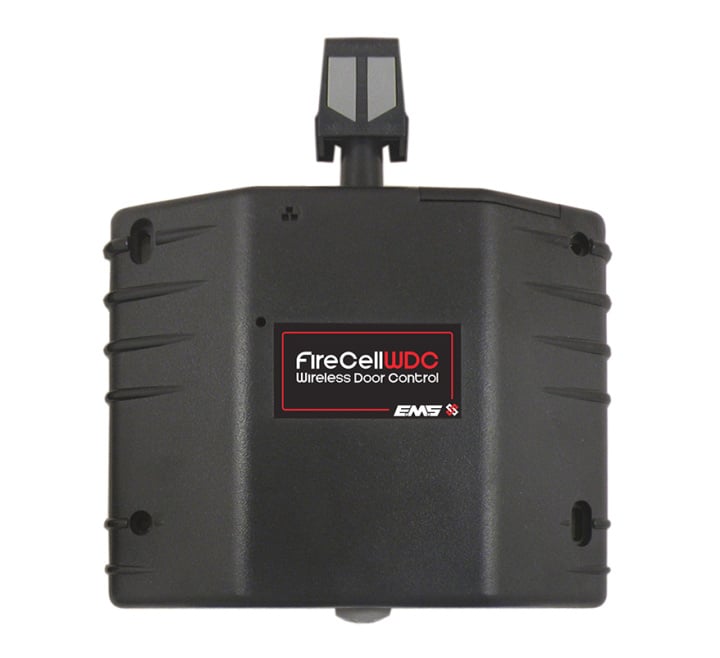

EMS FireCell FC-60-2000 Wireless Door Control (Black)
- Buy 10 for £170.76 £142.30 each and save 5%
The EMS FireCell FC-60-2000 is a black wireless door retainer that is quick and easy to install and offers full FireCell system integration. FireCell WDC holds heavy fire doors open, improving building ventilation and automatically releases them in the event of a fire.
FireCell WDC includes robust FireCell wireless operation, industry-proven mechanics and the ability to individually test each device. Benefits don’t stop there as it can also be included within phased evacuation plans via system cause and effects.
FireCell WDC is third-party EN certified and is compatible with the EMS FireCell system, EMS Fusion Radio Loop Module (RLM) and EMS Wireless Zone Monitor (WZM).
| Key Features |
|---|
| > Black wireless door retainer > Compatible with EMS FireCell system, RLM & WZM > Holds heavy fire doors open > Automatically closes in event of fire > Quick and easy to install > Combines proven mechanics with renowned wireless FireCell system operation > Provides full health monitoring via system integration > Can be included in phased evacuation plans, via system cause and effects > 160kg max door weight > EN54-25, EN1155 & BS7273-4 (cat B) |
| Manufacturer | EMS |
|---|---|
| MPN | FC-60-2000 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Dimensions: | W:195mm x H:205mm x D:45mm |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance | 2 x C alkaline (Panasonic LR14AD Powerline / Varta 4014 Industrial) |
| Operating frequency: | 868 MHz |
| Supply voltage: | 2.22 - 3.3 V dc |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| Signalling protocol: | X2 |
| Current consumption: | 60μA |
| Max. hold open power size: | 7 |
| Max. door leaf width: | 1600mm |
| Max. test door mass: | 160kg |
| Max. overload test drop weight: | 36kg |
| Max. test door friction: | 0.8 Nm |
| Min. angle between door open: | 66o |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Location: | Type A: for indoor use |
| Weight: | 0.5 kg |
| Note: FireCell WDC is not for use on metal doors | |
