EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
SKU
FC-60-1000
£113.38
£94.48
EMS FireCell FC-60-1000 Universal PSU for Radio Cluster Communicator (RCC)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)

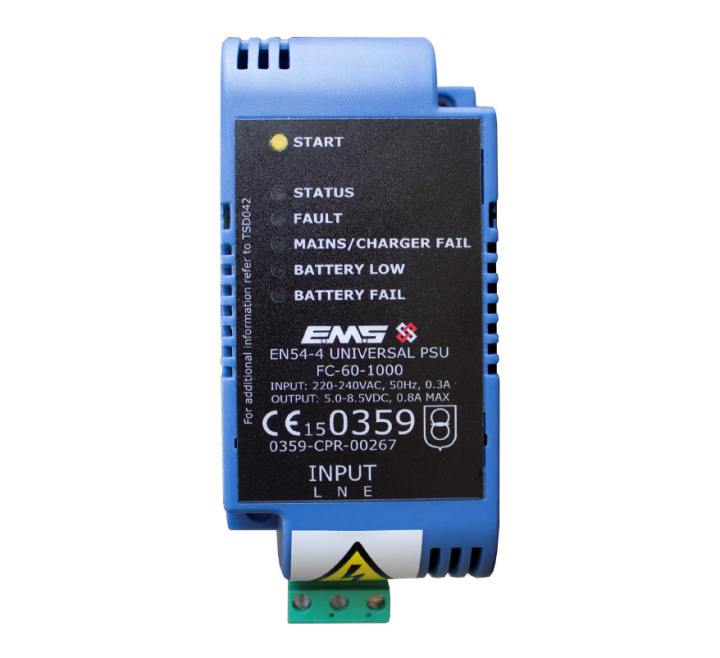

The EMS FireCell FC-60-1000 is a 6vDC Universal Power Supply Unit (PSU) for use with the FireCell Radio Cluster Communicator (RCC).
Key Features of the FC-60-1000 |
|---|
|
> FireCell Universal Power Supply Unit (PSU)
> 6v DC output voltage to the Radio Cluster Communicator PCB > Use with FireCell Radio Cluster Communicator (RCC) > Provides the Radio Cluster Communicator with a 72 hour standby time > Mounting possible in either orientation to allow mains entry from the left or right-hand side of the product. |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FC-60-1000 |
Write Your Own Review
FAQ’s for EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
No questions yet. Be the first to ask the question!
Product Specification for EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
| Operating Temperature | -10˚c to 50˚c (ambient) |
| Power Requirements | Mains Powered 220-240V AC |
| Min/Max Electrical Ratings | Input: 220-240V AC, 50Hz, 0.3A Output Current: Imin 0.0 Amps, Imaxa 0.8Amps, Imaxb 0.8Amps |
| Input / Output Fuse Ratings | Input: T3.15A (Non replaceable) Output: 300mA and 750mA Max (Resettable) |
| Battery Backup | 1 x 6V 4Ah Yuasa NP4-6 FR, or 1 x 6V 4Ah Yucel Y4-6 |
| Battery Standby Time | 72 hours |
| Maximum Battery Internal Resistance | 0.7 Ohms |
| Maximum Current Drawn from the Battery by the PSE with Mains Disconnected | 5mA (PSU), plus 100mA (RCC PCB) |
| Dimensions | 53mm (W) 110mm (H) 39mm (D) |
| Weight | 150g |
